Starter Relay: Inspection

  1. INSPECT STARTER RELAY ASSEMBLY
    1. Check the starter relay resistance.
      1. Using an ohmmeter, measure the resistance between the terminals.

        Resistance

        TESTER CONNECTION AND SPECIFIED CONDITION

        Tester Connection Specified Condition
        3 - 5 10 kΩ or higher
        3 - 5 Below 1 Ω (Apply battery voltage to terminals 1 and 2)

        If the result is not as specified, replace the starter relay.

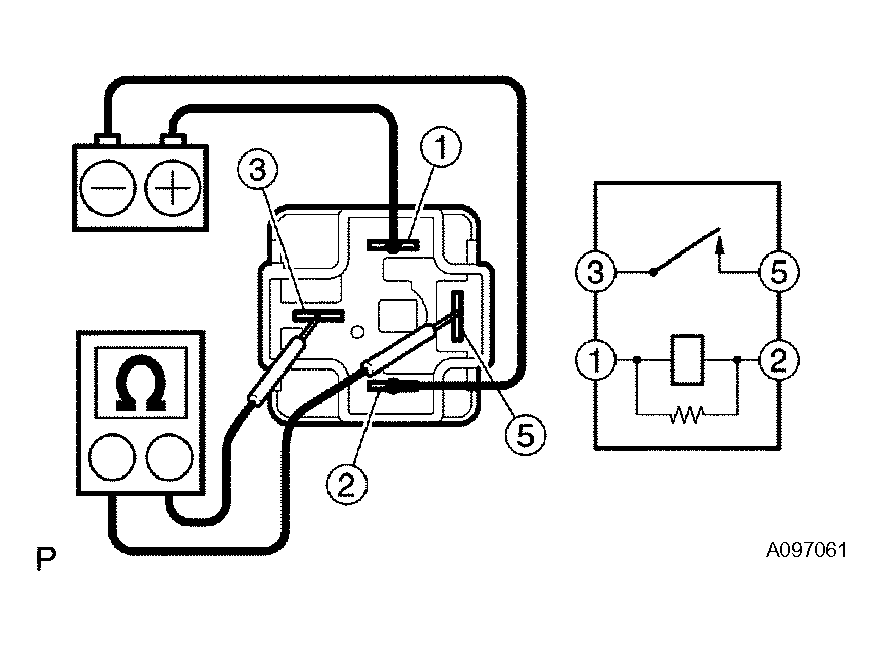

        Fig 1: Checking Starter Relay Resistance
        G04462437Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
