Transmission Control Cable: Removal

PRECAUTION
NOTE: Do not open the cover or the case of the ECU and various electrical devices unless absolutely necessary (If the IC terminals are touched, the IC may be destroyed by static electricity.).
DISCONNECT BATTERY NEGATIVE TERMINAL
REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY
REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY CTR (See REMOVAL )
REMOVE INSTRUMENT PANEL BOX (See REMOVAL )
REMOVE INSTRUMENT PANEL FINISH PANEL LOWER CENTER (See REMOVAL )
REMOVE AIR BAG SENSOR ASSEMBLY CENTER (See REMOVAL )
REMOVE EXHAUST PIPE ASSEMBLY
HINT:

(See REMOVAL )
REMOVE FRONT FLOOR HEAT INSULATOR NO.1
1. Remove the 3 nuts and heat insulator No. 1.
SEPARATE FLOOR SHIFT CABLE TRANSMISSION CONTROL SHIFT
1. Remove the clip, washer and disconnect the cable end of the shift cable from the shift lever assembly.

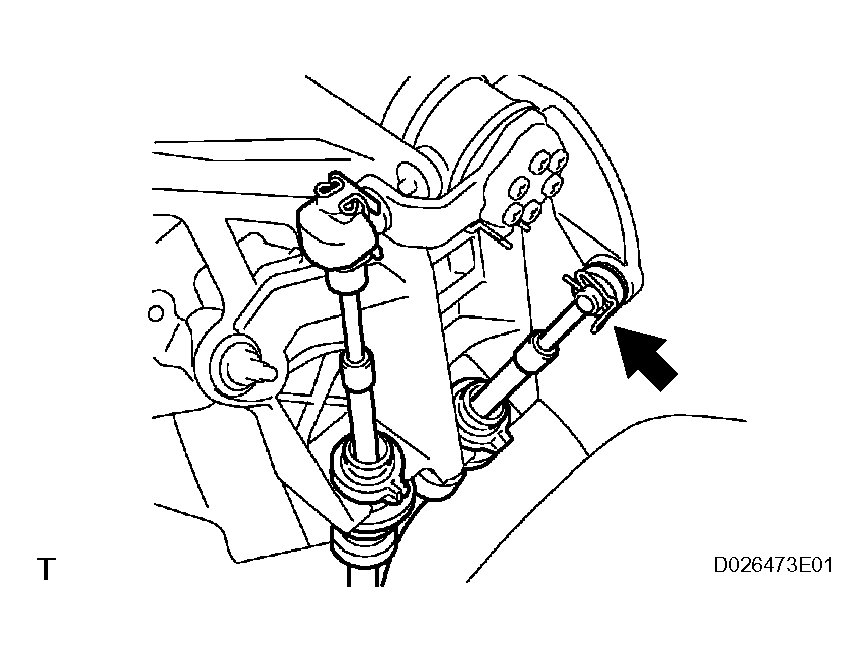

  Fig 1: Disconnecting Cable End Of Shift Cable From Shift Lever Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Turn the lock and disconnect the shift cable from the shift lever assembly.
3. Pull out the shift cable from the floor.

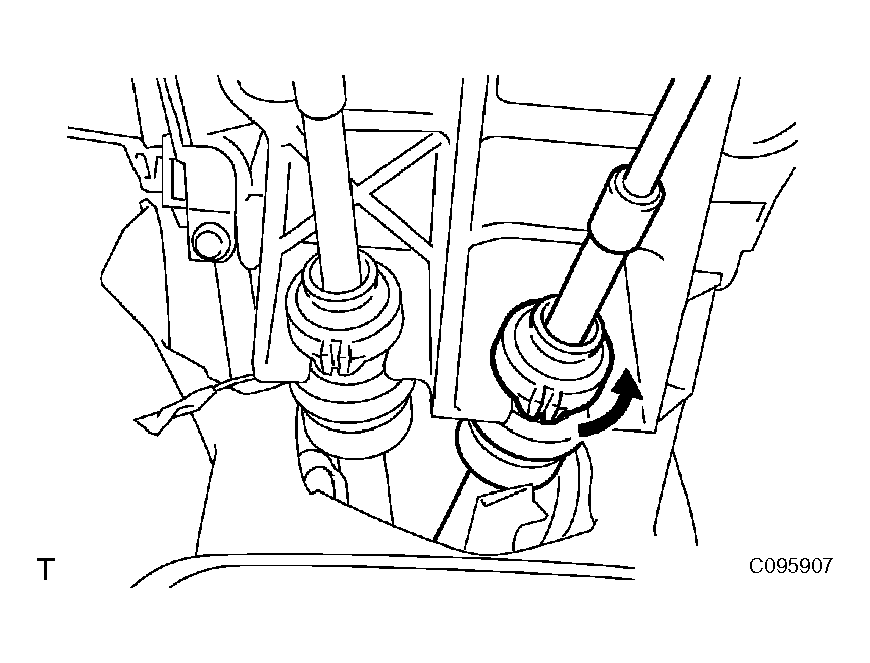

  Fig 2: Disconnecting Shift Cable From Shift Lever Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
SEPARATE FLOOR SHIFT CABLE TRANSMISSION CONTROL SELECT
1. Remove the clip and disconnect the cable end of the select cable from the shift lever assembly.

  Fig 3: Disconnecting Cable End Of Select Cable From Shift Lever Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Turn the lock and disconnect the select cable from the shift lever assembly.
3. Pull out the select cable from the floor.

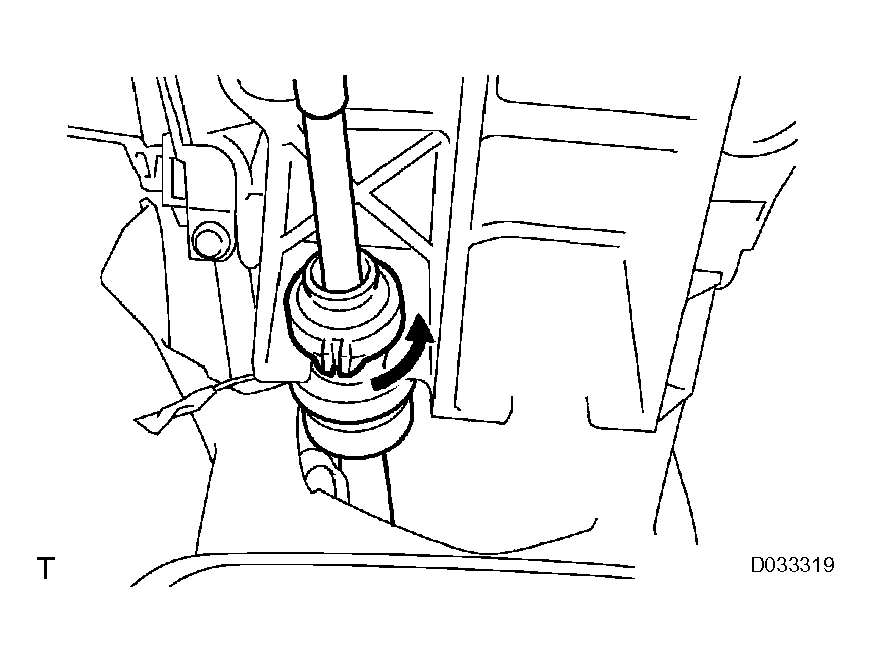

  Fig 4: Disconnecting Select Cable From Shift Lever Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE TRANSMISSION CONTROL CABLE ASSEMBLY
1. Remove the 2 clip, 2 washer and disconnect the cable end of the control cable assembly from the transaxle.
2. Remove the 2 clip and disconnect the control cable assembly from the bracket.

  Fig 5: Disconnecting Control Cable Assembly From Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 2 nuts and disconnect the control cable assembly.
4. Disconnect the control cable assembly from the clamp.

  Fig 6: Disconnecting Control Cable Assembly From Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Remove the 2 bolts from the retainer.
6. Pull out the control cable assembly from the floor.

  Fig 7: Removing Control Cable Assembly From Floor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. Remove the retainer from the grommet.

  Fig 8: Removing Retainer From Grommet
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
