Home >> Toyota >> 2006 >> Matrix Base, FWD, Standard >> Repair and Diagnosis >> Transmission >> Manual Trans >> Manual Transmission - C59 >> Output Shaft >> Components

Output Shaft: Components

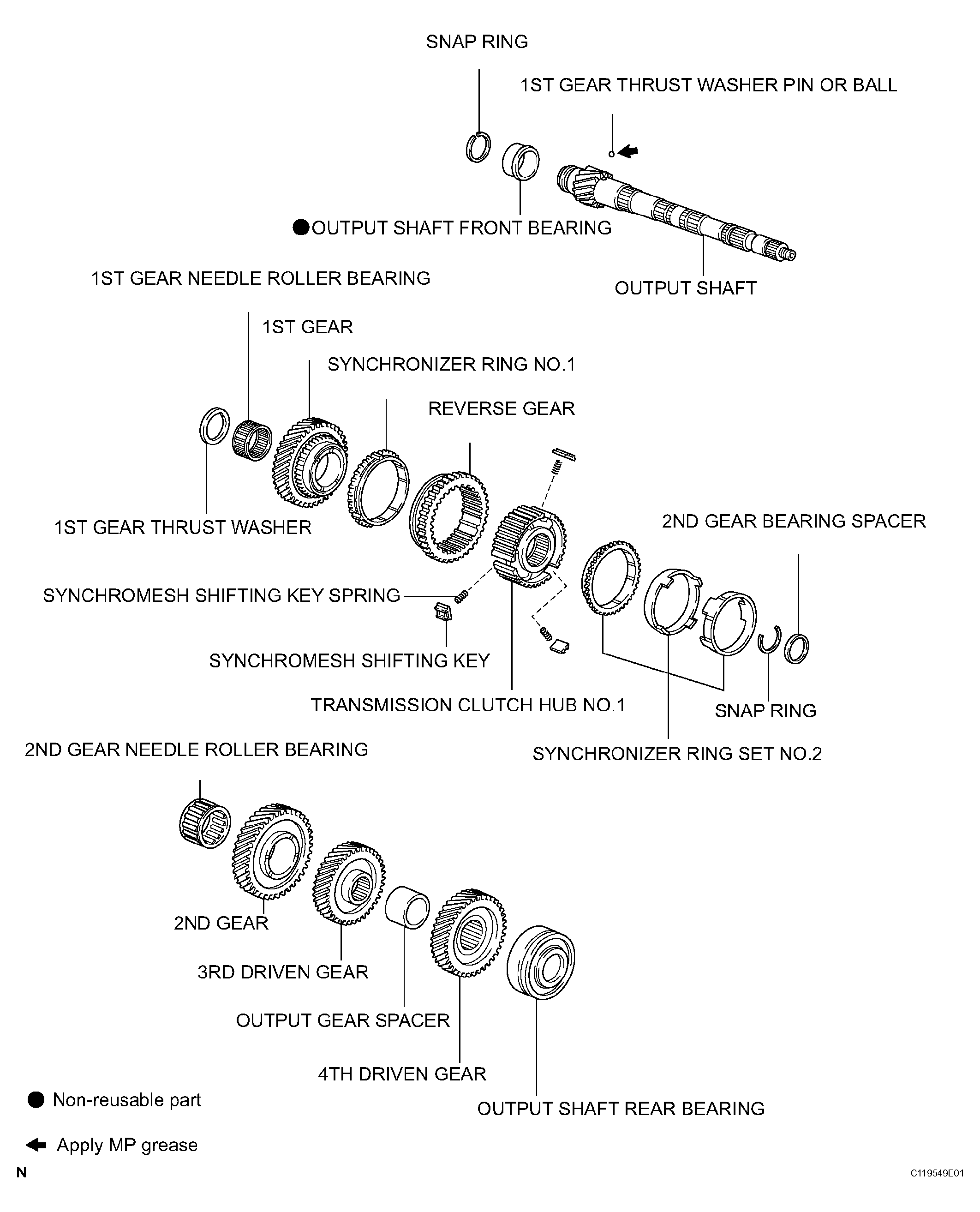

Fig 1: Identifying Output Shaft Components

G04464124

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
