Amplifier Antenna: Installation

INSTALL AMPLIFIER ANTENNA ASSEMBLY

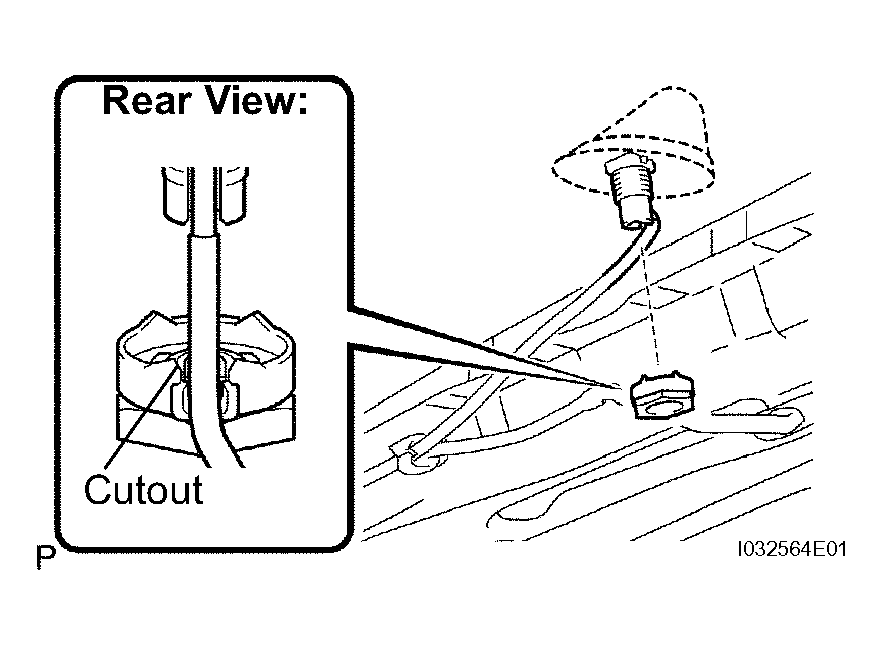

1. Set the amplifier antenna assembly to the hole on the roof, and place the antenna cord on the cutout on the antenna nut.

  Fig 1: Placing Antenna Cord On Cutout On Antenna Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the amplifier antenna assembly with the antenna nut.
  Torque: 4.5 N*m (46 kgf*cm, 40 in.*lbf)

  Fig 2: Installing Amplifier Antenna Assembly With Antenna Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the 4 clamps.
INSTALL ROOF HEADLINING ASSEMBLY
HINT:

Refer to the installation procedures of the roof headlining assembly (See REMOVAL ).
INSTALL ROOF ANTENNA POLE SUB-ASSEMBLY
INSTALL REAR SEAT CUSHION ASSEMBLY AND REAR SEATBACK ASSEMBLY
