Communication Devices
>>
Can Communication System
>>
Steering Angle Sensor Communication Stop Mode
>>
Wiring Diagram
Steering Angle Sensor Communication Stop Mode: Wiring Diagram

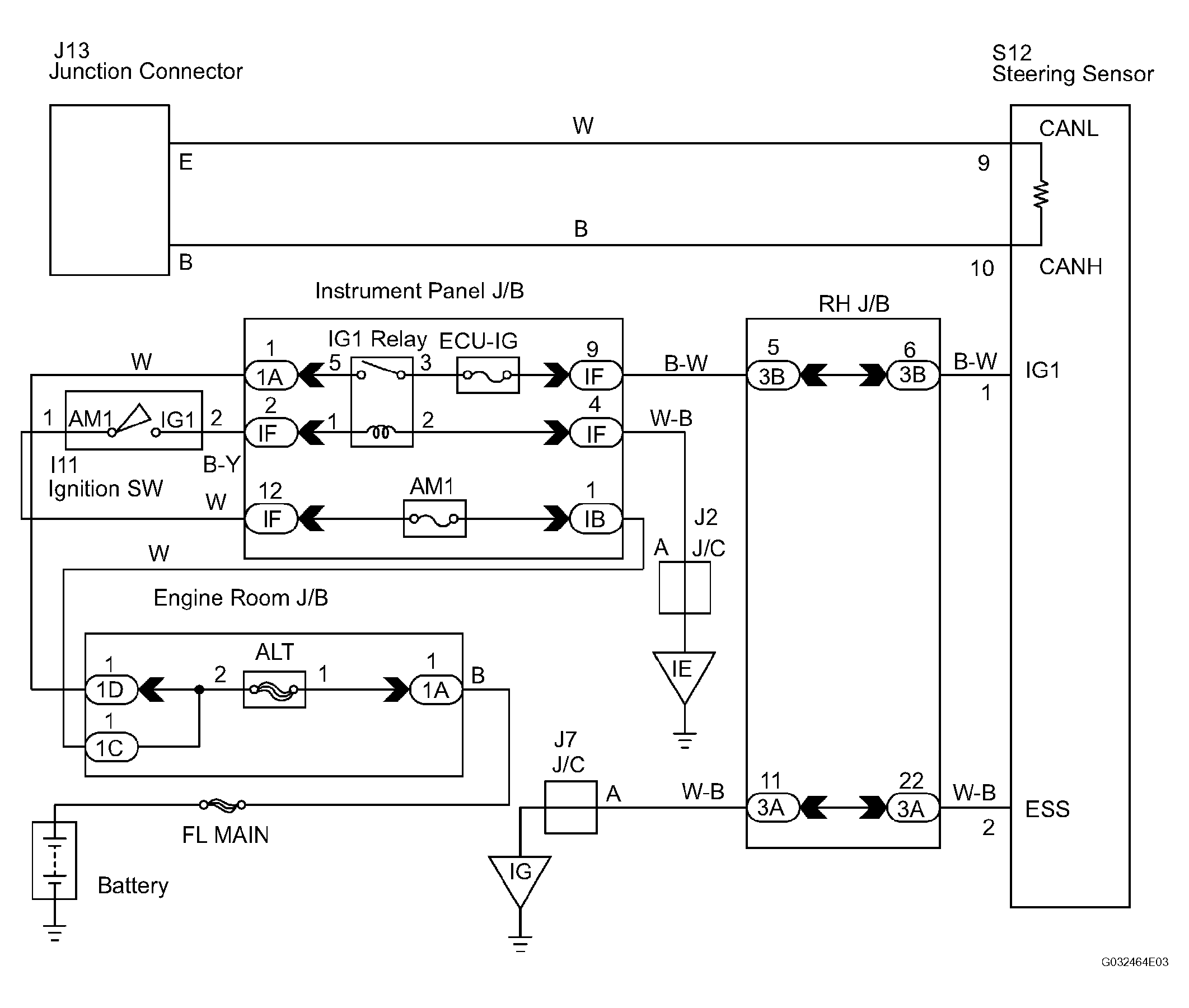

Fig 1: Steering Angle Sensor Communication Stop Mode Wiring Diagram
