Floor Shift Assembly: Components

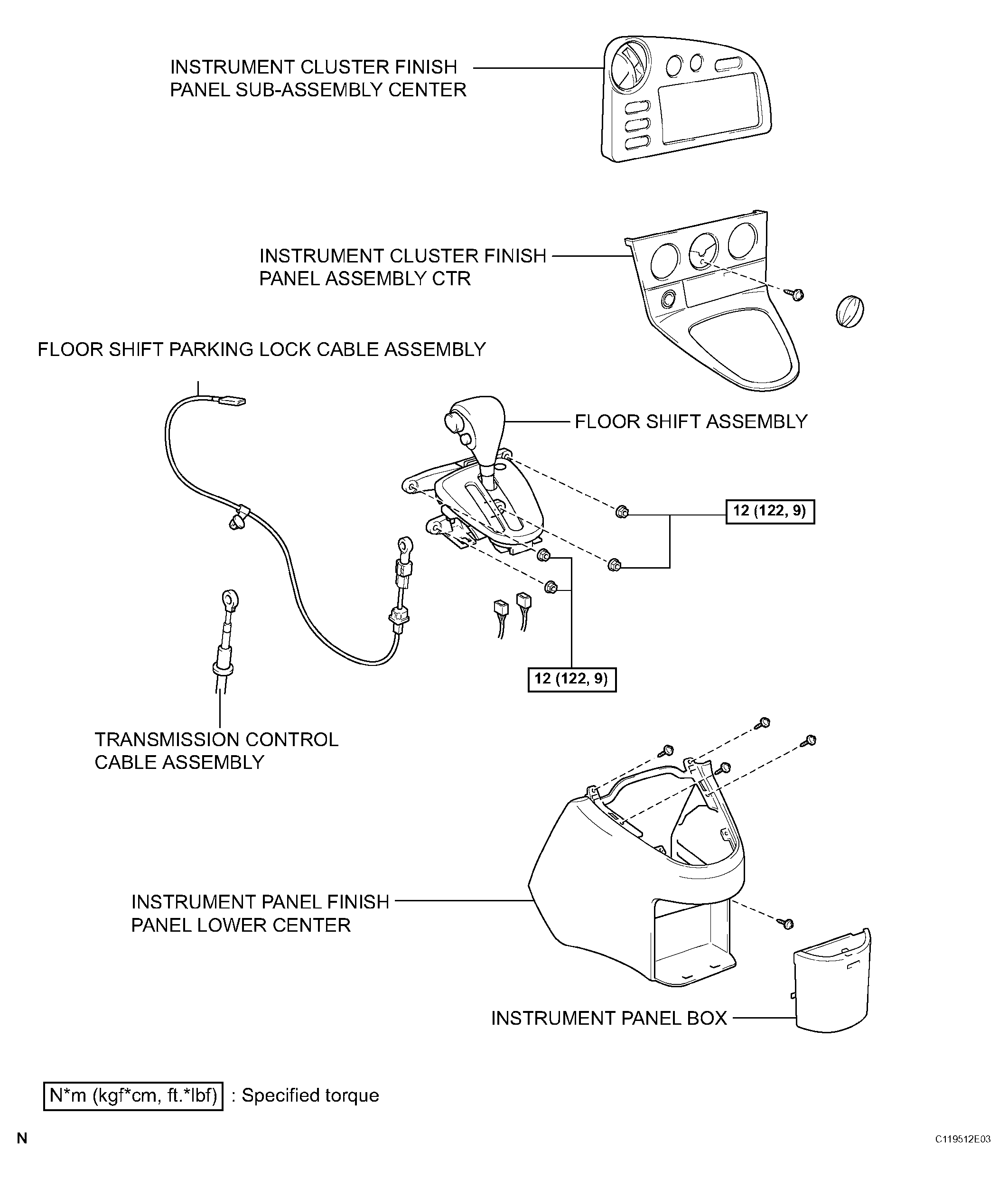

Fig 1: Exploded View Of Floor Shift Assembly Components With Torque Specifications (1 Of 2)
G04462715Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

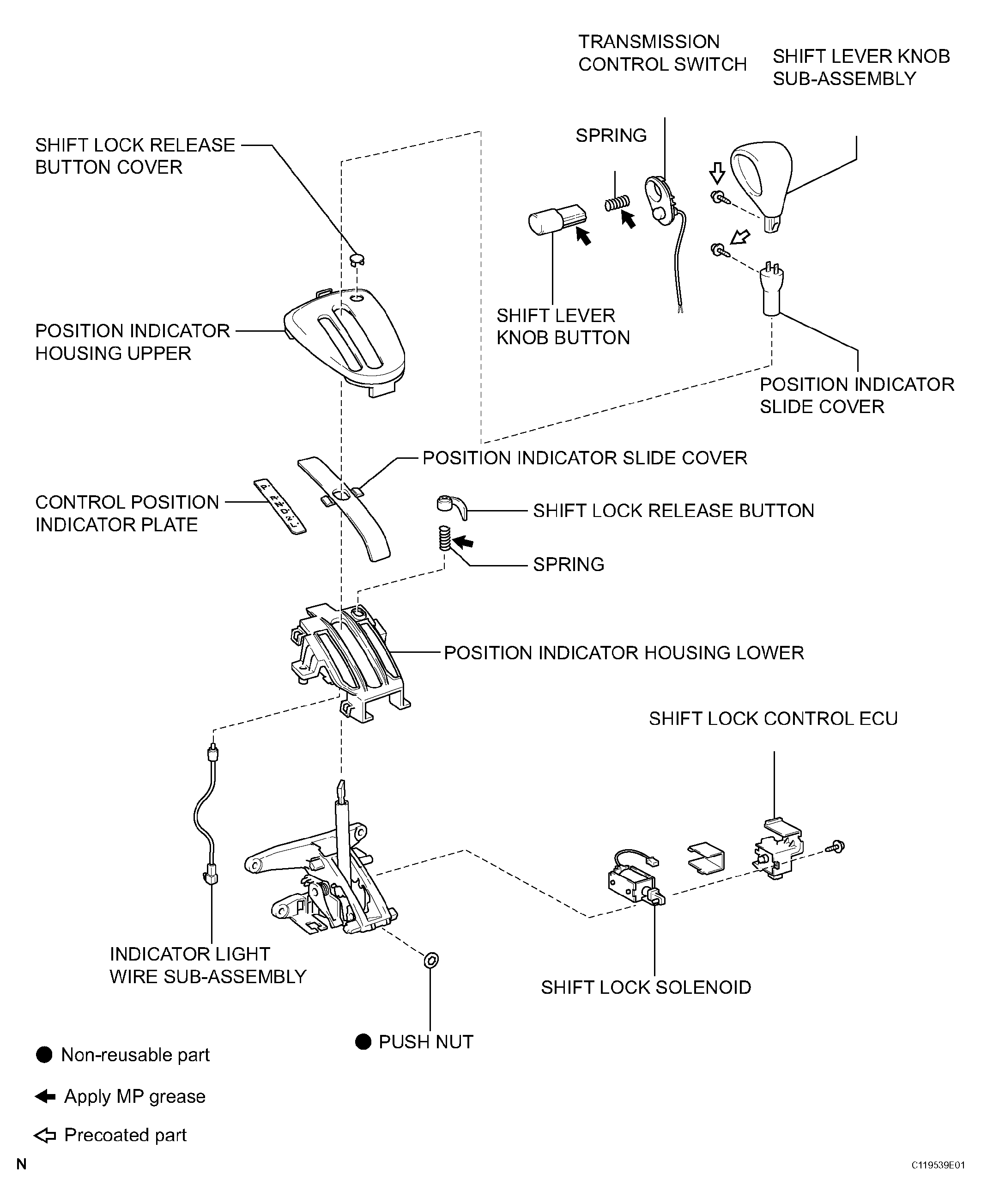

Fig 2: Exploded View Of Floor Shift Assembly Components With Torque Specifications (2 Of 2)
G04462716Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
