Rear Seat Inner Belt Assembly: Components

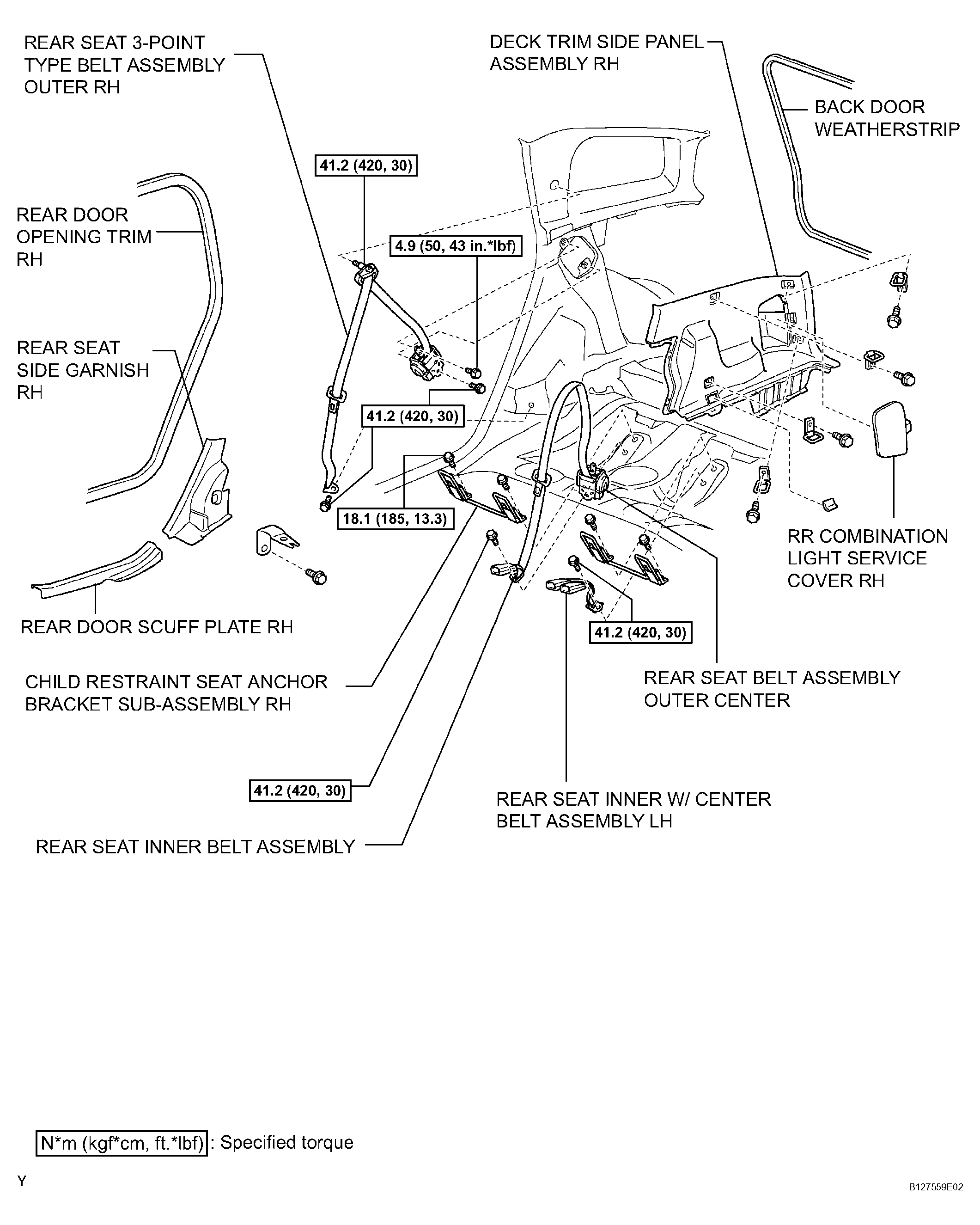

Fig 1: Identifying Rear Seat Inner Belt Assembly Components (1 Of 2)
G04466205Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

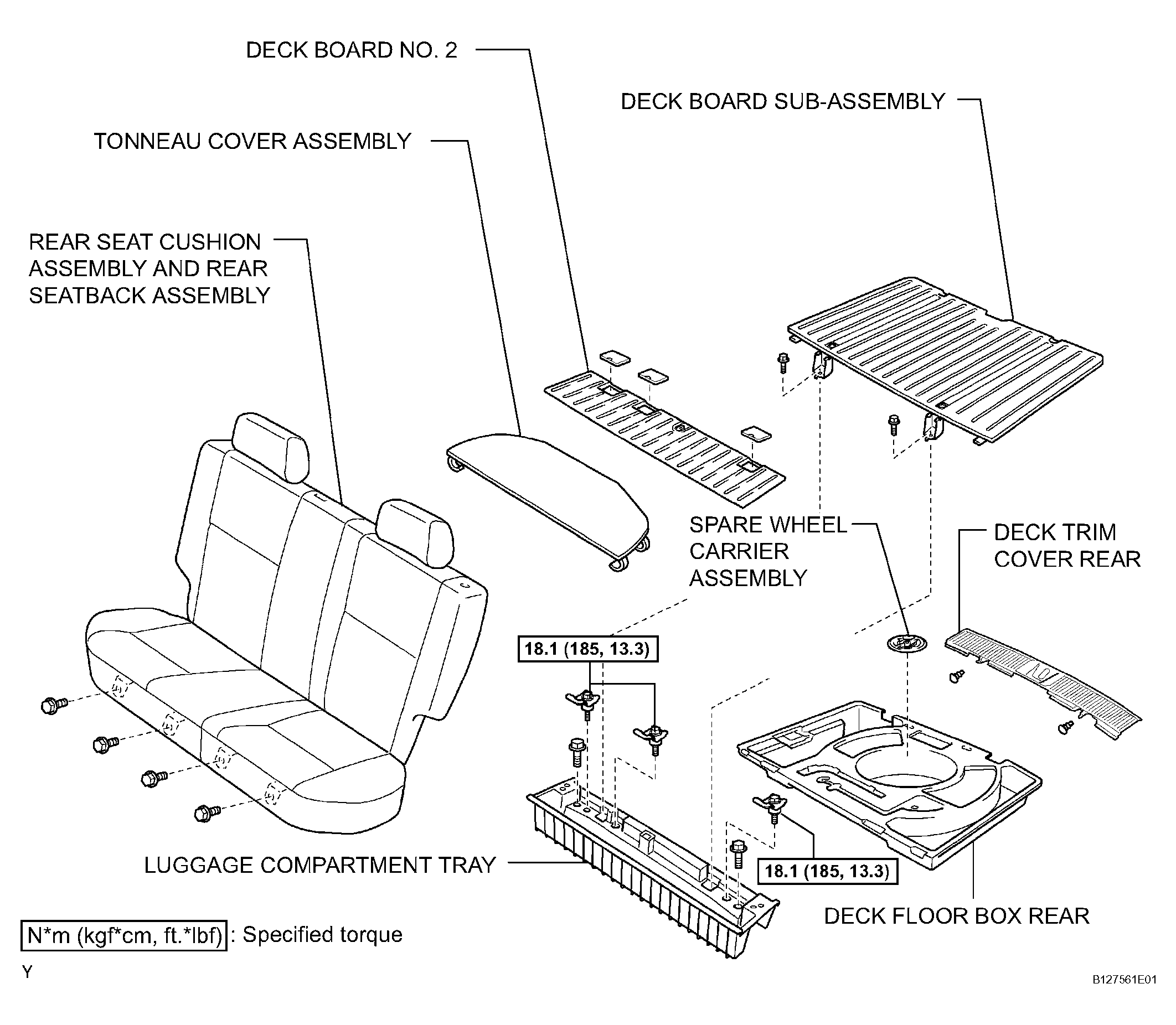

Fig 2: Identifying Rear Seat Inner Belt Assembly Components (2 Of 2)
G04466206Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
