Front Seat Outer Belt Assembly With PRETENSIONER: Components

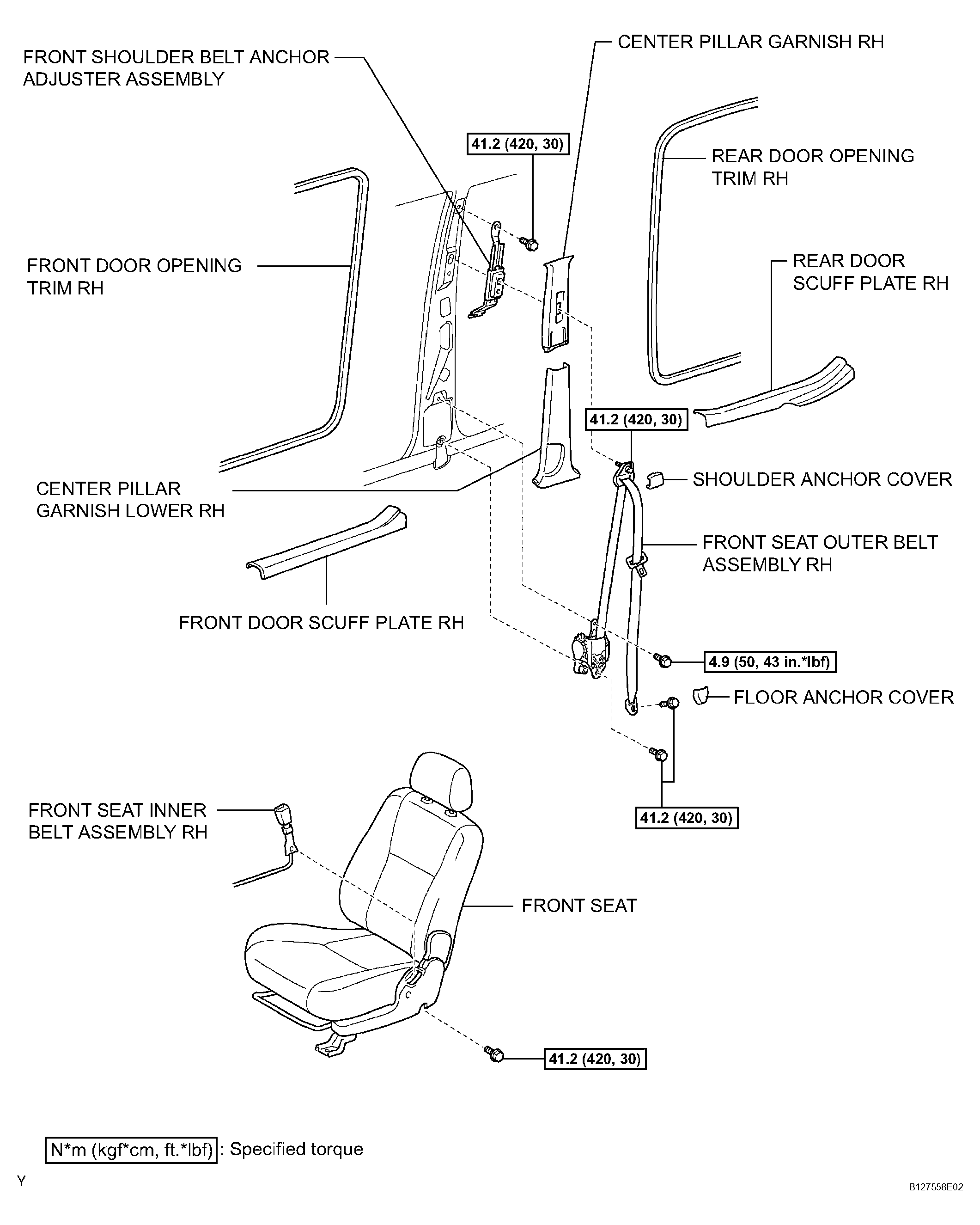

Fig 1: Identifying Front Seat Outer Belt Assembly Components

G04466188

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
