Front Seat Inner Belt Assembly: Inspection

REMOVE FRONT SEAT INNER BELT ASSEMBLY LH

Measure the resistance of the buckle switch.

Standard resistance

TERMINALS RESISTANCE SPECIFICATION

Tester Connection	Condition	Specified Condition
5 - 6	Fasten seat belt	1 MΩ or higher
5 - 6	Release seat belt	Below 1 Ω

If the result is not as specified, replace the inner belt assembly.

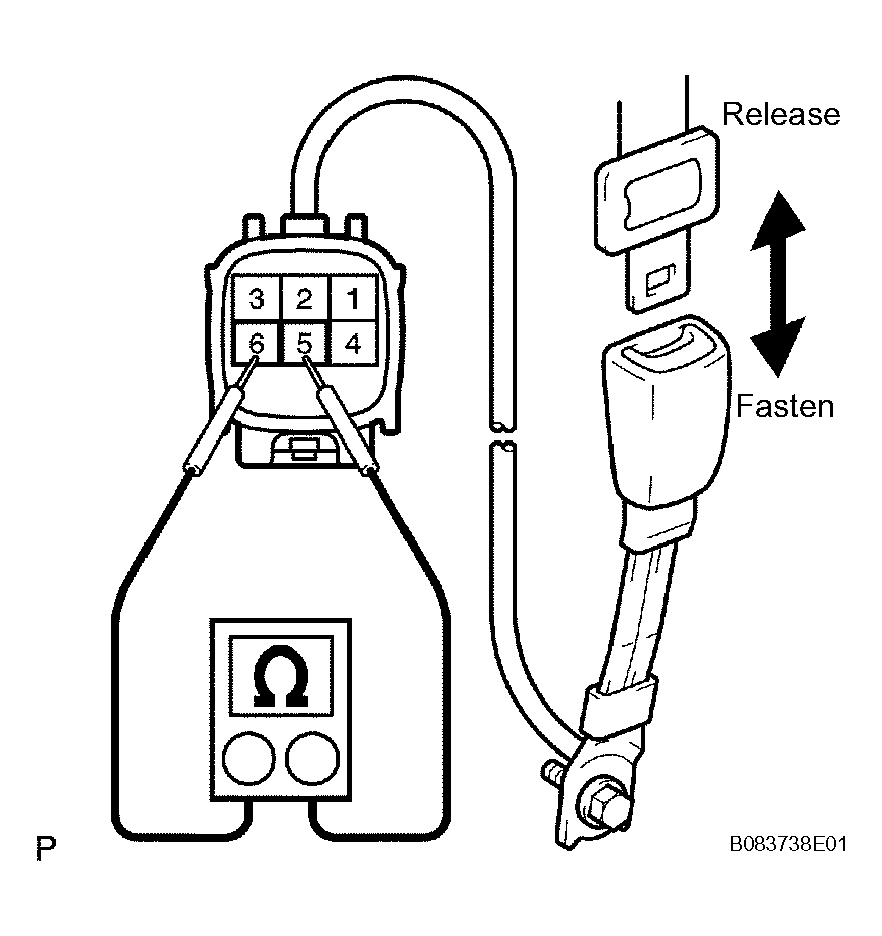

Fig 1: Measuring Resistance Of Buckle Switch
