Seat Position Sensor: Removal

  1. PRECAUTION
    CAUTION: Be sure to read "PRECAUTION" thoroughly before servicing (See PRECAUTION  ).
  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait for 90 seconds after disconnecting the cable to prevent the airbag working.
  3. REMOVE FRONT SEAT ASSEMBLY LH (See  REMOVAL  )
  4. REMOVE FRONT SEAT CUSHION SHIELD LH (See  DISASSEMBLY  )
  5. REMOVE SEAT SLIDE POSITION SENSOR PROTECTOR
    1. Remove the seat slide position sensor protector from the seat position sensor.

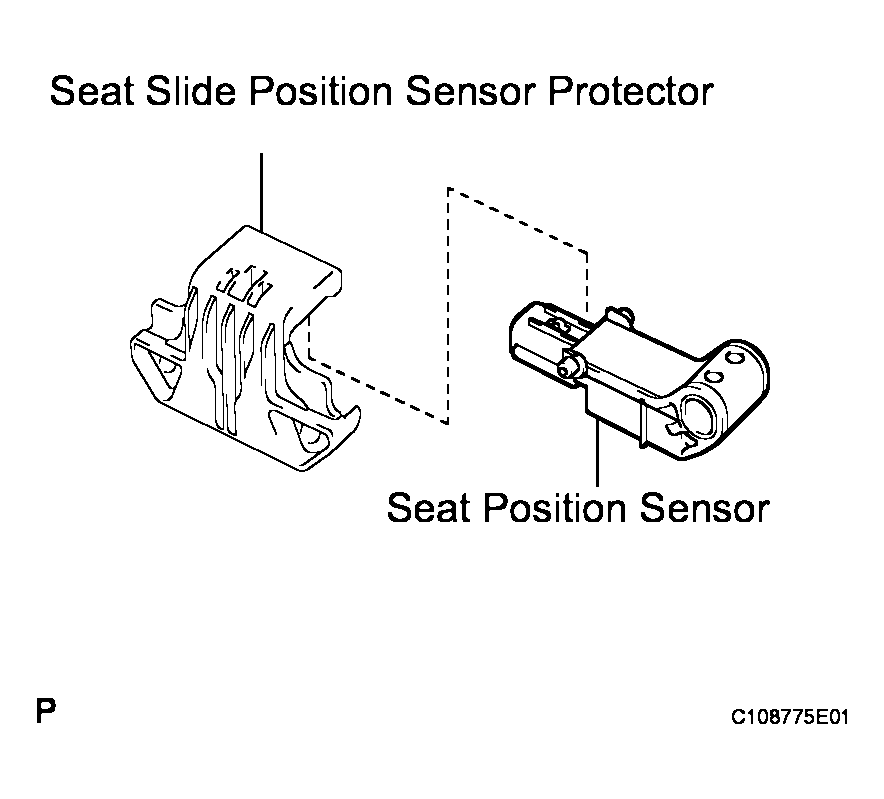

    Fig 1: Removing Seat Slide Position Sensor Protector From Seat Position Sensor
    G04114644Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE SEAT POSITION SENSOR
    1. Disconnect the connector from the seat position sensor.
    2. Using a "torx" socket wrench (T30), remove the "torx" screw and the seat position sensor.

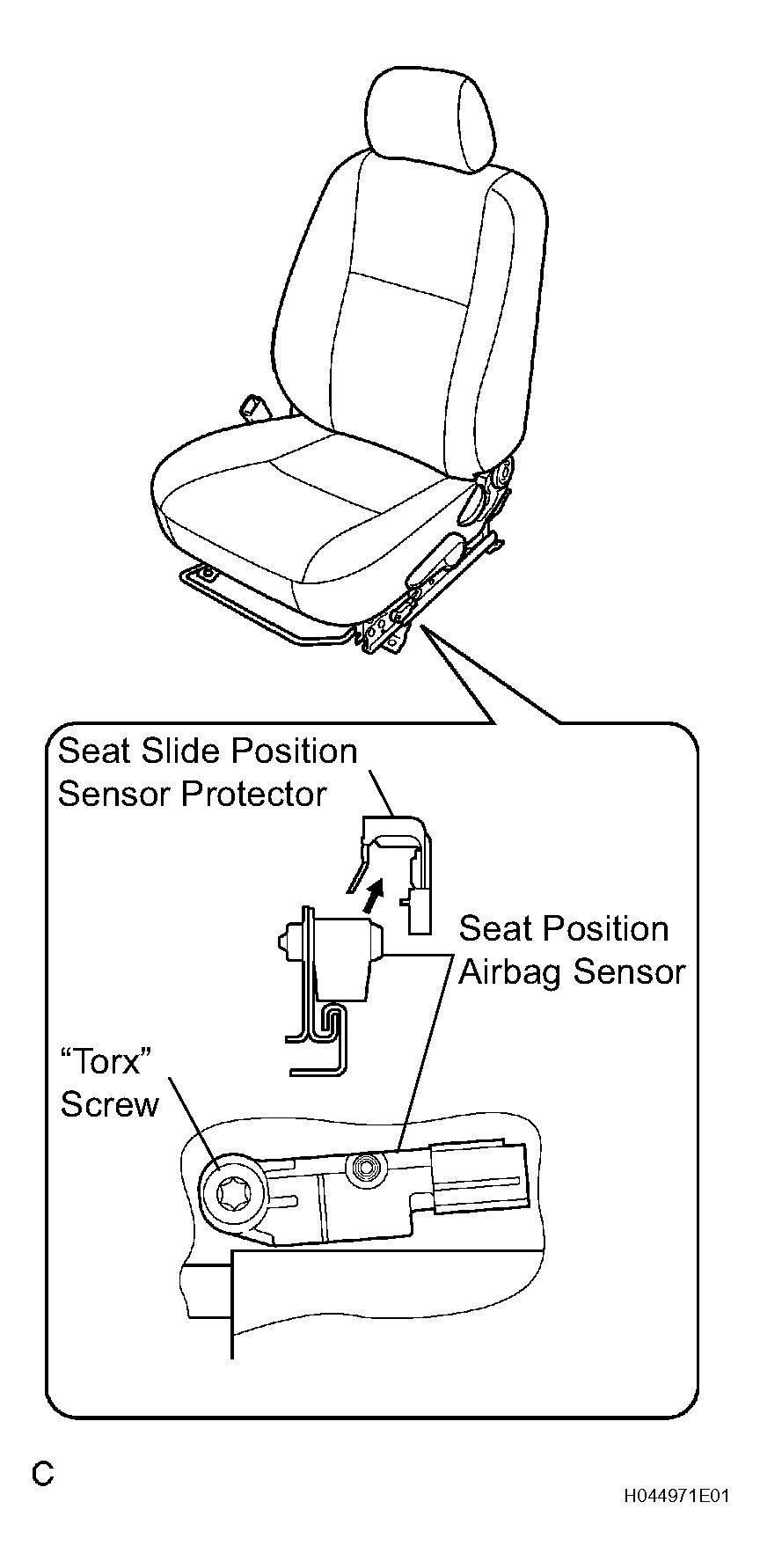

    Fig 2: Removing Seat Position Sensor
    G04466180Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
