Rear Airbag Sensor: Components

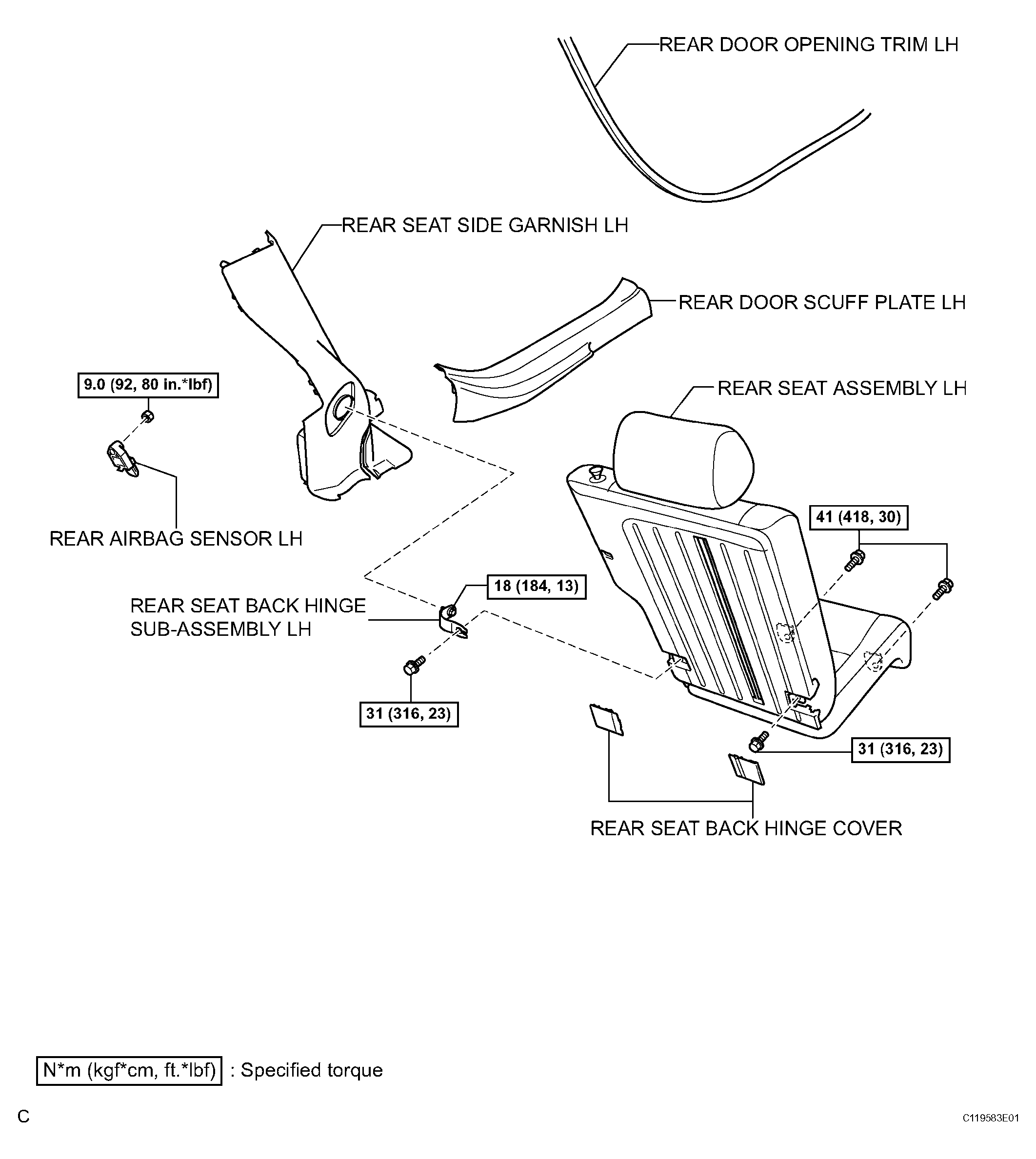

Fig 1: Identifying Rear Airbag Sensor Components And Replacement

G04466175

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
