Occupant Classification Ecu: Removal

  1. PRECAUTION
    CAUTION: Be sure to read "PRECAUTION" thoroughly before servicing (See PRECAUTION  ).
  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait for 90 seconds after disconnecting the cable to prevent the airbag working.
  3. REMOVE FRONT SEAT ASSEMBLY RH (See  REMOVAL  ).
  4. REMOVE OCCUPANT CLASSIFICATION ECU
    1. Disconnect the 2 connectors from the occupant classification ECU.
    2. Using a screwdriver, remove the occupant classification ECU.

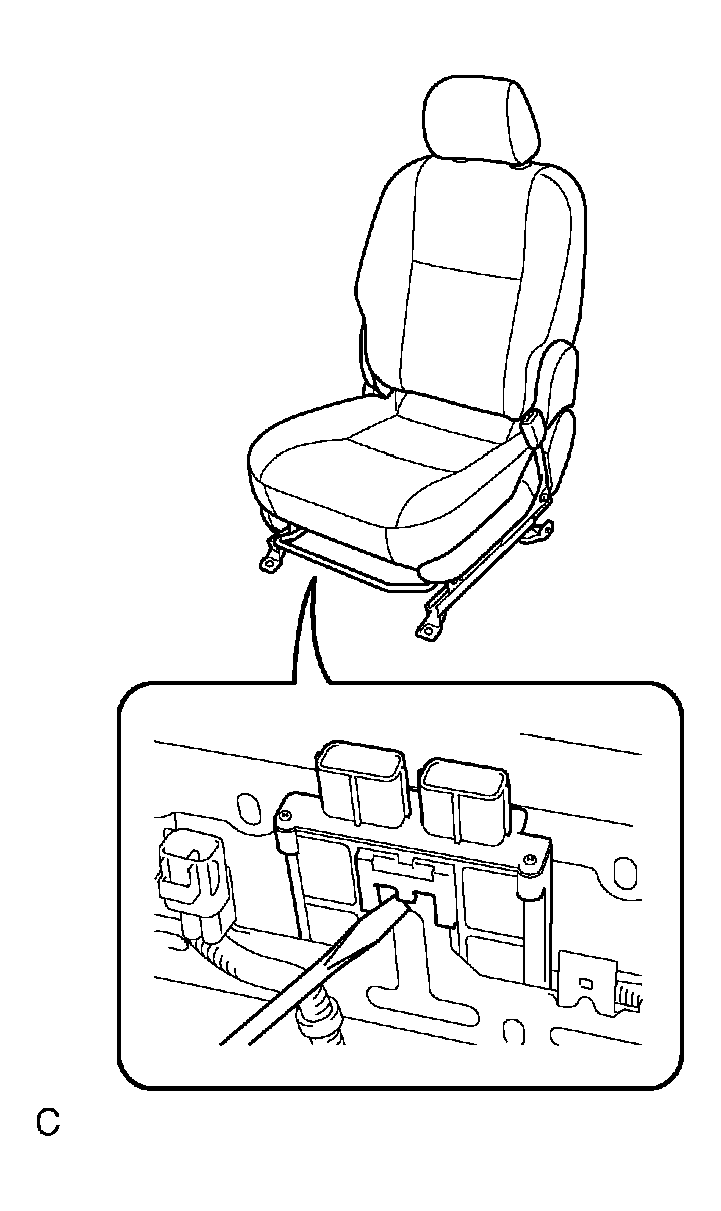

      3. Fig 1: Removing Occupant Classification ECU
      G04466183Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
