Front Airbag Sensor: Removal

HINT:

• Use the same procedures for the RH side and LH side.
• The procedures listed below are for the LH side.

1. PRECAUTION
   CAUTION: Be sure to read "PRECAUTION" thoroughly before servicing (See PRECAUTION  ).
2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
   CAUTION: Wait for 90 seconds after disconnecting the cable to prevent the airbag working.
3. REMOVE FRONT AIRBAG SENSOR LH
   1. Disconnect the connector from the front airbag sensor LH.
   2. Remove the bolt and the front airbag sensor LH.

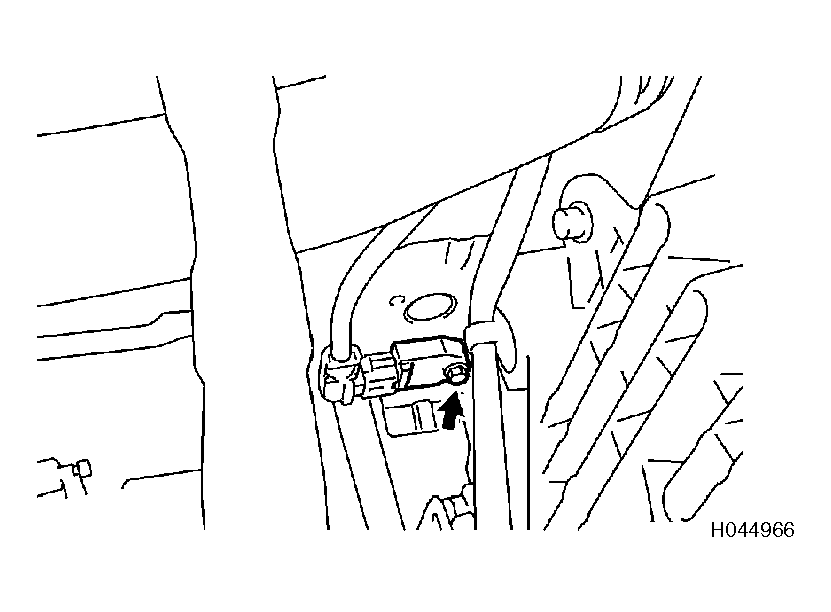

      Fig 1: Removing Front Airbag Sensor LH

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
