Starting System (1ZZ-FE): Starter: Installation

INSTALL STARTER ASSEMBLY
1. Install the starter assembly with the 2 bolts.
  Torque: 37 N*m (378 kgf*cm, 27 ft.*lbf)

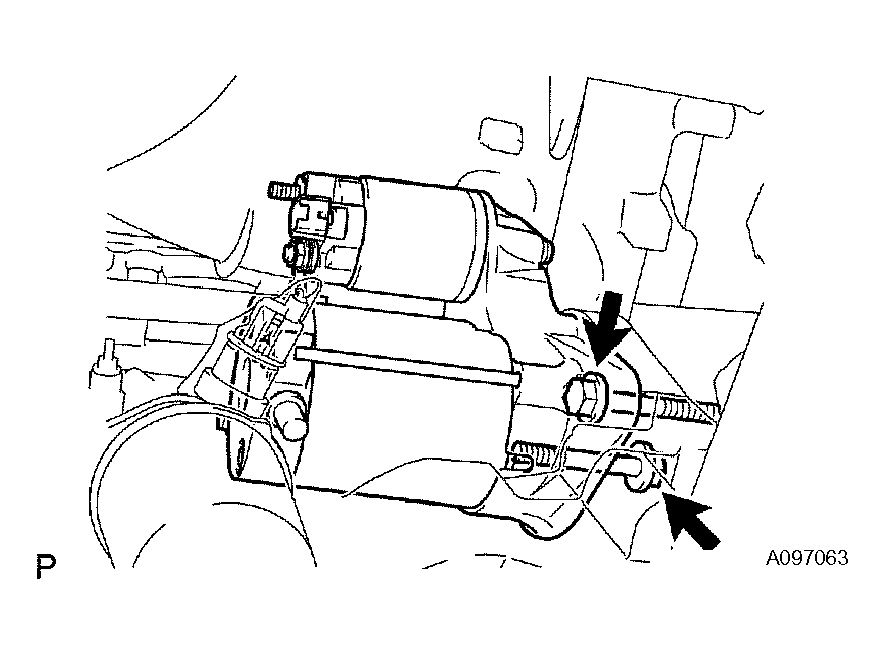

  Fig 1: Installing Starter Assembly With Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the starter wire with the nut [B].
  Torque: 9.8 N*m (100 kgf*cm, 7 ft.*lbf)
3. Close the terminal cover.
4. Connect the starter connector [D].
INSTALL ENGINE UNDER COVER LH
INSTALL ENGINE UNDER COVER RH
CONNECT BATTERY NEGATIVE TERMINAL
Torque: 54 N*m (55 kgf*cm, 48 in.*lbf)

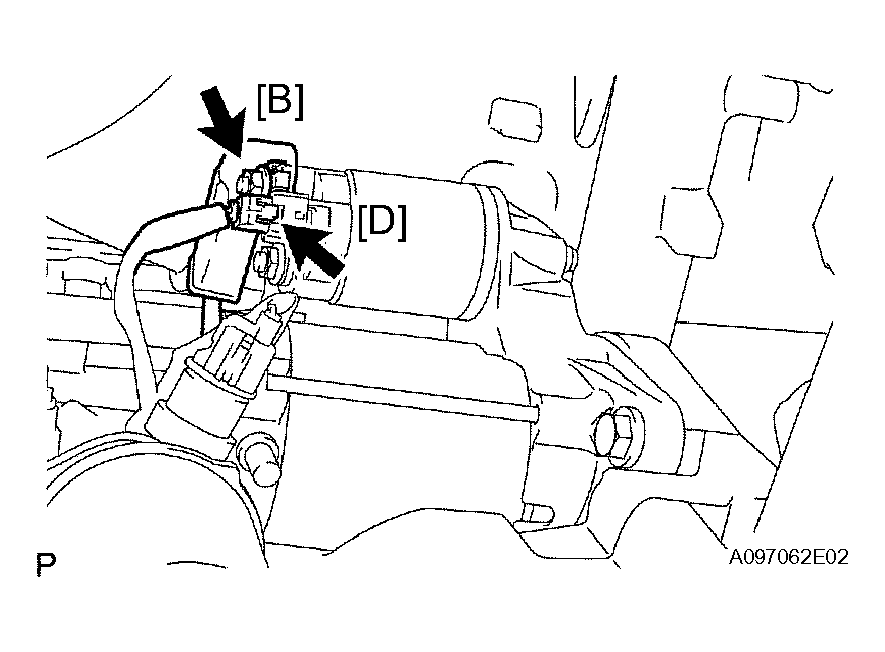

Fig 2: Connecting Starter Wire With Nut
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
