ABS and Tire Pressure Warning System: Notes

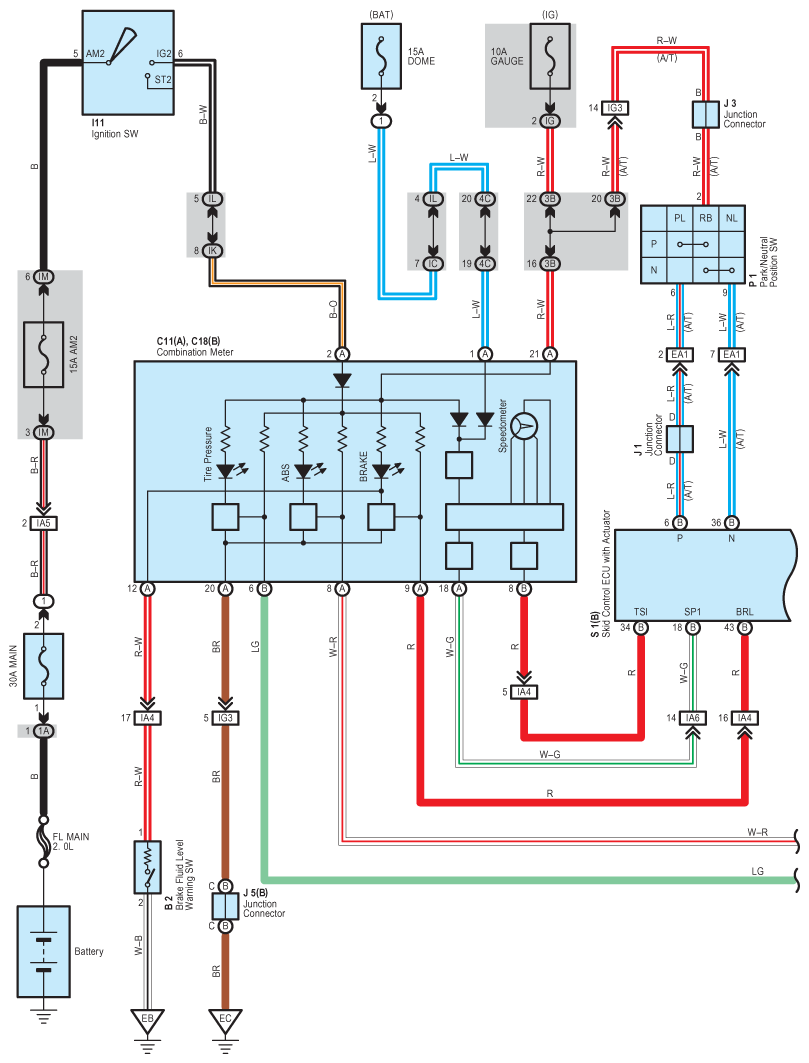

Fig 1: ABS And Tire Pressure Warning System Wiring Diagram (1 Of 2)
G08838205Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

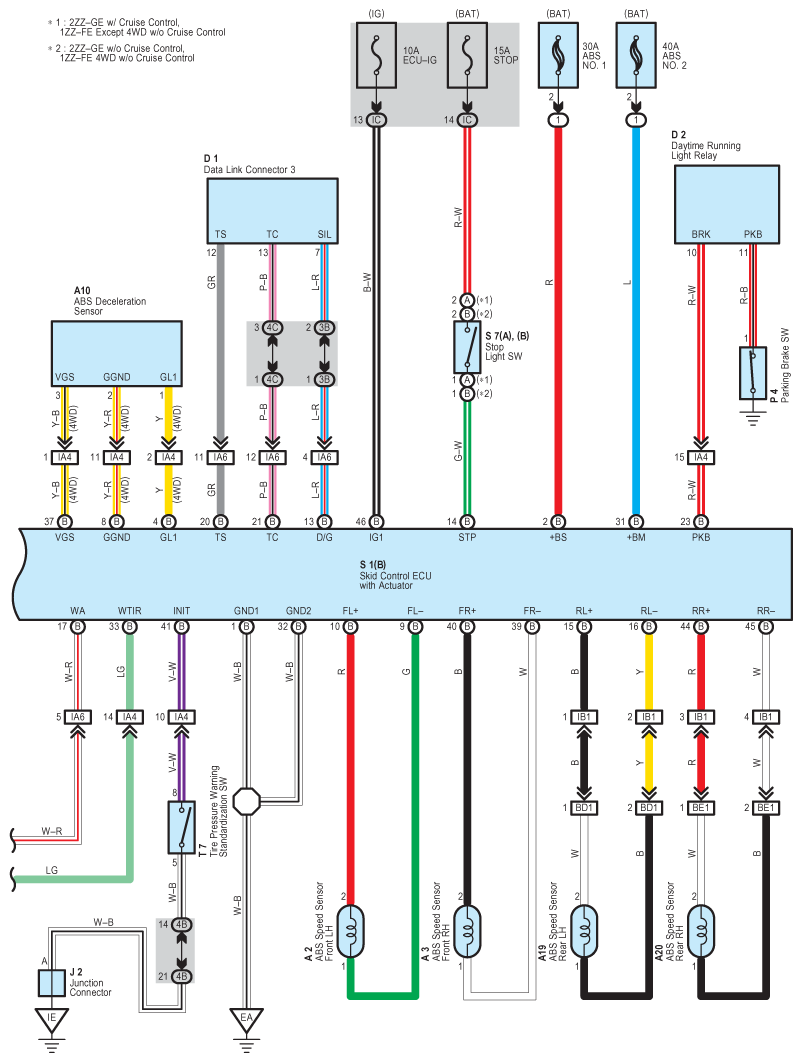

Fig 2: ABS And Tire Pressure Warning System Wiring Diagram (2 Of 2)
G08838206Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
