Parts Location

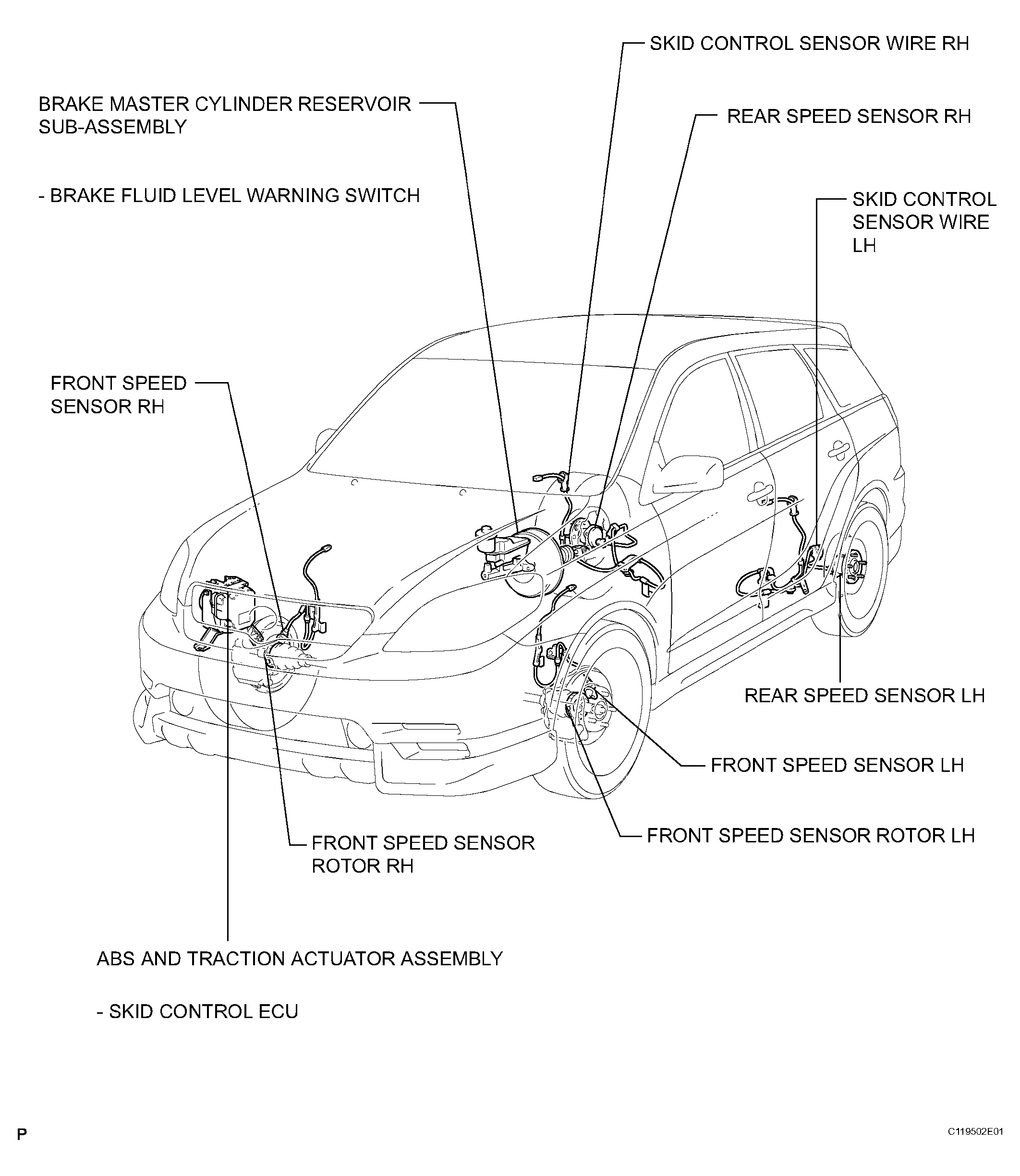

Fig 1: Identifying Vehicle Stability Control System Components And Replacements (1 Of 2)
G04465195Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

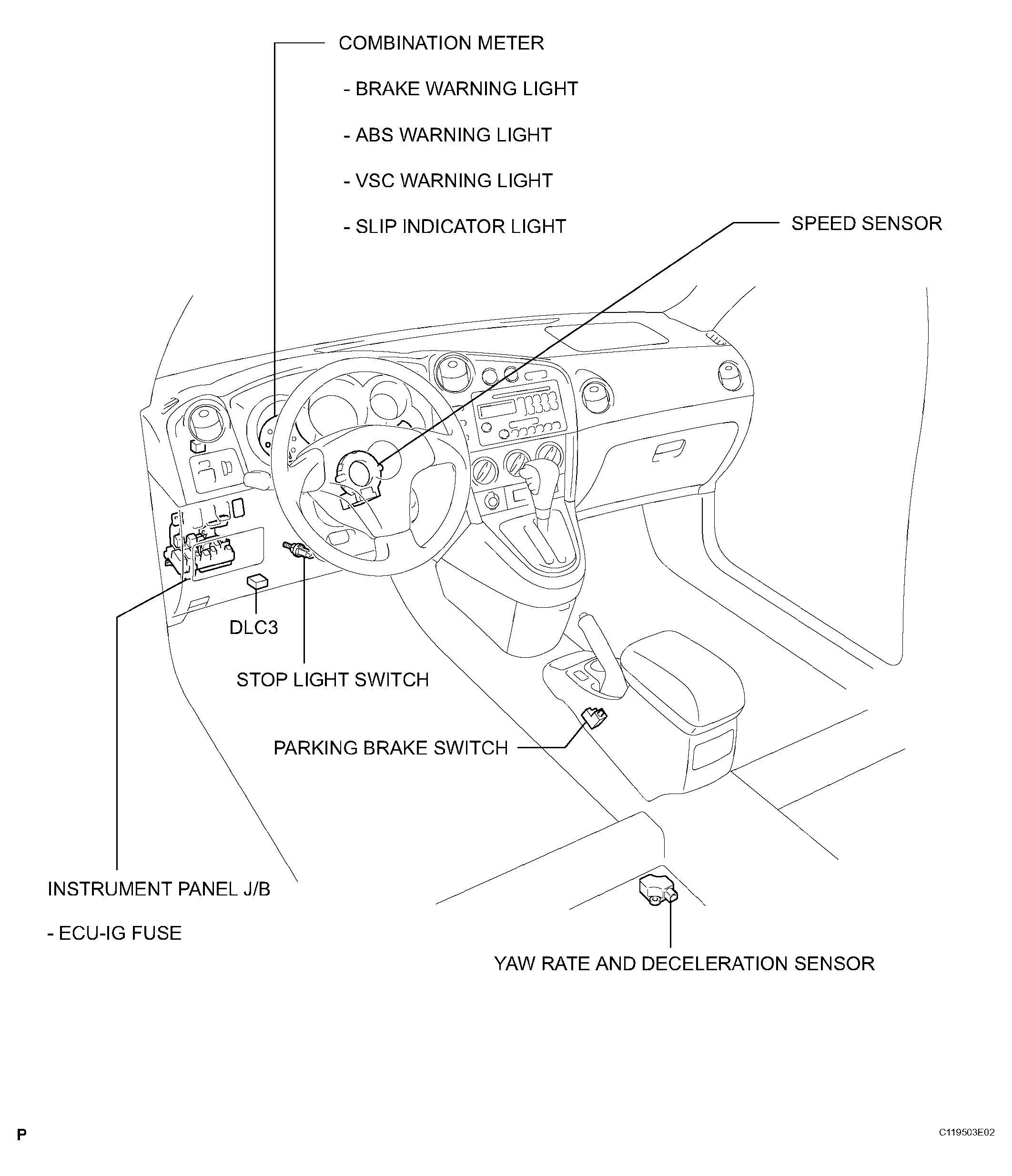

Fig 2: Identifying Vehicle Stability Control System Components And Replacements (2 Of 2)
G04465196Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
