Roof Headlining: Installation

  1. INSTALL ROOF HEADLINING ASSEMBLY
    1. Align the wire harness to the markings, and then attach the wire harness with tape.

      HINT:

      Be careful that dirt and foreign matter do not contaminate the tape's adhesive.

    2. Attach the roof wire harness with tape.
      NOTE: Roof wire harness should be attached securely.

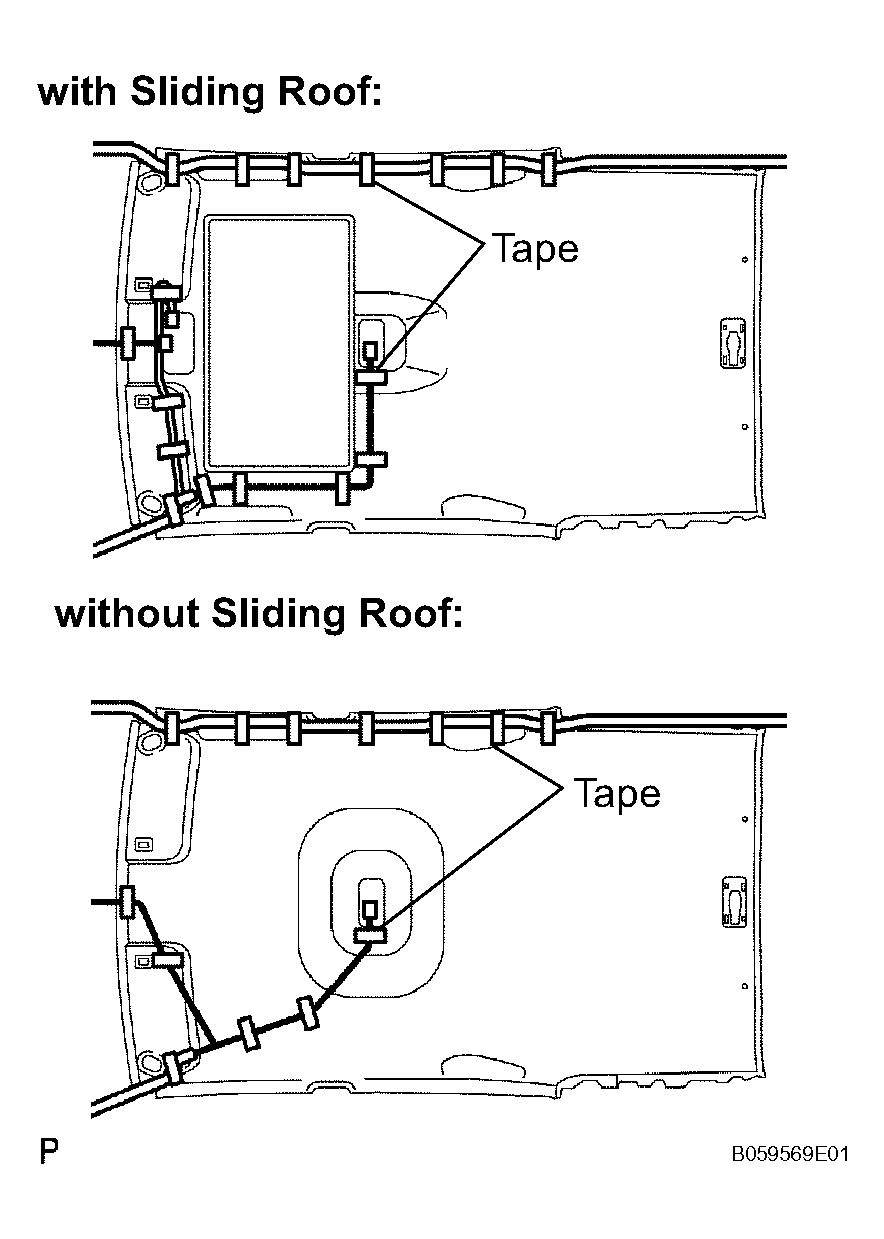

      3. Fig 1: Attaching Roof Wire Harness With Tape
      G04467067Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the 2 clips.
  2. INSTALL SUN ROOF OPENING TRIM MOULDING (w/SLIDING ROOF)
  3. INSTALL VISOR HOLDER
  4. INSTALL ASSIST GRIP SUB-ASSEMBLY
    1. Install the 2 screws and assist grip.
    2. Install the 2 grip covers.
  5. INSTALL NO. 1 INTERIOR LIGHT ASSEMBLY
    1. Install the interior light.
    2. Install the lens cover.
  6. INSTALL MAP LIGHT ASSEMBLY
    1. Install the map light.
    2. Install the screw.
    3. Install the light lens and cover and engage the 4 clips.
    4. Install the screw.

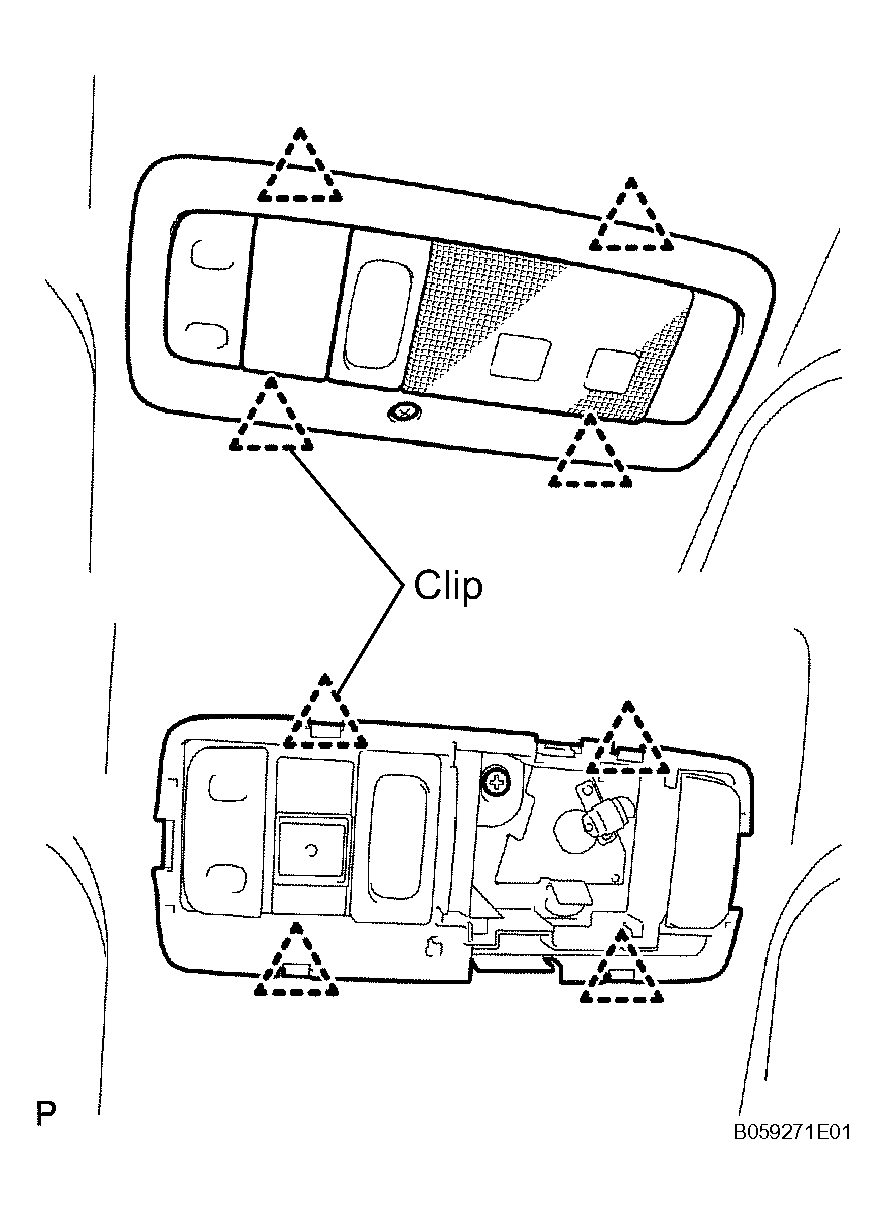

      5. Fig 2: Installing Map Light Assembly
      G04467068Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL VISOR ASSEMBLY LH
    1. Install the 2 screws and visor.
    8. Fig 3: Installing Screws And Visor
    G04467069Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL VISOR ASSEMBLY RH
    1. Install the 2 screws and visor.
  9. INSTALL FRONT PILLAR GARNISH LH
    1. Install the pillar garnish.
    10. Fig 4: Installing Pillar Garnish
    G04467070Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL FRONT PILLAR GARNISH RH
  11. INSTALL ROOF SIDE INNER GARNISH LH
    1. Install the roof side garnish.
    2. Install the bolt and rear seat 3-point belt.

      Torque: 41.2 N*m (420 kgf*cm, 30 ft.*lbf)

    3. Install the seat belt anchor cover.
    12. Fig 5: Installing Roof Side Inner Garnish
    G04467071Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. INSTALL ROOF SIDE INNER GARNISH RH
  13. INSTALL DECK TRIM SIDE PANEL ASSEMBLY LH
    1. Install the side panel and engage the 3 claws and 3 clips.
    2. Install the 4 bolts and 4 rope hooks.

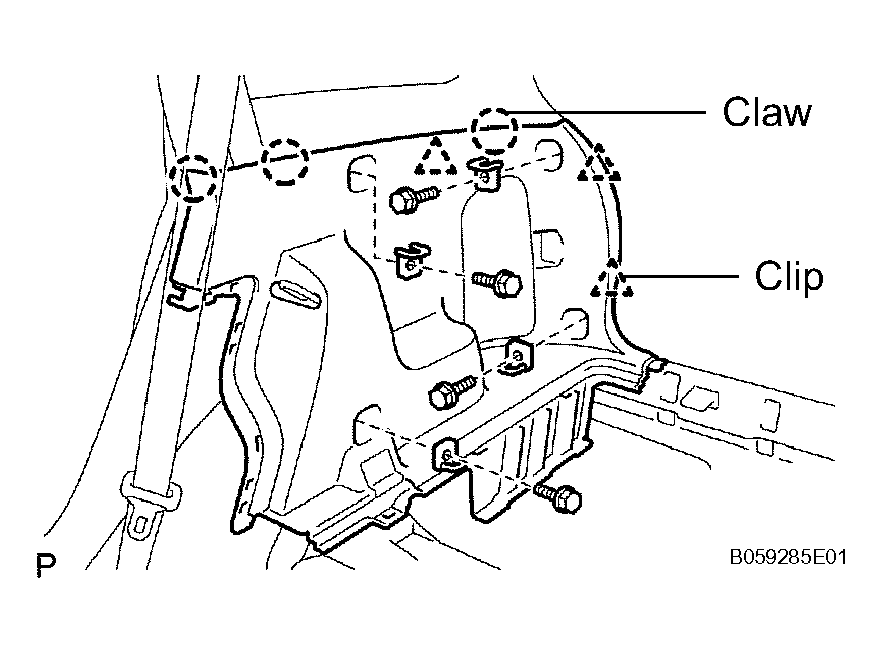

    14. Fig 6: Installing Deck Trim Side Panel Assembly
    G04467072Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. INSTALL DECK TRIM SIDE PANEL ASSEMBLY RH
  15. INSTALL REAR SEAT SIDE GARNISH LH
    1. Install the side garnish.
    2. Install the bolt and seat back hinges.

      Torque: 18 N*m (185 kgf*cm, 13 ft.*lbf)

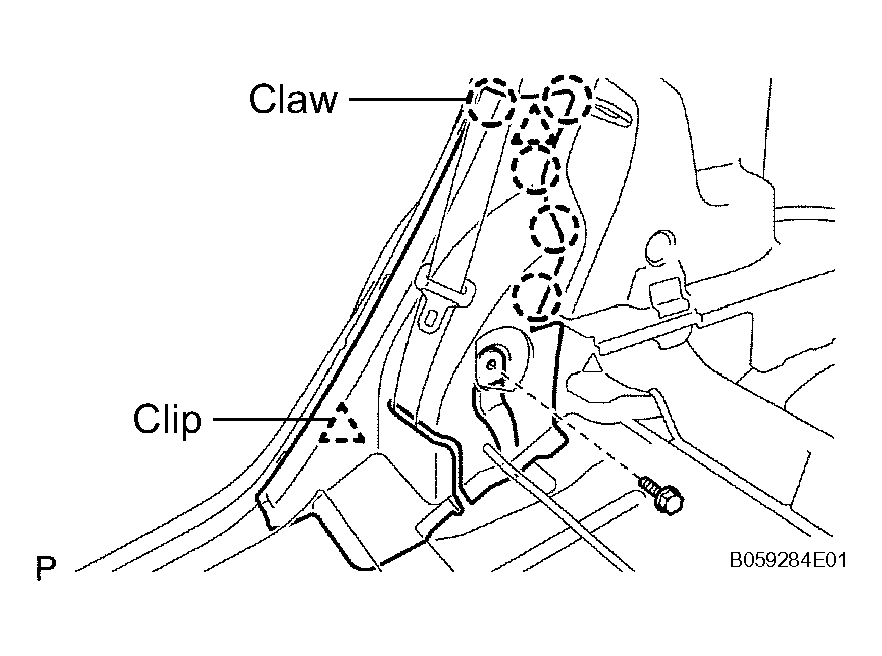

    16. Fig 7: Installing Rear Seat Side Garnish
    G04467073Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. INSTALL REAR SEAT SIDE GARNISH RH
  17. INSTALL REAR SEATBACK ASSEMBLY

    HINT:

    See REASSEMBLY

  18. INSTALL REAR SEAT CUSHION ASSEMBLY

    HINT:

    See REASSEMBLY

  19. INSTALL TONNEAU COVER ASSEMBLY
  20. INSTALL REAR DECK TRIM COVER
    1. Install the rear deck trim cover.
    2. Install 2 clips.

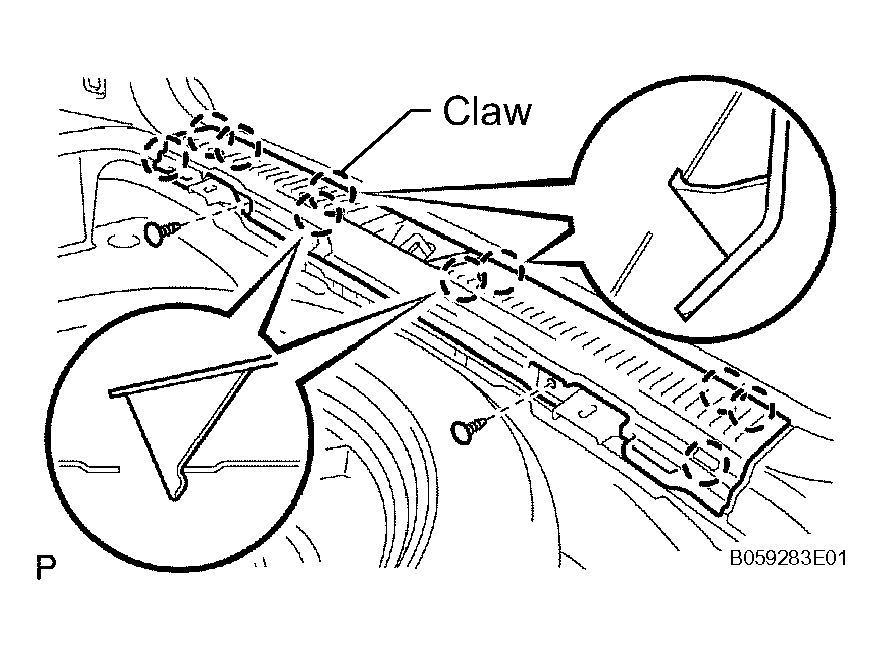

    21. Fig 8: Installing Rear Deck Trim Cover
    G04467074Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. INSTALL BACK DOOR WEATHERSTRIP
  22. INSTALL LUGGAGE COMPARTMENT TRAY
    1. Install the 5 bolts and luggage compartment tray.

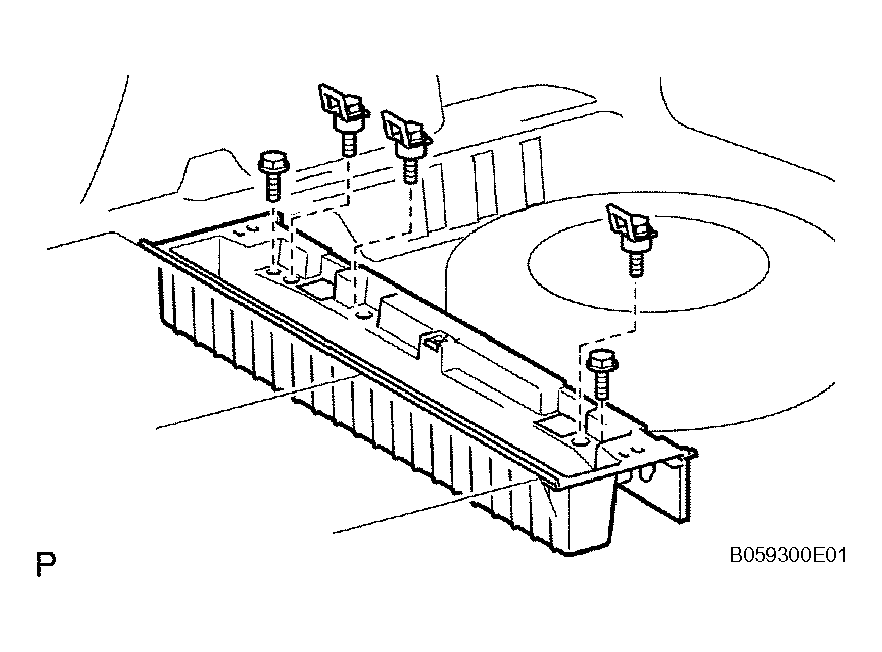

      Fig 9: Installing Bolts And Luggage Compartment Tray
      G04467075Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. INSTALL REAR DECK FLOOR BOX
    1. Install the rear deck floor box and tighten the spare wheel carrier.
    Fig 10: Installing Rear Deck Floor Box
    G04467076Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  24. INSTALL DECK BOARD SUB-ASSEMBLY
    1. Install the 2 bolts and deck board.
  25. INSTALL NO. 2 DECK BOARD
  26. INSTALL CENTER PILLAR GARNISH LH
    1. Install the pillar garnish.
    2. Connect the front seat outer belt (floor anchor side) and install the bolt.
    3. Connect the front seat outer belt (shoulder anchor side) and install the bolt.

      Torque: 41.2 N*m (420 kgf*cm, 30 ft.*lbf)

    4. Install the shoulder anchor cover cap.
    27. Fig 11: Installing Center Pillar Garnish
    G04467077Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. INSTALL CENTER PILLAR GARNISH RH
  28. INSTALL CENTER PILLAR LOWER GARNISH LH
    1. Install the lower garnish.
      2. Fig 12: Installing Lower Garnish
      G04467078Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. INSTALL CENTER PILLAR LOWER GARNISH RH
  30. INSTALL REAR DOOR OPENING TRIM LH
  31. INSTALL REAR DOOR OPENING TRIM RH
  32. INSTALL FRONT DOOR OPENING TRIM LH
  33. INSTALL FRONT DOOR OPENING TRIM RH
  34. INSTALL REAR DOOR SCUFF PLATE LH
    1. Install the scuff plate.

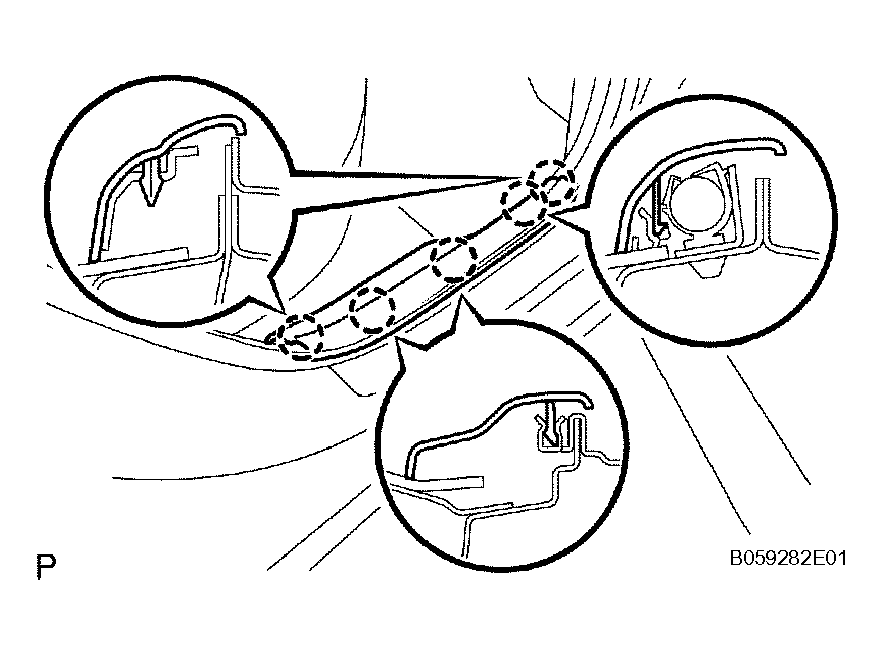

    35. Fig 13: Installing Rear Door Scuff Plate
    G04467079Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  35. INSTALL REAR DOOR SCUFF PLATE RH
  36. INSTALL COWL SIDE TRIM BOARD LH
    1. Install the trim board and engage the 2 clips labeled B.
    2. Install the clip labeled A.
    37. Fig 14: Installing Cowl Side Trim Board
    G04467080Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  37. INSTALL COWL SIDE TRIM BOARD RH
  38. INSTALL FRONT DOOR SCUFF PLATE LH
    1. Install the scuff plate.

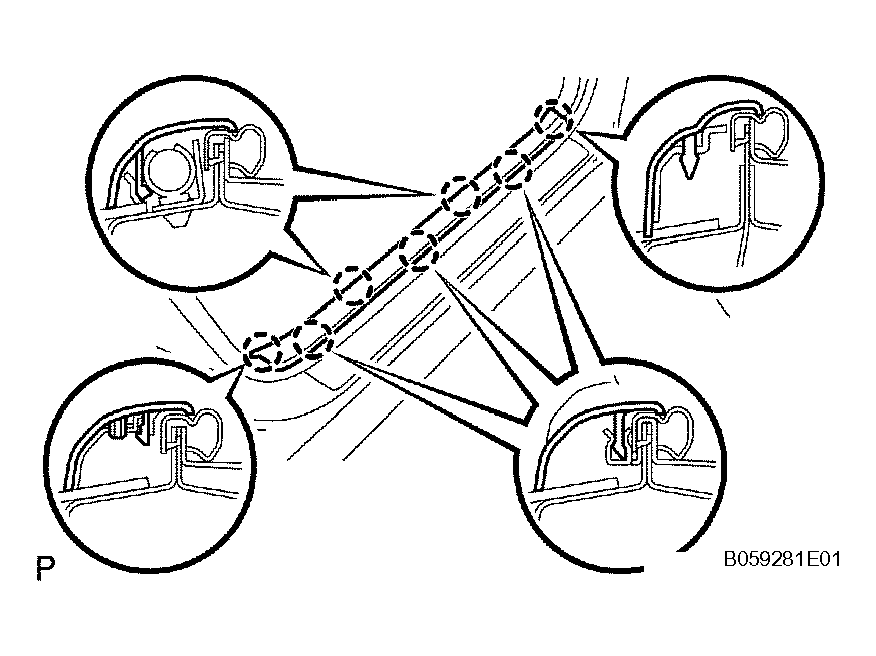

    39. Fig 15: Installing Front Door Scuff Plate
    G04467081Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  39. INSTALL FRONT DOOR SCUFF PLATE RH
