Rear Bumper: Components

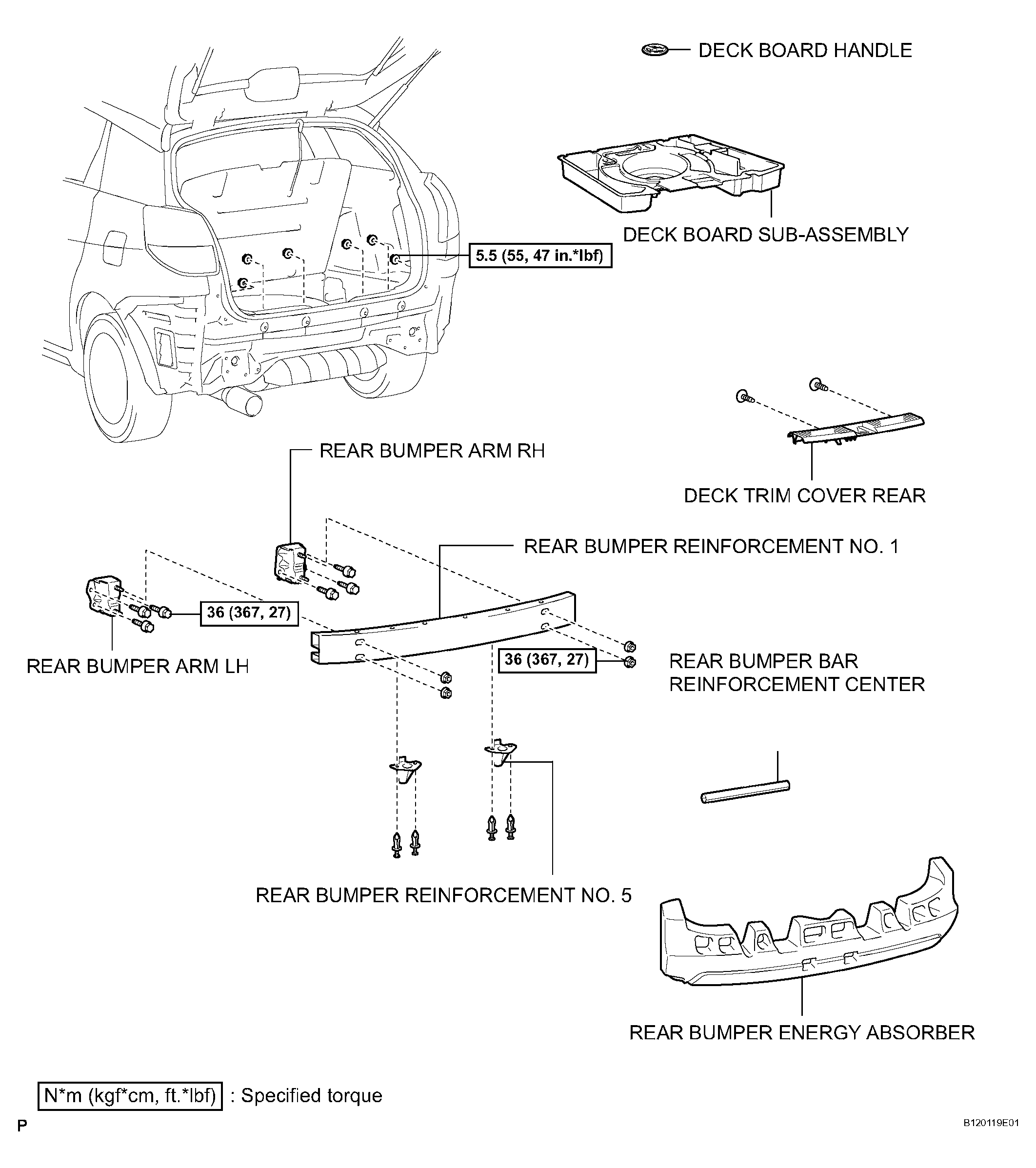

Fig 1: Rear Bumper Replacement Components With Torque Specifications
G04467022Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

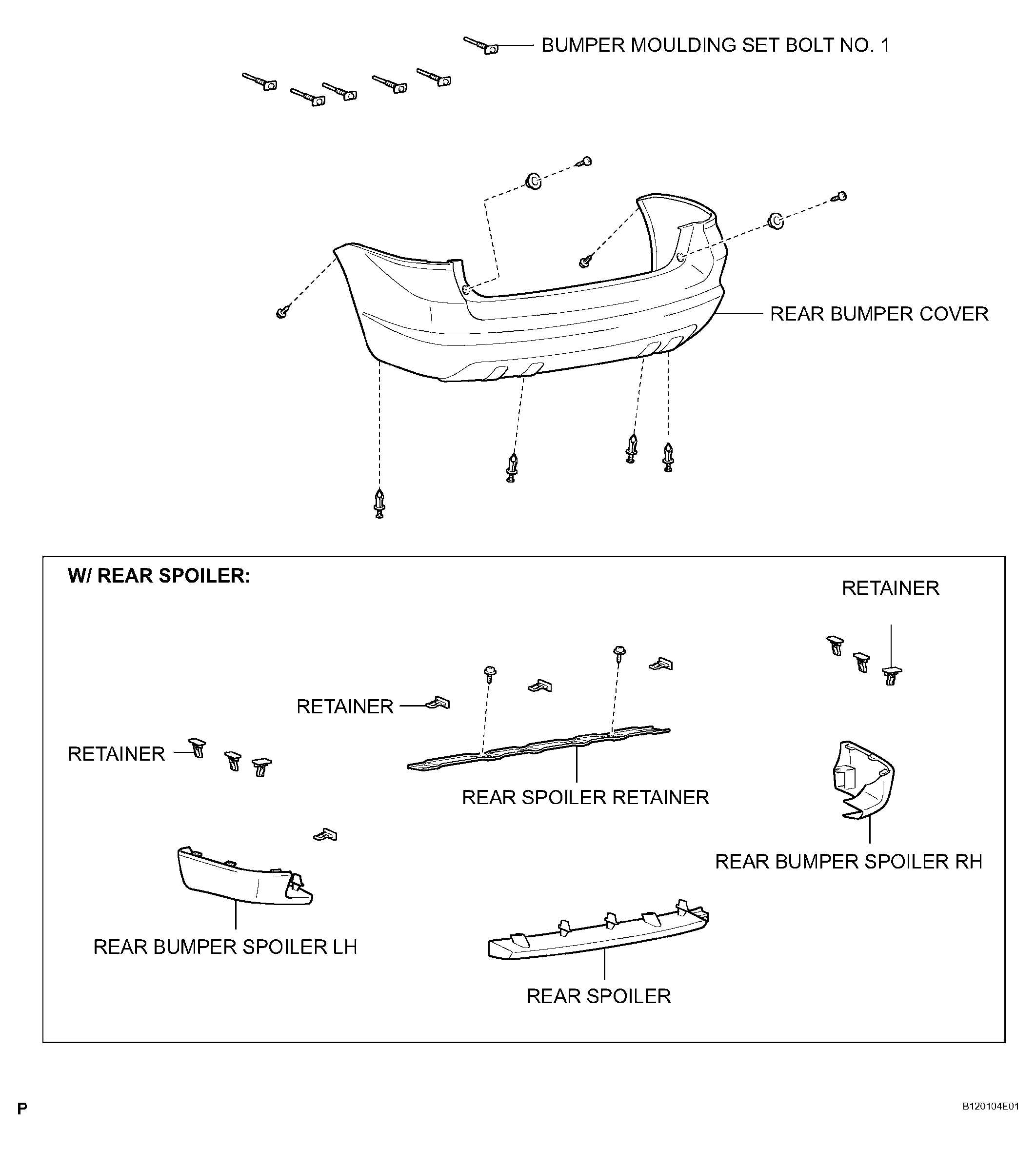

Fig 2: Identifying Rear Bumper Components
G04467023Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
