Front Side Speaker: Removal

  1. REMOVE FRONT DOOR PULL HANDLE LH (See  DISASSEMBLY  )
  2. REMOVE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY (w/ Power Window) (See  DISASSEMBLY  )
  3. REMOVE UPPER FRONT ARMREST BASE PANEL LH (w/o Power Window) (See  DISASSEMBLY  )
  4. REMOVE FRONT DOOR WINDOW REGULATOR HANDLE ASSEMBLY (w/o Power Window) (See  DISASSEMBLY  )
  5. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH (See  DISASSEMBLY  )
  6. REMOVE FRONT NO. 1 SPEAKER
    1. Disconnect the connector.
    2. Using a drill of less than diameter 4 mm (0.16 in.), drill out the 3 rivet heads and remove the front No. 1 speaker from the front door panel.

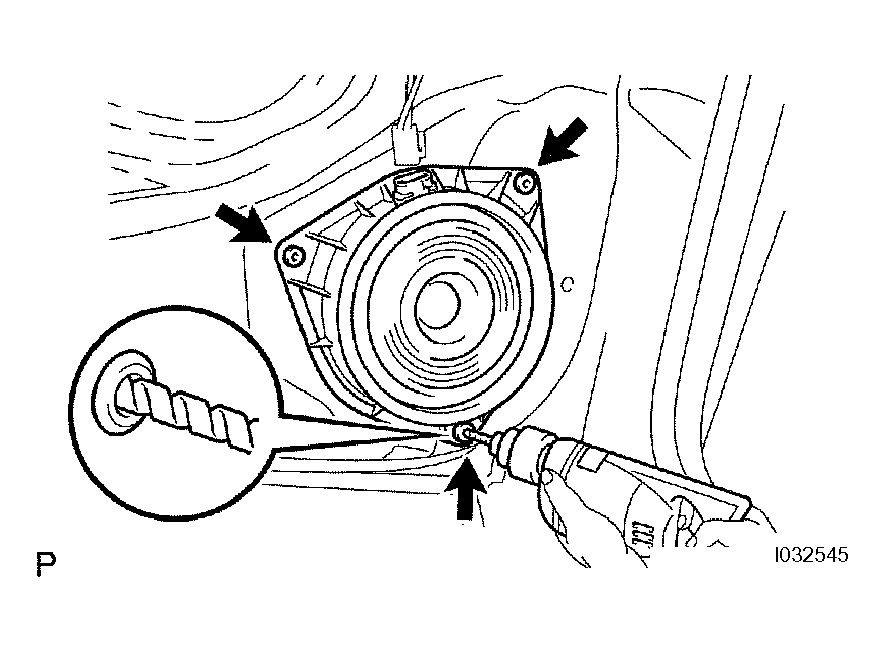

      Fig 1: Drilling Out Rivet Heads
      G04466737Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Gently and vertically put the drill to the rivet, and cut the rivet flanges.
      NOTE:
      • Prizing the hole with a drill can lead to damage to the rivet hole or breaking the drill.
      • Take cafe as the cut rivet is hot.
    4. Even if flange is taken off, continue drilling and push out remaining fragments with the drill.
    5. Using a vacuum cleaner, remove the drilled rivet and their dust from the inside of the front door panel.
  7. REMOVE FRONT NO. 2 SPEAKER
    1. Disconnect the connector.
    2. Remove the 2 nuts and front No. 2 speaker from the front door panel.

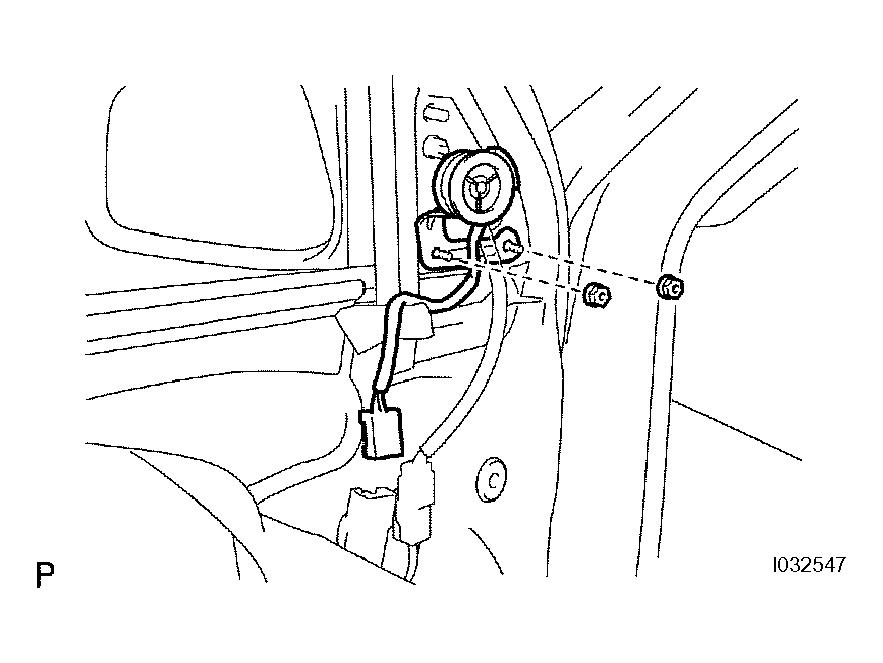

      Fig 2: Removing Front No. 2 Speaker
      G04466738Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
