Steering Angle Sensor: Components

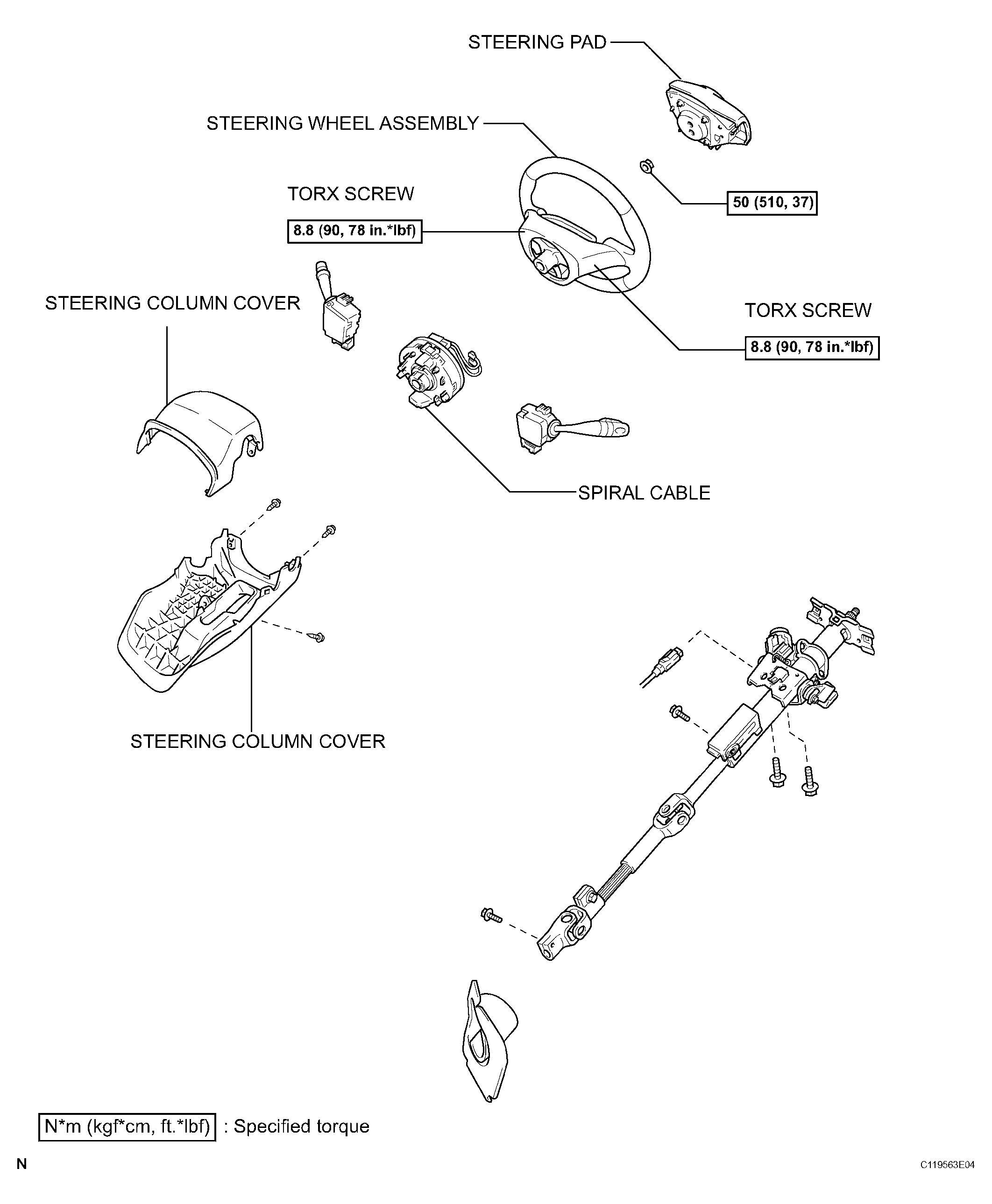

Fig 1: Identifying Steering Angle Sensor Components And Replacements (1 Of 2)
G04465381Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

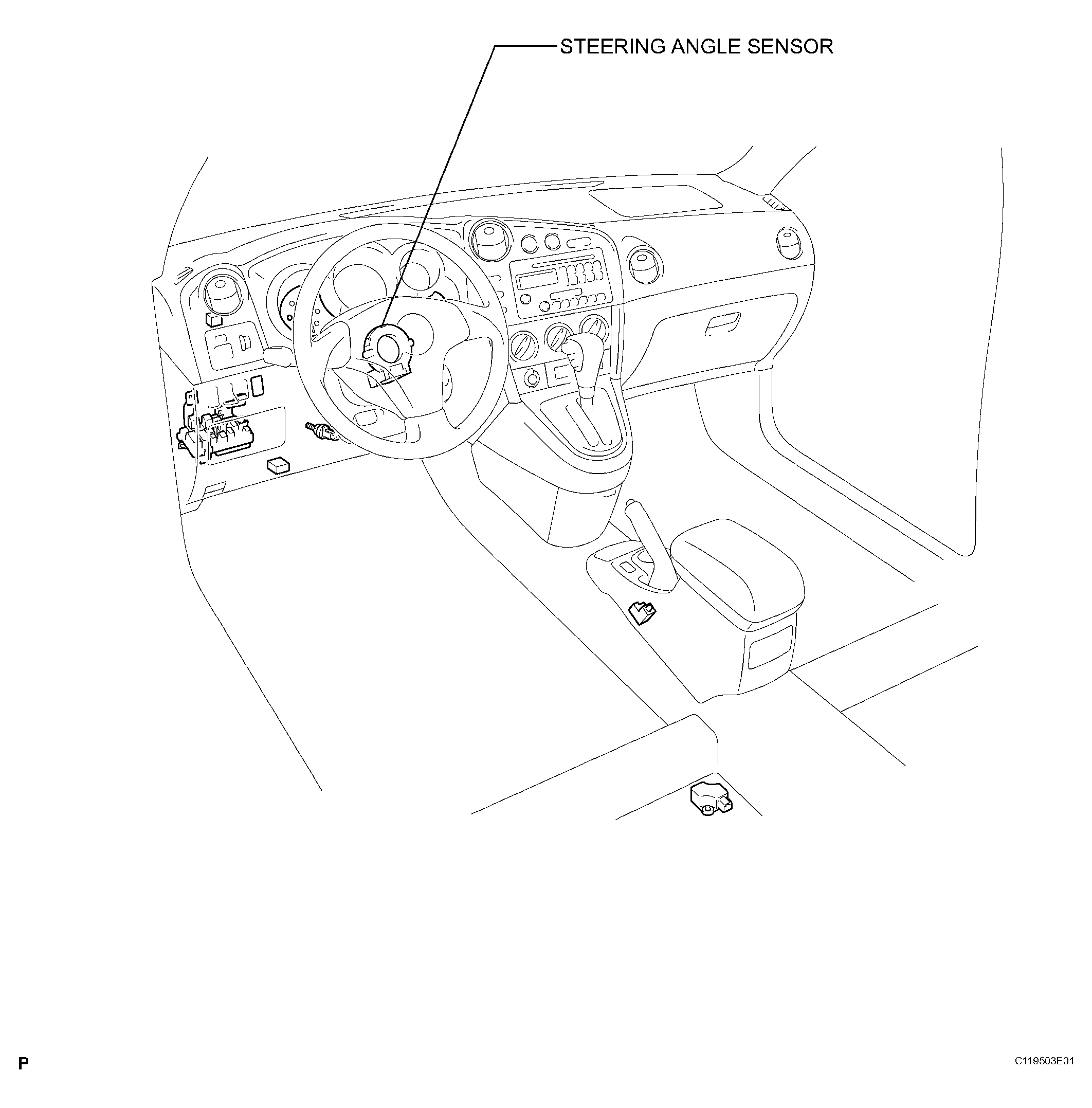

Fig 2: Identifying Steering Angle Sensor Components And Replacements (2 Of 2)
G04465382Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
