Transmission Wire: Installation

INSTALL TRANSMISSION WIRE
1. Coat a O-ring with ATF.
2. Install the transmission wire.

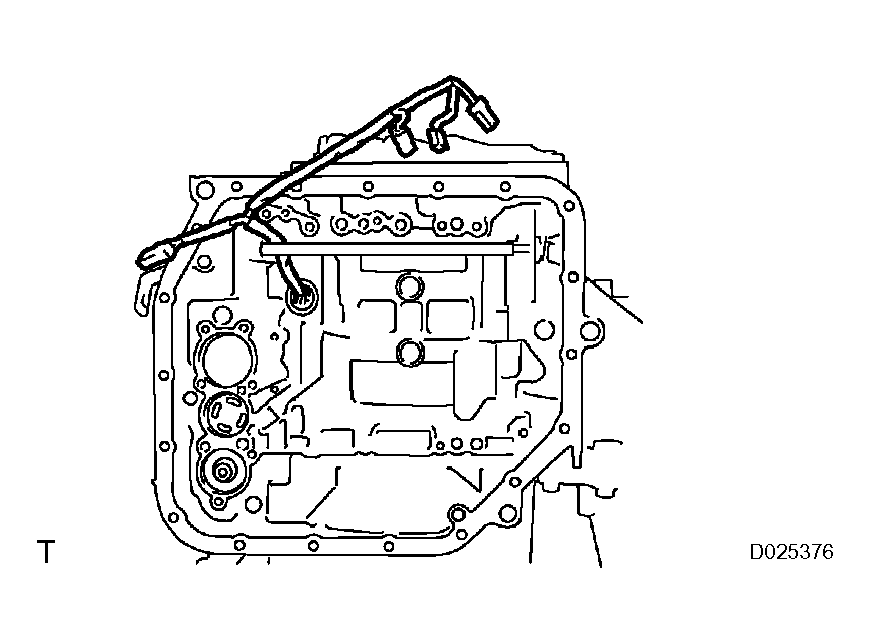

  Fig 1: Installing Transmission Wire
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the bolt.
  Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)
INSTALL TRANSMISSION VALVE BODY ASSEMBLY
HINT:

(See INSTALLATION )

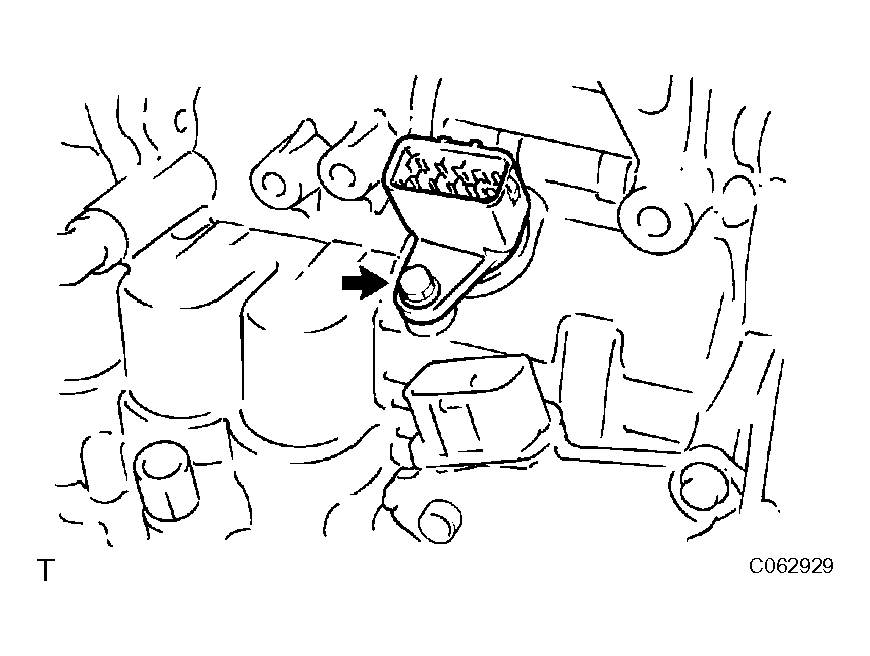

Fig 2: Installing Bolt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
