Transmission Revolution Sensor: Removal

  1. REMOVE AIR CLEANER ASSEMBLY WITH HOSE
  2. REMOVE TRANSMISSION REVOLUTION SENSOR
    1. Disconnect the connector.
    2. Remove the bolt and transmission revolution sensor.

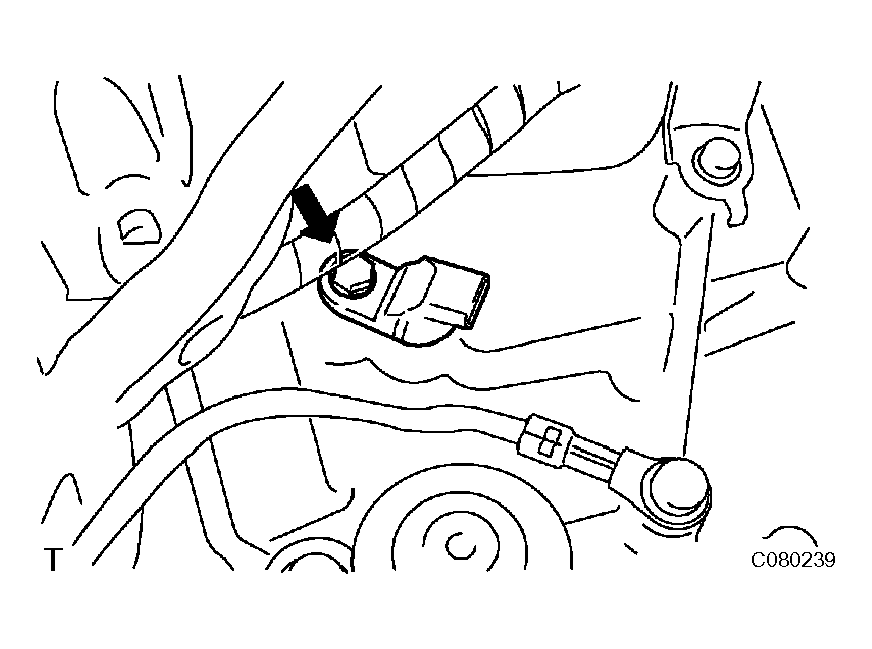

      Fig 1: Removing Bolt And Transmission Revolution Sensor
      G04463294Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
