Transaxle Rear Cover: Reassembly

  1. INSTALL TRANSAXLE REAR COVER NEEDLE ROLLER BEARING
    1. Using SST and a press, install a new transaxle rear cover needle roller bearing to the transaxle rear cover.

      SST 09950-60010 (09951-00190, 09952-06010), 09950-70010 (09951-07100)

      Standard clearance: 25.2 mm (0.992 in.)

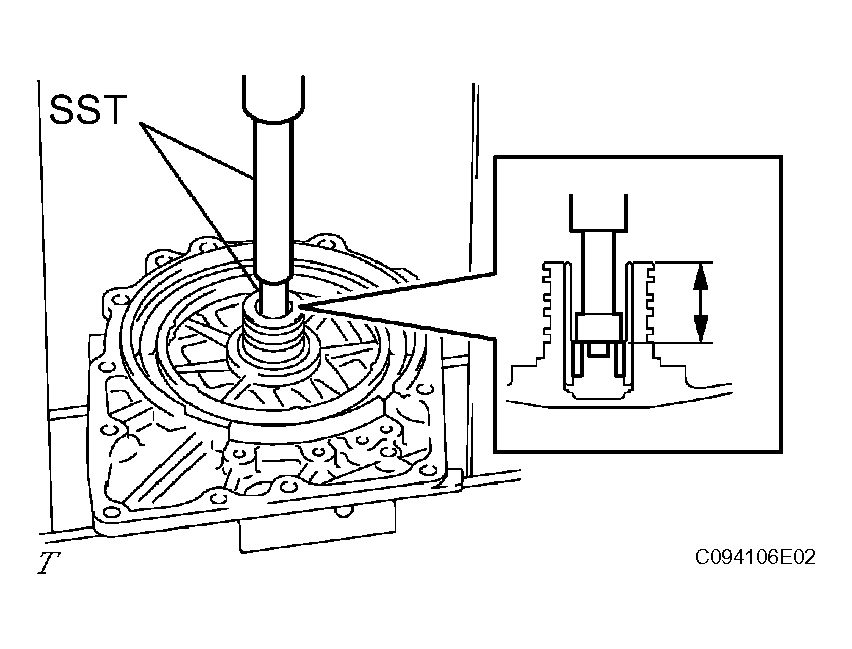

      Fig 1: Installing Transaxle Rear Cover Needle Roller Bearing To Transaxle Rear Cover
      G04463735Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL CLUTCH DRUM OIL SEAL RING
    1. Compress the oil seal ring from both sides to reduce dimension A.

      Dimension A: 5.0 mm (0.197 in.)

    2. Coat the oil seal ring with ATF and install it to the transaxle rear cover.

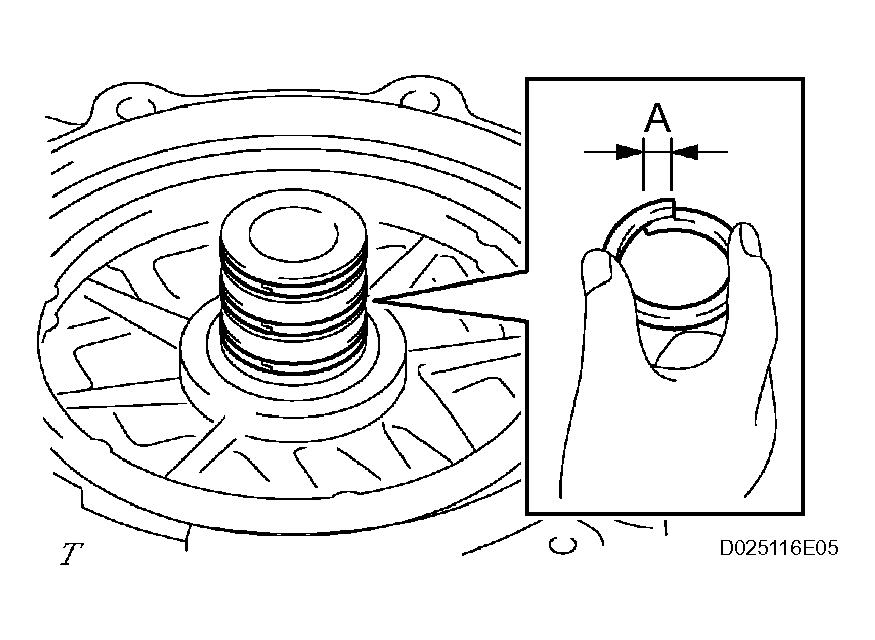

      Fig 2: Compressing Oil Seal Ring
      G04463736Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL O-RING
    1. Coat 2 new O-rings with ATF, install them to the 2nd coast & overdrive brake piston.
      NOTE: Be careful not to damage the oil seal lip.
      Fig 3: Installing O-Ring
      G04463737Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL 2ND COAST & OVERDRIVE BRAKE PISTON
    1. Coat the 2nd coast & overdrive brake piston with ATF, install it to the transaxle rear cover.
      NOTE: Be careful not to damage the oil seal lip.
      Fig 4: Installing 2nd Coast & Overdrive Brake Piston
      G04463738Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL OVERDRIVE BRAKE RETURN SPRING SUB-ASSEMBLY
    1. Using SST and a press, install the overdrive brake return spring sub-assembly and snap ring to the transaxle rear cover.

      SST 09387-00070

      NOTE: Stop the press when the overdrive brake piston is lowered 1 to 2 mm (0.039 to 0.078 in.) from the snap ring groove, preventing the overdrive brake piston from deformed.

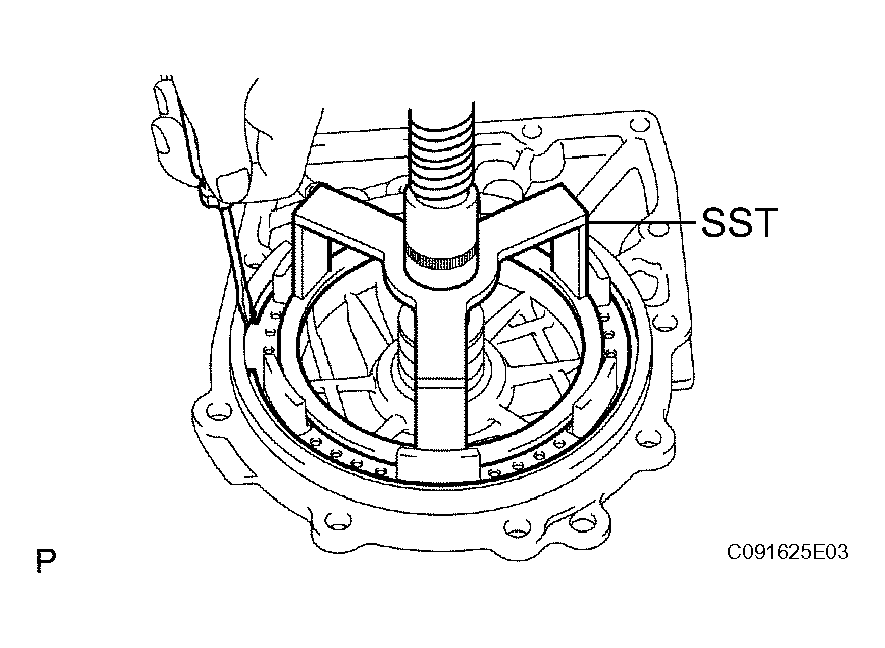

      Fig 5: Installing Overdrive Brake Return Spring Sub-Assembly
      G04463739Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL TRANSAXLE REAR COVER PLUG
    1. Coat 4 new O-rings with ATF, install them to the 4 screw plugs.
    2. Install the 4 transaxle rear cover plugs to the transaxle rear cover.

      Torque: 7.4 N*m (75 kgf*cm, 65 in.*lbf)

      NOTE: Be careful not to damage the oil seal lip.
      Fig 6: Installing Transaxle Rear Cover Plugs To Transaxle Rear Cover
      G04463740Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
