Oil Pump: Reassembly

INSTALL CLUTCH DRUM OIL SEAL RING
1. Install the 2 clutch drum oil seal rings to the stator shaft assembly.

  Fig 1: Installing Clutch Drum Oil Seal Rings To Stator Shaft Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT OIL PUMP OIL SEAL

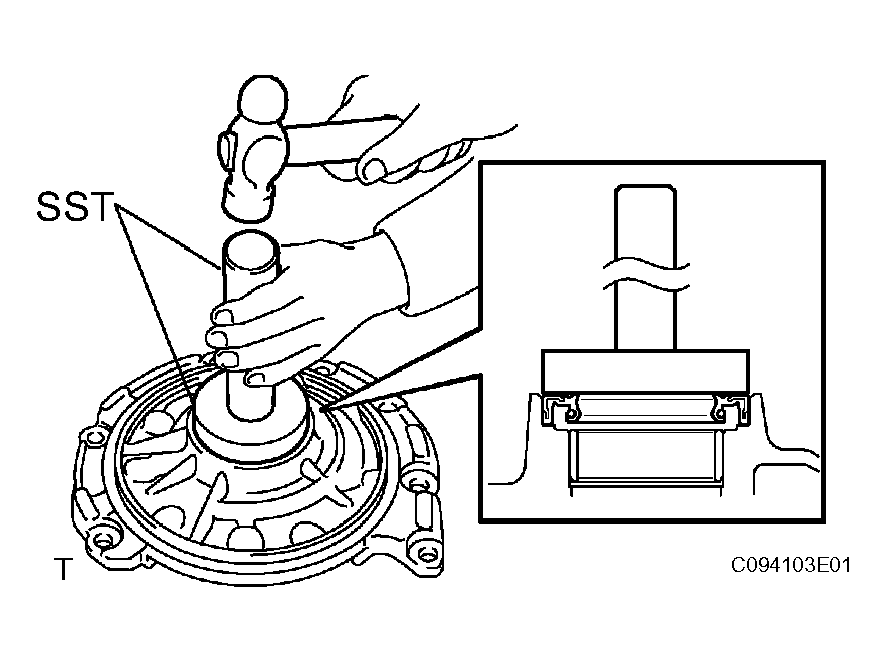

1. Using SST, install the front oil pump oil seal to the oil pump body.
  SST 09950-60010 (09951-00550), 09950-70010 (09951-07100)

  Oil seal in depth: 0 +- 0.5 mm (0 +- 0.020 in.)

  Fig 2: Installing Front Oil Pump Oil Seal To Oil Pump Body
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT OIL PUMP DRIVEN GEAR

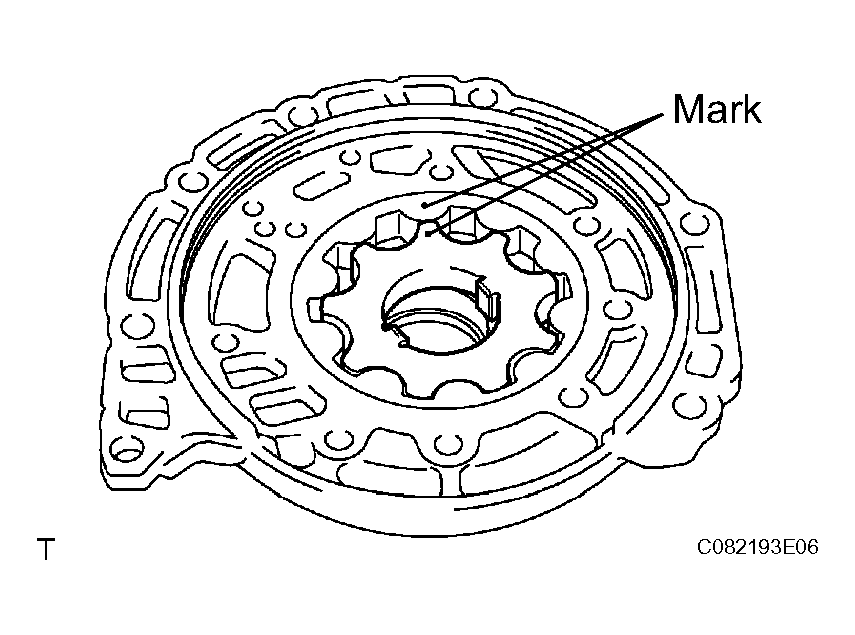

1. Apply ATF to the front oil pump driven gear and install it to the oil pump body with the marked side facing upward.

  Fig 3: Installing Front Oil Pump Driven Gear
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT OIL PUMP DRIVE GEAR

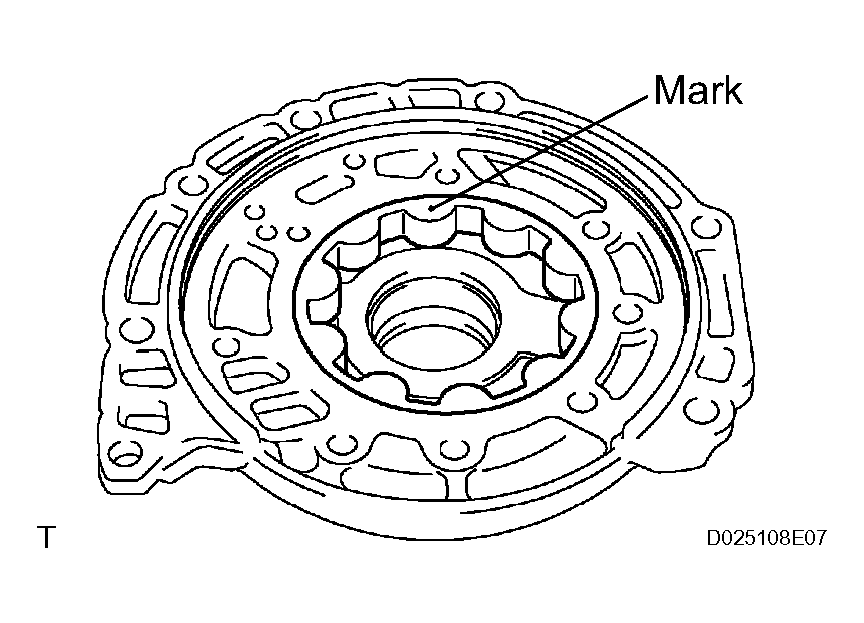

1. Apply ATF to the front oil pump drive gear and install it to the oil pump body with the marked side facing upward.

  Fig 4: Installing Front Oil Pump Drive Gear
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL STATOR SHAFT ASSEMBLY

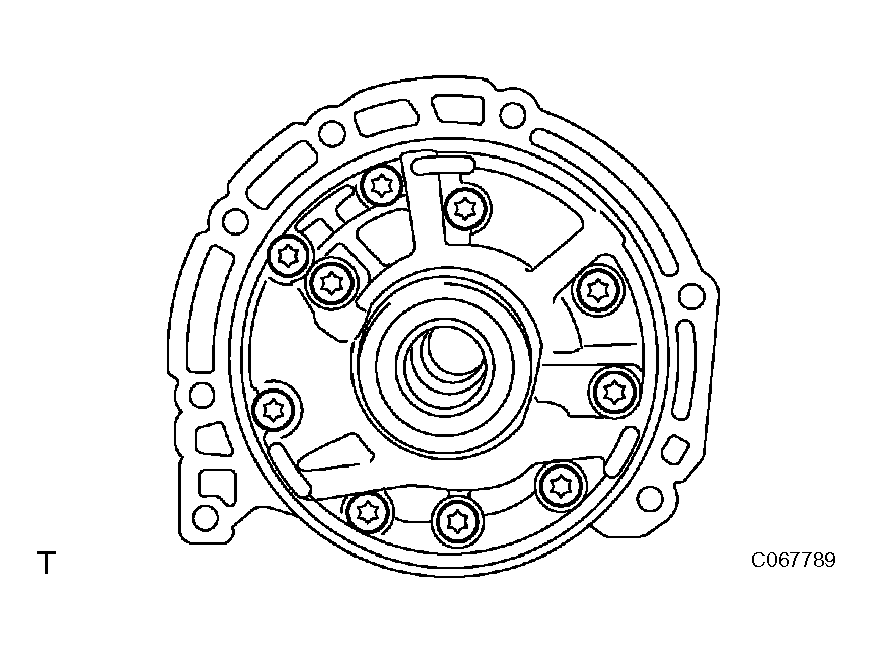

1. Using a "torx" socket wrench (T30), install the stator shaft assembly with the 10 "torx" screws.
  Torque: 9.8 N*m (100 kgf*cm, 87 in.*lbf)

  Fig 5: Installing Stator Shaft Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL OIL PUMP ASSEMBLY

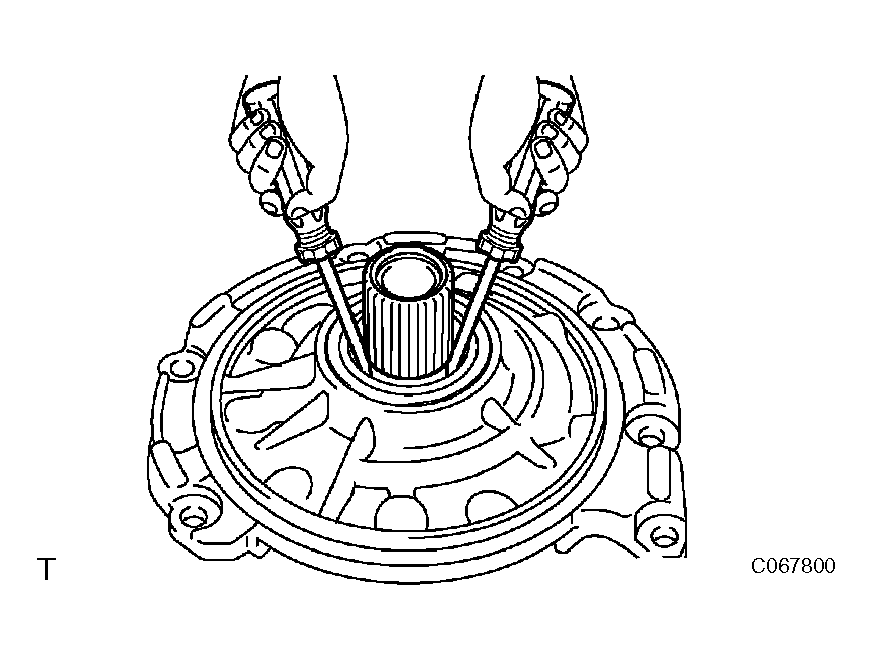

1. Turn the drive gear with 2 screwdrivers and make sure that it rotates smoothly.
  NOTE: Be careful not to damage the oil seal lip.

  Fig 6: Turning Drive Gear With Screwdrivers
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT OIL PUMP BODY O-RING

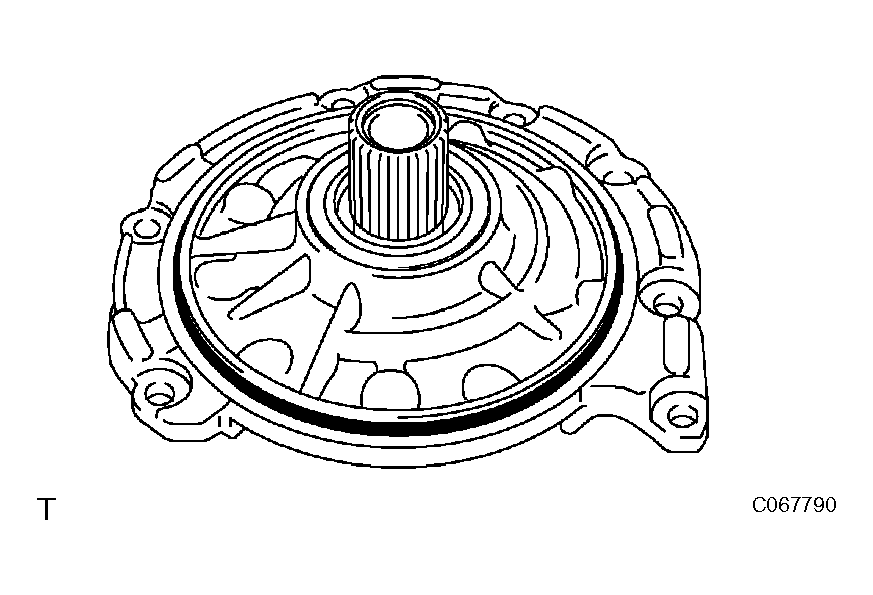

1. Apply ATF to a new front oil pump body O-ring and install it to the oil pump assembly.

  Fig 7: Installing Front Oil Pump Body O-Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
