Oil Pump: Disassembly

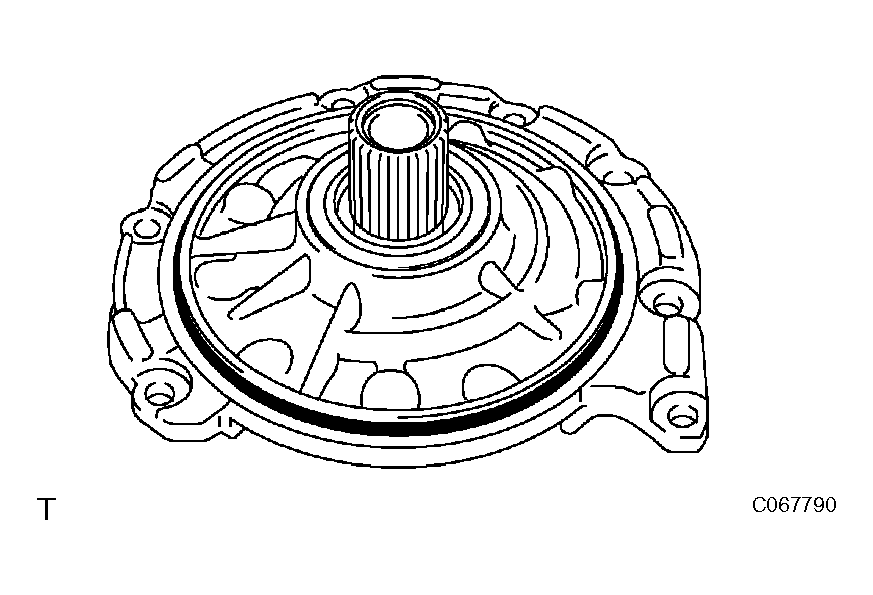

REMOVE FRONT OIL PUMP BODY O-RING
1. Remove the front oil pump body O-ring from the oil pump.
INSPECT STATOR SHAFT ASSEMBLY (See INSPECTION )

Fig 1: Removing Front Oil Pump Body O-Ring From Oil Pump
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

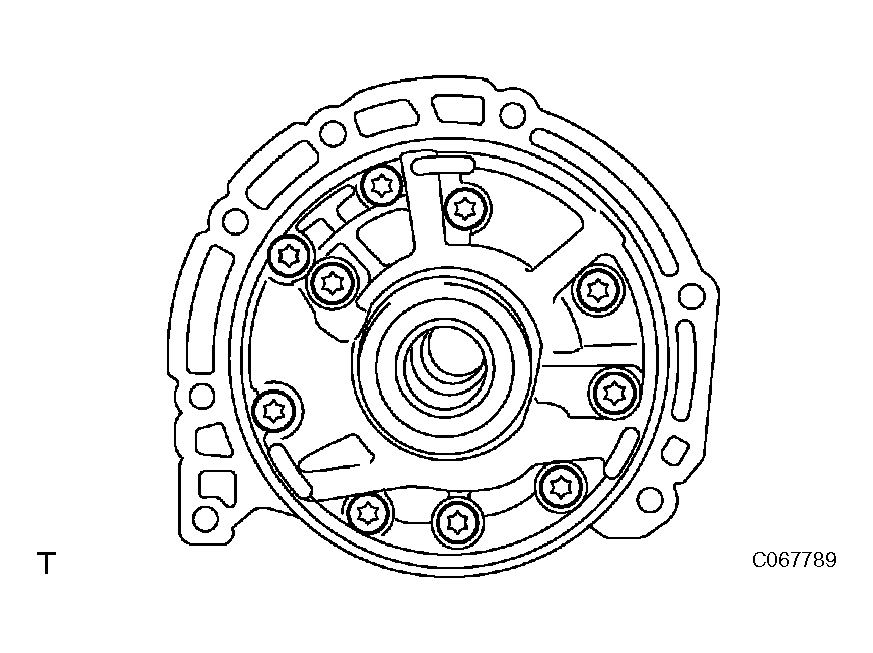

REMOVE STATOR SHAFT ASSEMBLY
1. Using a "torx" socket wrench (T30), remove the 10 "torx" screws and stator shaft assembly.
INSPECT CLEARANCE OF OIL PUMP ASSEMBLY (See INSPECTION )

Fig 2: Removing Screws And Stator Shaft Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

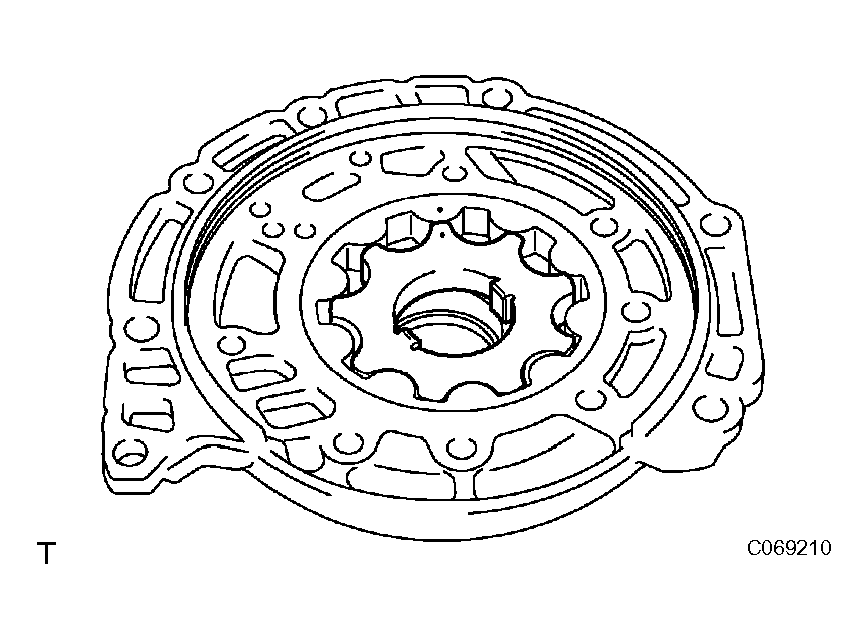

REMOVE FRONT OIL PUMP DRIVE GEAR
1. Remove the front oil pump drive gear from the oil pump body.

  Fig 3: Removing Front Oil Pump Drive Gear From Oil Pump Body
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

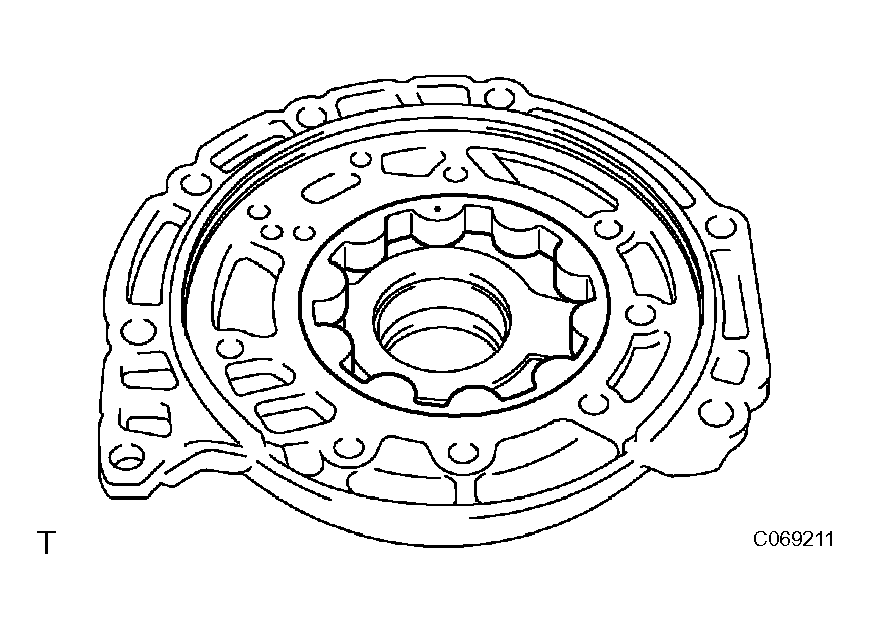

REMOVE FRONT OIL PUMP DRIVEN GEAR
1. Remove the front oil pump driven gear from the oil pump body.

  Fig 4: Removing Front Oil Pump Driven Gear From Oil Pump Body
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

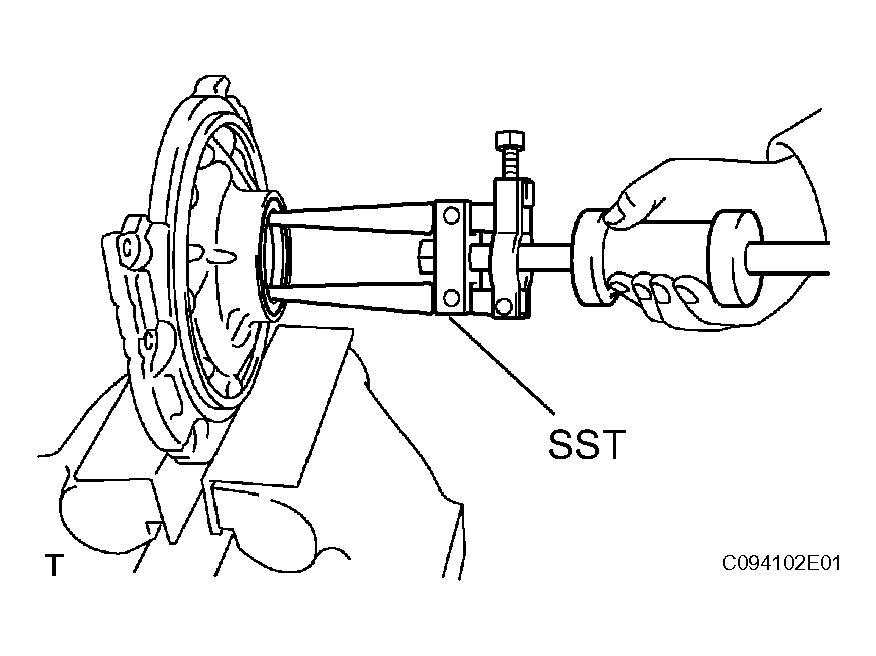

REMOVE FRONT OIL PUMP OIL SEAL
1. Using SST, remove the front oil pump oil seal from the oil pump body.
  SST 09308-00010
INSPECT FRONT OIL PUMP BODY SUB-ASSEMBLY (See INSPECTION )

Fig 5: Removing Front Oil Pump Oil Seal From Oil Pump Body
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE CLUTCH DRUM OIL SEAL RING
1. Using a screwdriver, remove the 2 clutch drum oil seal rings from the stator shaft assembly.

  Fig 6: Removing Clutch Drum Oil Seal Rings From Stator Shaft Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
