Floor Shift Assembly: Adjustment: Reassembly

INSTALL SHIFT LOCK SOLENOID
1. Install the shift lock solenoid to the shift lever plate.

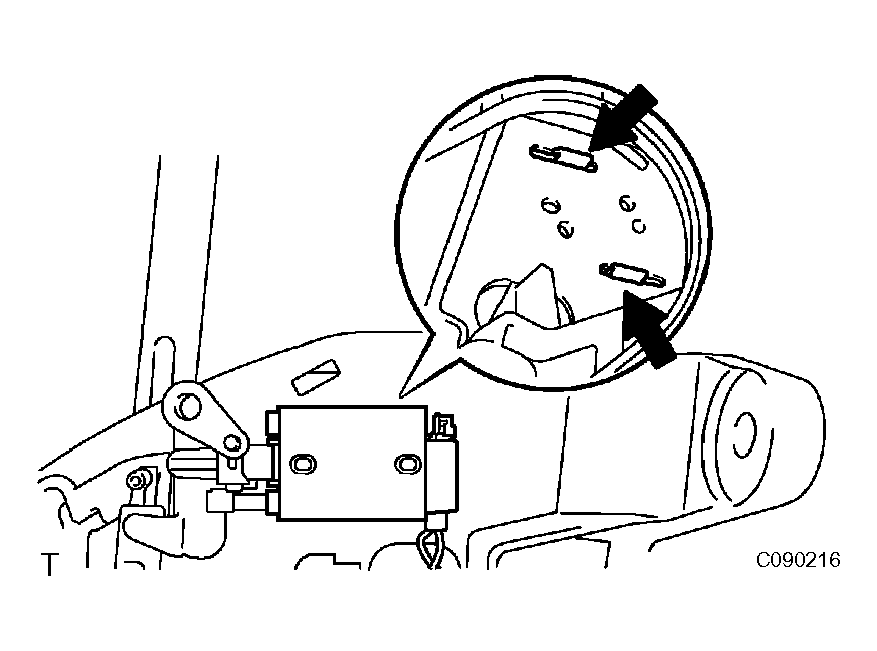

  Fig 1: Installing Shift Lock Solenoid To Shift Lever Plate
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SHIFT LOCK CONTROL ECU
1. Connect the shift lock solenoid connector to the shift lock control ECU.
2. Install the shift lock control ECU with the screw.

  Fig 2: Installing Shift Lock Control ECU With Screw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SHIFT LOCK RELEASE BUTTON
1. Apply MP grease to the spring.
2. Install the shift lock release button and spring.

  Fig 3: Applying MP Grease To Spring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL POSITION INDICATOR SLIDE COVER
1. Install the position indicator slide cover to the position indicator housing lower.

  Fig 4: Installing Position Indicator Slide Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CONTROL POSITION INDICATOR PLATE
1. Install the position indicator plate to the position indicator housing upper.

  Fig 5: Installing Position Indicator Plate
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SHIFT LOCK RELEASE BUTTON COVER
1. Install the shift lock release button cover.

  Fig 6: Installing Shift Lock Release Button Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL POSITION INDICATOR HOUSING UPPER
1. Install the position indicator housing upper to the position indicator housing lower.
  HINT:

  Fit the claws securely.

  Fig 7: Installing Position Indicator Housing Upper
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL POSITION INDICATOR HOUSING LOWER
1. Install the position indicator housing lower with the position indicator housing upper to the shift lever plate.
  HINT:

  Fit the claws securely.

  Fig 8: Installing Position Indicator Housing Lower
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL INDICATOR LIGHT WIRE SUB-ASSEMBLY
1. Install the indicator light wire sub-assembly to the position indicator housing lower.

  Fig 9: Installing Indicator Light Wire Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL TRANSMISSION CONTROL SWITCH
1. Insert the wire harness into the shift lever knob from the part shown by the arrow, and install the transmission control switch to the shift lever knob.

  Fig 10: Inserting Wire Harness Into Shift Lever Knob From Part
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL POSITION INDICATOR SLIDE COVER
1. Install the position indicator slide cover No. 2 to the shift lever knob.

  Fig 11: Installing Position Indicator Slide Cover No. 2 To Shift Lever Knob
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SHIFT LEVER KNOB BUTTON
1. Apply MP grease to the spring and shift lever knob button.
2. Install the spring and shift lever knob button to the shift lever knob.

  Fig 12: Applying MP Grease To Spring And Shift Lever Knob Button
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY
1. Install the shift lever knob with the 2 screws.

  Fig 13: Installing Shift Lever Knob With Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the 2 wire harness of transmission control switch to the connector of indicator light wire.

  Fig 14: Connecting Wire Harness Of Transmission Control Switch To Connector Of Indicator Light Wire
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

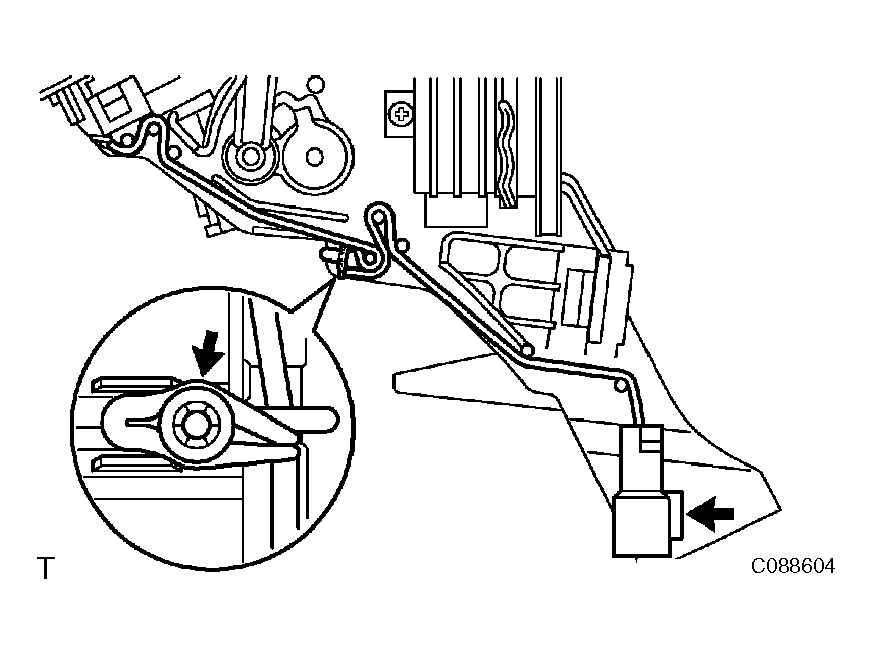

3. Install the wire harness with a new push nut to the shift lever plate as shown in the illustration.
4. Connect the indicator light wire connector to the shift lever plate.

  Fig 15: Connecting Indicator Light Wire Connector To Shift Lever Plate
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
