Automatic Transmission - U341F
>>
Automatic Transaxle System
>>
Parts Location
Parts Location

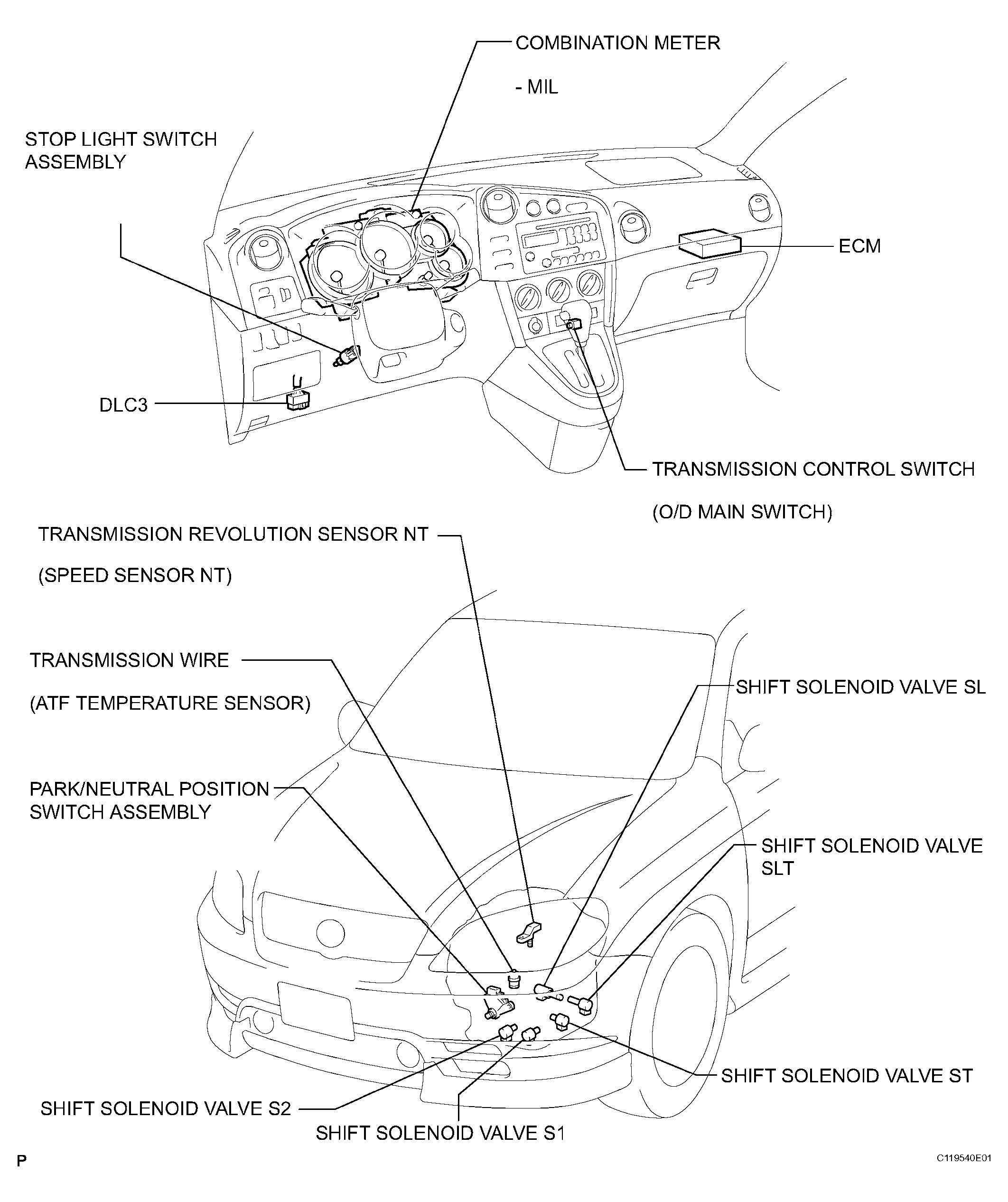

Fig 1: Identifying U341F Automatic Transmission Parts Location
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
