Home >> Toyota >> 2006 >> Matrix Base, 4WD >> Repair and Diagnosis >> Steering >> Manual Steering >> Power Steering >> Vane Pump >> Components

Vane Pump: Components

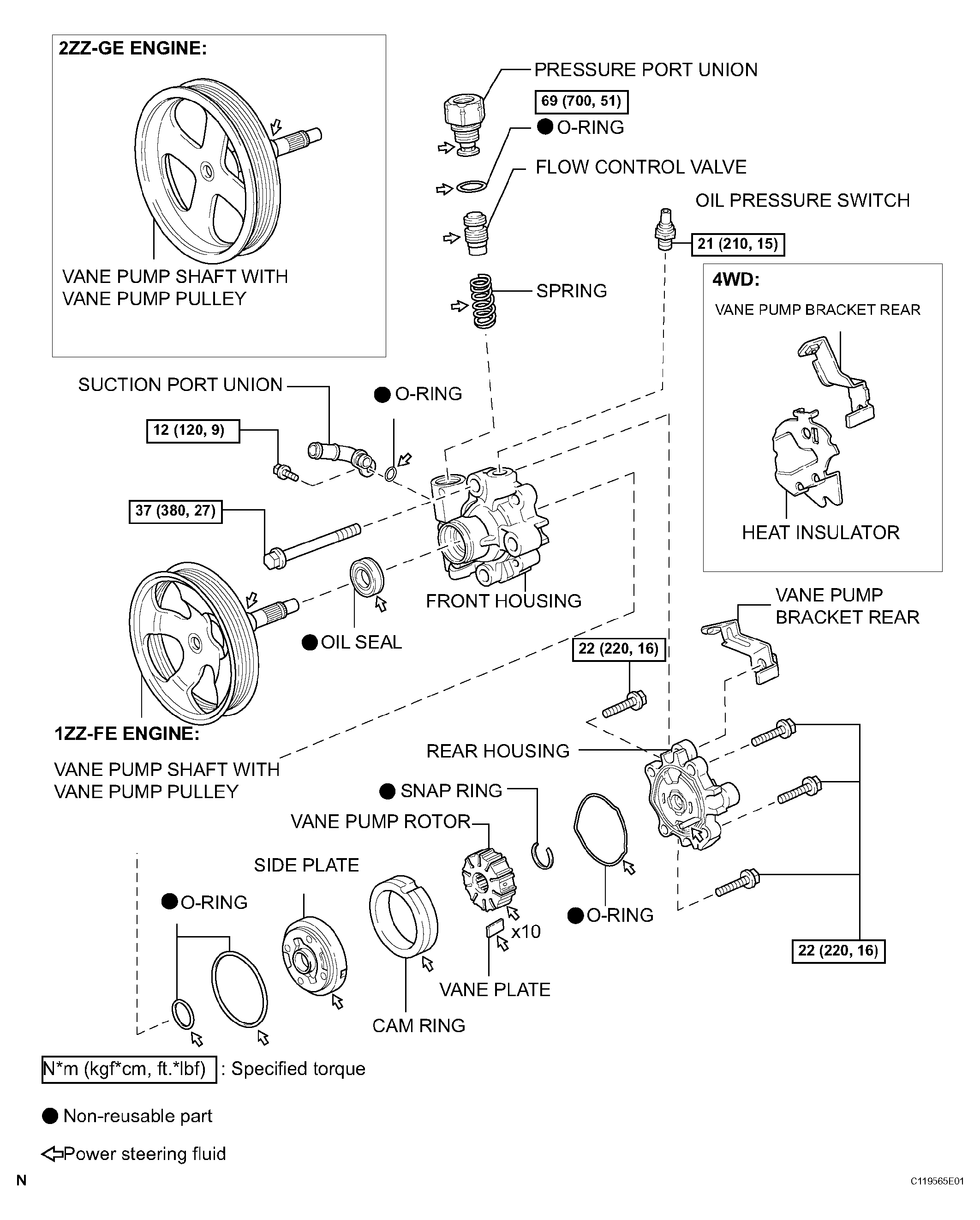

Fig 1: Vane Pump Replacement Components With Torque Specifications

G04465606

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
