1GR-FE 4.0L
TID $07: A/F SENSOR HEATER
| TLT | CID | Unit Conversion | Description of Test Data | Description of Test Limit |
|---|---|---|---|---|
| 1 | $01 | Multiply by 0.00017 (A) | Maximum heater current (Bank 1) | Malfunction criterion for A/F sensor heater |
| 1 | $10 | Multiply by 0.00017 (A) | Maximum heater current (Bank 2) | Malfunction criterion for A/F sensor heater |
TID $04: HO2S HEATER
| TLT | CID | Unit Conversion | Description of Test Data | Description of Test Limit |
|---|---|---|---|---|
| 1 | $02 | Multiply by 0.000076 (A) | Maximum HO2S heater current (Bank 1 Sensor 2) | Malfunction threshold for HO2S heater |
| 1 | $04 | Multiply by 0.000076 (A) | Maximum HO2S heater current (Bank 1 Sensor 3) | Malfunction threshold for HO2S heater |
| 1 | $20 | Multiply by 0.000076 (A) | Maximum HO2S heater current (Bank 2 Sensor 2) | Malfunction threshold for HO2S heater |
| 1 | $40 | Multiply by 0.000076 (A) | Maximum HO2S heater current (Bank 2 Sensor 3) | Malfunction threshold for HO2S heater |
TID $08: THERMOSTAT
| TLT | CID | Unit Conversion | Description of Test Data | Description of Test Limit |
|---|---|---|---|---|
| 1 | $01 | Multiply by 0.625 and subtract (40°C) | ECT sensor output when estimated ECT has reached to malfunction criterion | Malfunction criteria for thermostat |
HEATED OXYGEN SENSOR OUTPUT VOLTAGE
| Test ID/Comp ID | Description of Test Date | Conversion Factor | Unit |
|---|---|---|---|
| $07 | The minimum sensor voltage while the malfunction is being monitored | N/A | V |
| $08 | The maximum sensor voltage while the malfunction is being monitored | N/A | V |
HEATED OXYGEN SENSOR OUTPUT VOLTAGE
| Test ID/Comp ID | Description of Test Data | Conversion Factor | Unit |
|---|---|---|---|
| $81 | Percentage of monitoring time where heated oxygen sensor voltage is less than 0.05 V | Multiply 0.3906 | % |
| $84 | Percentage of monitoring time where heated oxygen sensor voltage is 0.70 V or more | Multiply 0.3906 | % |
| $85 | Maximum Rich (0.45 V or more) time | Multiply 0.2621 | second |
MISFIRE MONITOR - ALL CYLINDERS
| MID | TID | Scaling | Description of Test Value | Minimum Test Limit | Maximum Test Limit |
|---|---|---|---|---|---|
| $A1 | $0B | Multiply by 1 [time] | Exponential Weighted Moving Average misfire counts for last 10 driving cycles - total | 0 | 65535 |
| $A1 | $0C | Multiply by 1 [time] | Misfire counts for last and current driving cycles -total | 0 | 65535 |
MISFIRE MONITOR - CYLINDER 1
| MID | TID | Scaling | Description of Test Value | Minimum Test Limit | Maximum Test Limit |
|---|---|---|---|---|---|
| $A2 | $0B | Multiply by 1 [time] | Exponential Weighted Moving Average misfire counts for last 10 driving cycles - total | 0 | 65535 |
| $A2 | $0C | Multiply by 1 [time] | Misfire counts for last and current driving cycles -total | 0 | 65535 |
MISFIRE MONITOR - CYLINDER 2
| MID | TID | Scaling | Description of Test Value | Minimum Test Limit | Maximum Test Limit |
|---|---|---|---|---|---|
| $A3 | $0B | Multiply by 1 [time] | Exponential Weighted Moving Average misfire counts for last 10 driving cycles - total | 0 | 65535 |
| $A3 | $0C | Multiply by 1 [time] | Misfire counts for last and current driving cycles -total | 0 | 65535 |
MISFIRE MONITOR - CYLINDER 3
| MID | TID | Scaling | Description of Test Value | Minimum Test Limit | Maximum Test Limit |
|---|---|---|---|---|---|
| $A3 | $0B | Multiply by 1 [time] | Exponential Weighted Moving Average misfire counts for last 10 driving cycles - total | 0 | 65535 |
| $A3 | $0C | Multiply by 1 [time] | Misfire counts for last and current driving cycles -total | 0 | 65535 |
MISFIRE MONITOR - CYLINDER 4
| MID | TID | Scaling | Description of Test Value | Minimum Test Limit | Maximum Test Limit |
|---|---|---|---|---|---|
| $A4 | $0B | Multiply by 1 [time] | Exponential Weighted Moving Average misfire counts for last 10 driving cycles - total | 0 | 65535 |
| $A4 | $0C | Multiply by 1 [time] | Misfire counts for last and current driving cycles -total | 0 | 65535 |
MISFIRE MONITOR - CYLINDER 5
| MID | TID | Scaling | Description of Test Value | Minimum Test Limit | Maximum Test Limit |
|---|---|---|---|---|---|
| $A5 | $0B | Multiply by 1 [time] | Exponential Weighted Moving Average misfire counts for last 10 driving cycles - total | 0 | 65535 |
| $A5 | $0C | Multiply by 1 [time] | Misfire counts for last and current driving cycles -total | 0 | 65535 |
MISFIRE MONITOR - CYLINDER 6
| MID | TID | Scaling | Description of Test Value | Minimum Test Limit | Maximum Test Limit |
|---|---|---|---|---|---|
| $A6 | $0B | Multiply by 1 [time] | Exponential Weighted Moving Average misfire counts for last 10 driving cycles -total | 0 | 65535 |
| $A6 | $0C | Multiply by 1 [time] | Misfire counts for last and current driving cycles -total | 0 | 65535 |
TID $01: CATALYST (ACTIVE A/F CONTROL METHOD)
| TLT | CID | Unit Conversion | Description of Test Data | Description of Test Limit |
|---|---|---|---|---|
| 1 | $01 | Multiply by 0.0078 (no dimension) | Oxygen storage capacity (bank 1): Calculated by HO2S sensor 2 output |
Malfunction criteria for catalyst deterioration |
| 1 | $02 | Multiply by 0.0078 (no dimension) | Oxygen storage capacity (bank 2): Calculated by HO2S sensor 2 output |
Malfunction criteria for catalyst deterioration |
TID $06: A/F SENSOR (ACTIVE A/F CONTROL METHOD)
| TLT | CID | Unit Conversion | Description of Test Data | Description of Test Limit |
|---|---|---|---|---|
| 1 | $01 | Multiply by 0.0003 (V) |
Cumulative A/F sensor locus length (Bank 1) | Lower malfunction criterion for A/F sensor |
| 0 | $01 | Multiply by 0.0003 (V) |
Cumulative A/F sensor locus length (Bank 1) | Upper malfunction criterion for A/F sensor |
| 1 | $11 | Multiply by 0.0003 (V) |
Cumulative A/F sensor locus length (Bank 2) | Lower malfunction criterion for A/F sensor |
| 0 | $11 | Multiply by 0.0003 (V) |
Cumulative A/F sensor locus length (Bank 2) | Upper malfunction criterion for A/F sensor |
| 1 | $02 | Multiply by 0.000039 (A) |
A/F sensor current (Bank 1) | Lower malfunction criterion for A/F sensor |
| 0 | $02 | Multiply by 0.000039 (A) |
A/F sensor current (Bank 1) | Upper malfunction criterion for A/F sensor |
| 1 | $12 | Multiply by 0.000039 (A) |
A/F sensor current (Bank 2) | Lower malfunction criterion for A/F sensor |
| 0 | $12 | Multiply by 0.000039 (A) |
A/F sensor current (Bank 2) | Upper malfunction criterion for A/F sensor |

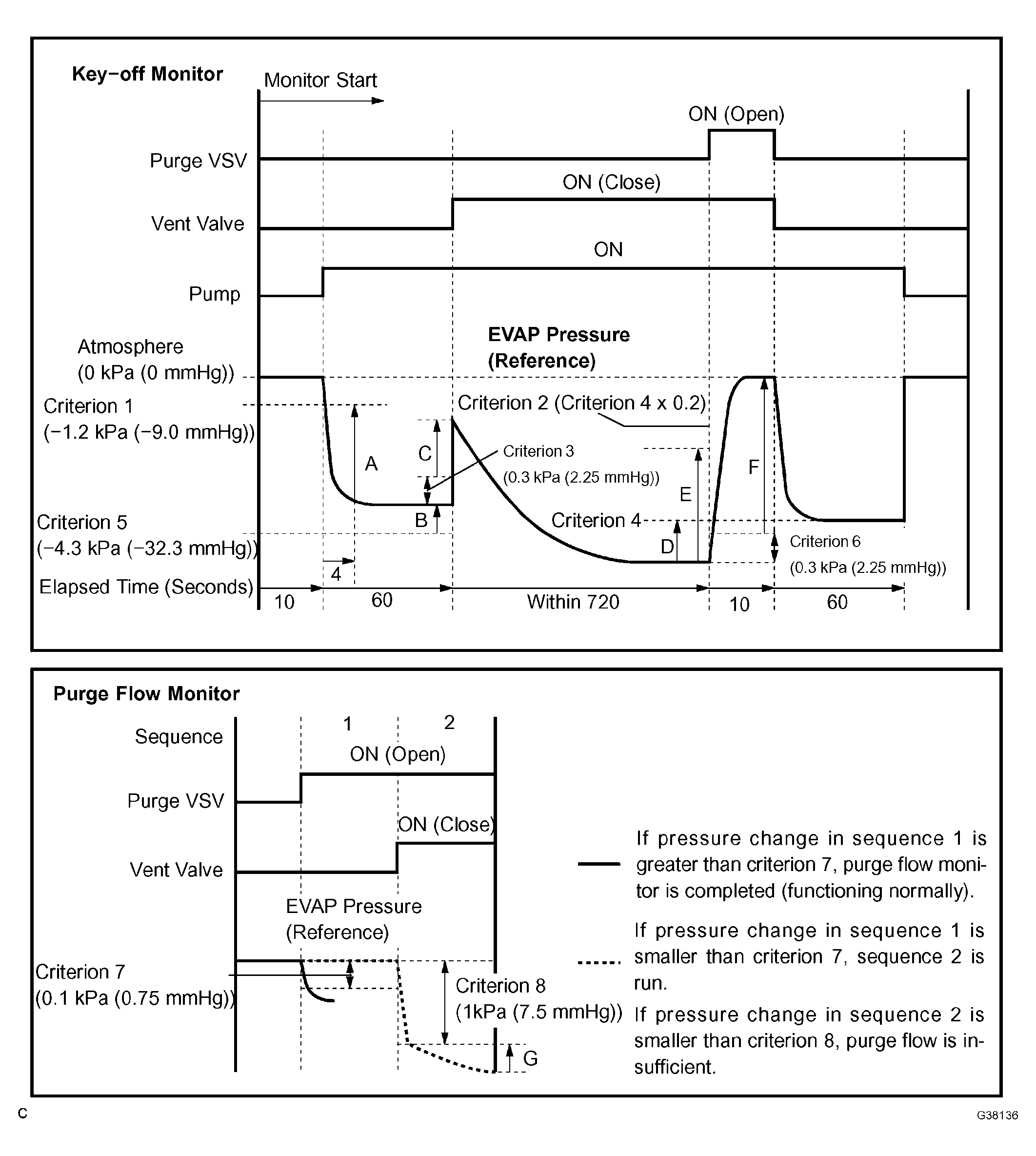

EVAP
| MID | TID | Scaling | Description of Test Value | Minimum Test Limit | Maximum Test Limit | ||
|---|---|---|---|---|---|---|---|
| $3D | $C9 | Multiply by 0.01 [kPa] | Test value for small leak (P0456). Refer to pressure D(1) |
Minimum test limit for small leak | Maximum test limit for small leak | ||
| $3D | $CA | Multiply by 0.01 [kPa] | Test value for gross leak (P0455). Refer to pressure E(1) |
Minimum test limit for gross leak | Maximum test limit for gross leak | ||
| $3D | $CB | Multiply by 0.01 [kPa] | Test value for vacuum pump stuck OFF (P2401). Refer to pressure A(1) |
Minimum test limit for vacuum pump stuck OFF | Maximum test limit for vacuum pump stuck OFF | ||
| $3D | $CD | Multiply by 0.01 [kPa] | Test value for vacuum pump stuck ON (P2402). Refer to pressure A(1) |
Minimum test limit for vacuum pump stuck ON | Maximum test limit for vacuum pump stuck ON | ||
| $3D | $CE | Multiply by 0.01 [kPa] | Test value for vent valve stuck OFF (vent) (P2420). Refer to pressure C(1) |
Minimum test limit for vent valve stuck ON | Maximum test limit for vent valve stuck ON | ||
| $3D | $CF | Multiply by 0.01 [kPa] | Test value for vent valve stuck ON (P2419). Refer to pressure A(1) |
Minimum test limit for vent valve stuck OFF | Maximum test limit for vent valve stuck OFF | ||
| $3D | $D0 | Multiply by 0.01 [kPa] | Test value for 0.02 inch orifice low flow (P043E). Refer to pressure B(1) |
Minimum test limit for 0.02 inch low flow | Maximum test limit for 0.02 inch low flow | ||
| $3D | $D1 | Multiply by 0.01 [kPa] | Test value for 0.02 inch orifice high flow (P043F). Refer to pressure A(1) |
Minimum test limit for 0.02 inch high flow | Maximum test limit for 0.02 inch high flow | ||
| $3D | $D4 | Multiply by 0.01 [kPa] | Test value for purge VSV stuck close (P0441). Refer to pressure F(1) |
Minimum test limit for purge VSV stuck close | Maximum test limit for purge VSV stuck close | ||
| $3D | $D5 | Multiply by 0.01 [kPa] | Test value for purge VSV stuck open (P0441). Refer to pressure E(1) |
Minimum test limit for purge VSV stuck open | Maximum test limit for purge VSV stuck open | ||
| $3D | $D7 | Multiply by 0.01 [kPa] | Test value for purge flow (P0441). Refer to pressure G(1) |
Minimum test limit for purge flow | Maximum test limit for purge flow | ||
|
|||||||
