Front Axle Hub: Removal

  1. REMOVE FRONT WHEEL
  2. REMOVE FRONT AXLE HUB LH NUT

    SST 09930-00010

    Proceed to:

    ENGINE TYPE - PROCEED TO (REMOVE FRONT AXLE HUB LH NUT)

    Engine Type Proceed to
    1ZZ-FE See REMOVAL
    2ZZ-GE See REMOVAL
  3. SEPARATE FRONT STABILIZER LINK ASSEMBLY LH

    Proceed to:

    ENGINE TYPE - PROCEED TO (SEPARATE FRONT STABILIZER LINK ASSEMBLY LH)

    Engine Type Proceed to
    1ZZ-FE See REMOVAL
    2ZZ-GE See REMOVAL
  4. SEPARATE FRONT SPEED SENSOR LH

    Proceed to:

    ENGINE TYPE - PROCEED TO (SEPARATE FRONT SPEED SENSOR LH)

    Engine Type Proceed to
    1ZZ-FE See REMOVAL
    2ZZ-GE See REMOVAL
  5. SEPARATE FRONT DISC BRAKE CALIPER ASSEMBLY LH
    1. Remove the 2 bolts, separate the brake caliper assembly LH from the steering knuckle.
  6. REMOVE FRONT DISC
  7. SEPARATE TIE ROD END SUB-ASSEMBLY LH

    SST 09628-62011

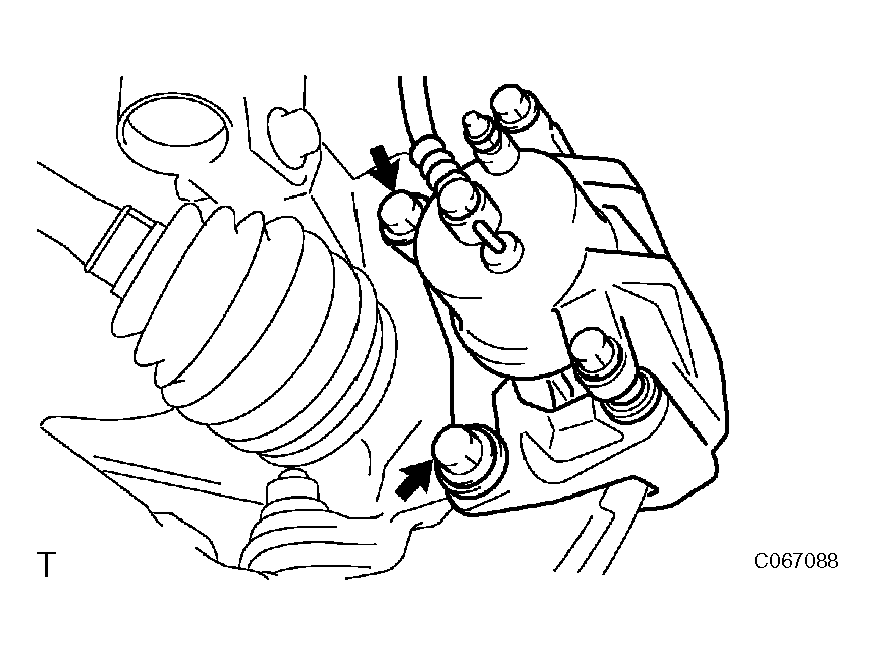

    Fig 1: Separating Front Disc Brake Caliper Assembly LH
    G04464849Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Proceed to:

    ENGINE TYPE - PROCEED TO

    Engine Type Proceed to
    1ZZ-FE See REMOVAL
    2ZZ-GE See REMOVAL
  8. SEPARATE NO. 1 FRONT SUSPENSION ARM SUBASSEMBLY LOWER LH

    Proceed to:

    ENGINE TYPE - PROCEED TO (SEPARATE NO. 1 FRONT SUSPENSION ARM SUBASSEMBLY LOWER LH)

    Engine Type Proceed to
    1ZZ-FE See REMOVAL
    2ZZ-GE See REMOVAL
  9. REMOVE FRONT AXLE ASSEMBLY LH
    1. Using a plastic hammer, separate the drive shaft from the axle hub.
      NOTE:
      • Be careful not to damage the boot.
      • With ABS:

        Be careful not to damage the speed sensor rotor.

      Fig 2: Separating Drive Shaft From Axle Hub
      G04464850Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 bolts, 2 nuts and front axle assembly LH.
      Fig 3: Removing Front Axle Assembly LH
      G04464851Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE FRONT LOWER BALL JOINT ASSEMBLY LH
    1. Remove the cotter pin and nut.
    2. Using SST, remove the lower ball joint assembly front LH.

      SST 09628-62011

      Fig 4: Removing Front Lower Ball Joint Assembly LH
      G04464852Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE FRONT AXLE HUB LH HOLE SNAP RING
    1. Using snap ring pliers, remove the LH hole snap ring.
      Fig 5: Removing Front Axle Hub LH Hole Snap Ring
      G04464853Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE FRONT AXLE HUB SUB-ASSEMBLY LH
    1. Using SST, remove the hub sub-assembly LH.

      SST 09520-00031

      Fig 6: Removing Hub Sub-Assembly LH
      G04464854Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using SST, remove the inner race of hub LH bearing from the hub sub-assembly LH.

      SST 09950-40011 (09951-04020, 09952-04010, 09953-04030, 09954-04010, 09955-04061, 09957-04010, 09958-04011), 09950-60010 (09951-00370)

  13. REMOVE FRONT DISC BRAKE DUST COVER LH
    1. Remove the 3 bolts and front dust cover LH.
      Fig 7: Removing Inner Race Of Hub LH Bearing From Hub Sub-Assembly LH
      G04464855Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE FRONT AXLE HUB LH BEARING
    1. Place the inner race of hub LH bearing on the outer race of hub LH bearing.
    2. Using SST and a press, remove the hub LH bearing from the steering knuckle.

      SST 09527-17011, 09950-60010 (09951-00640), 09950-70010 (09951-07100)

      Fig 8: Removing Front Axle Hub LH Bearing
      G04464856Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
