System Diagram

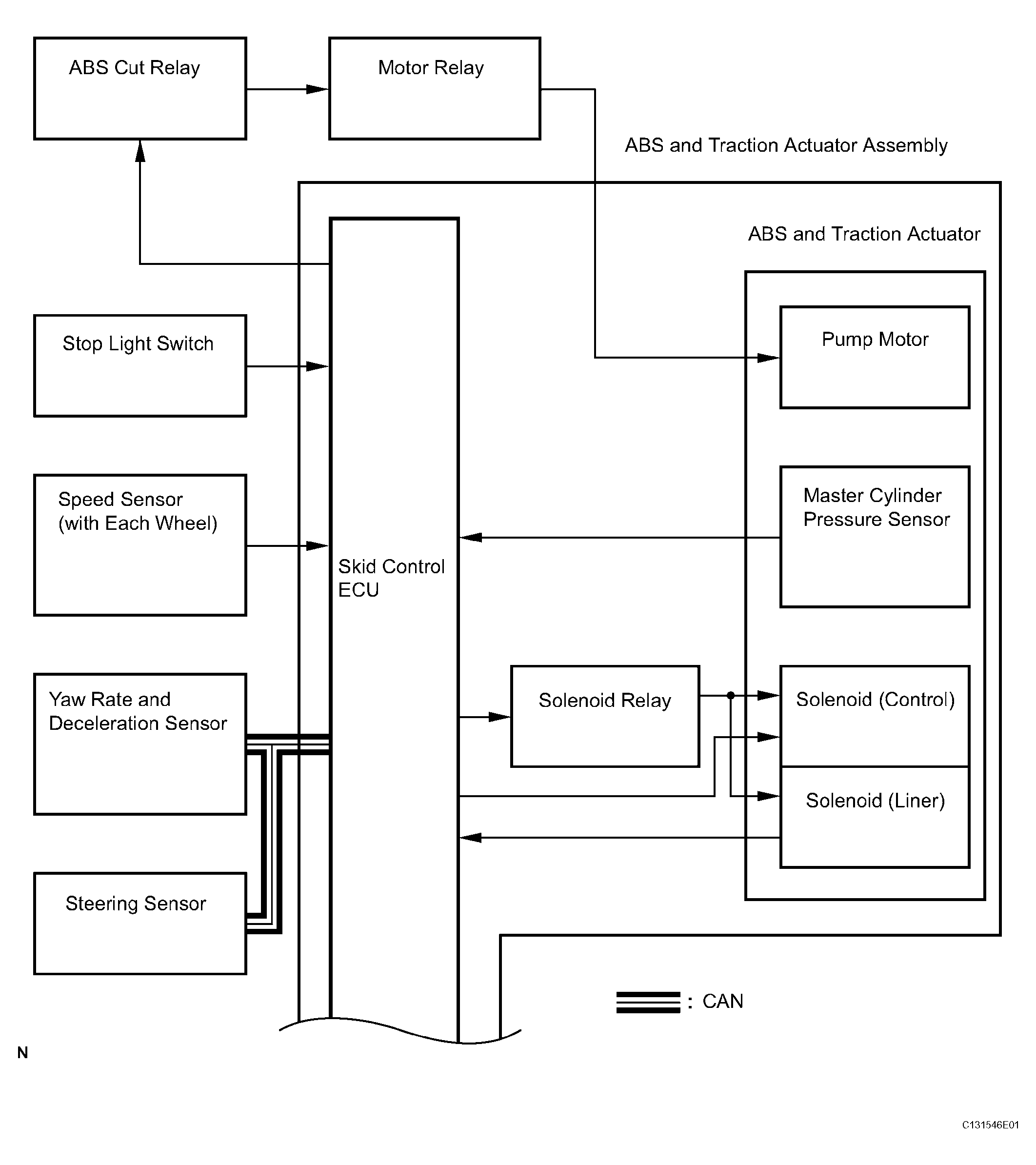

Fig 1: Identifying Vehicle Stability Control System Diagram (1 Of 2)
G04465197Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

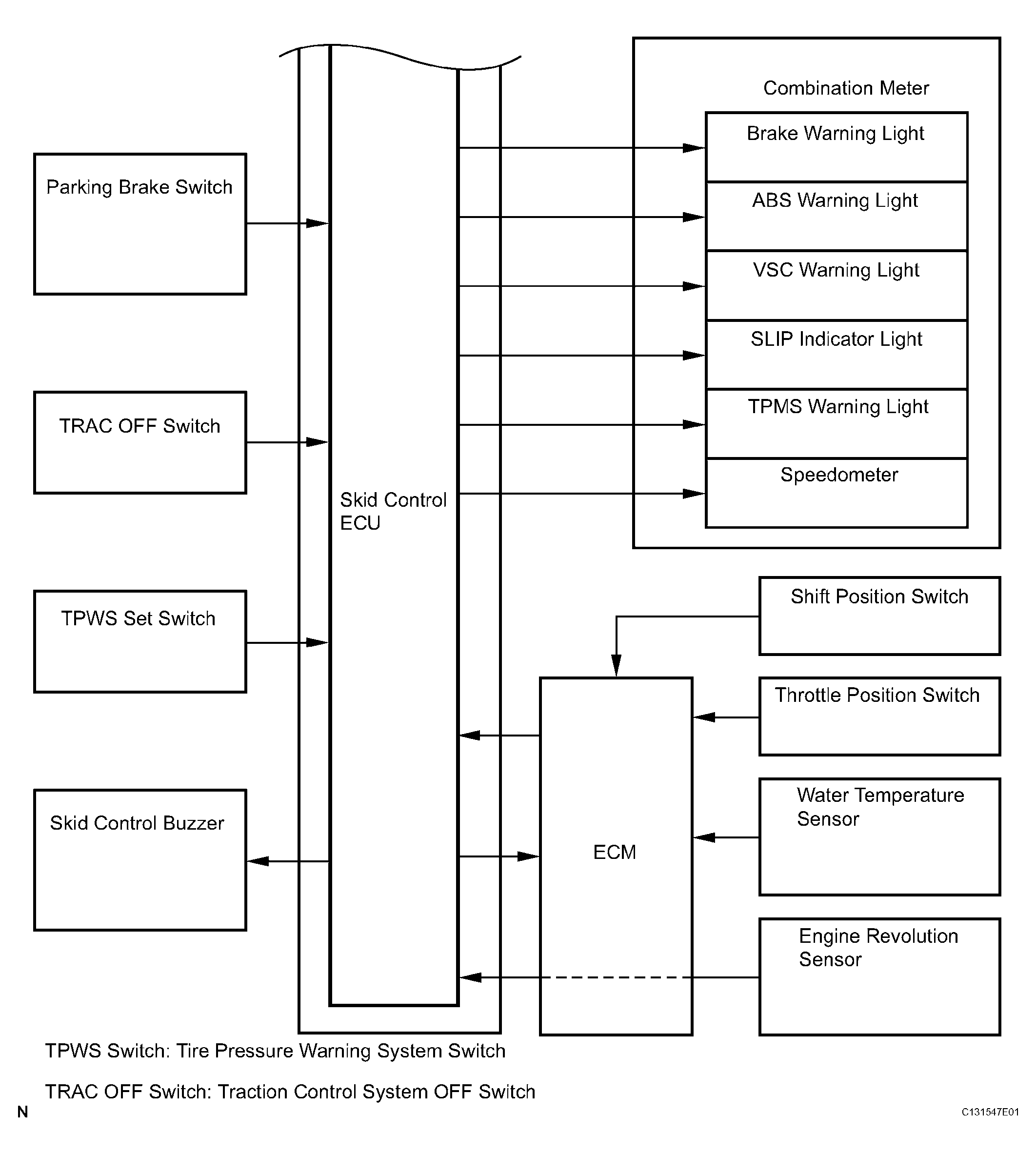

Fig 2: Identifying Vehicle Stability Control System Diagram (2 Of 2)
G04465198Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
