Rear Seat Assembly: Components

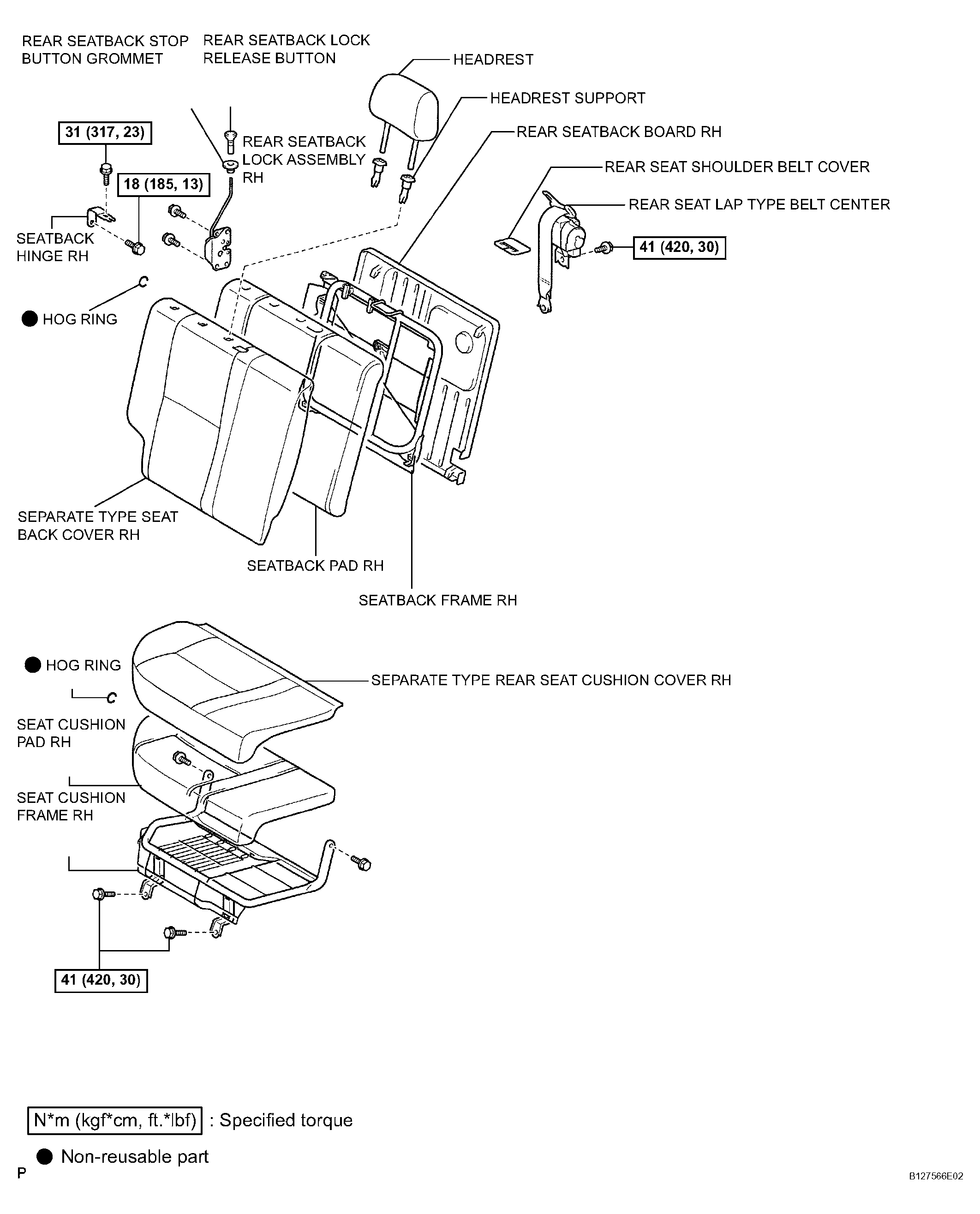

Fig 1: Rear Seat Assembly Replacement Components With Torque Specifications (1 Of 2)
G04466907Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

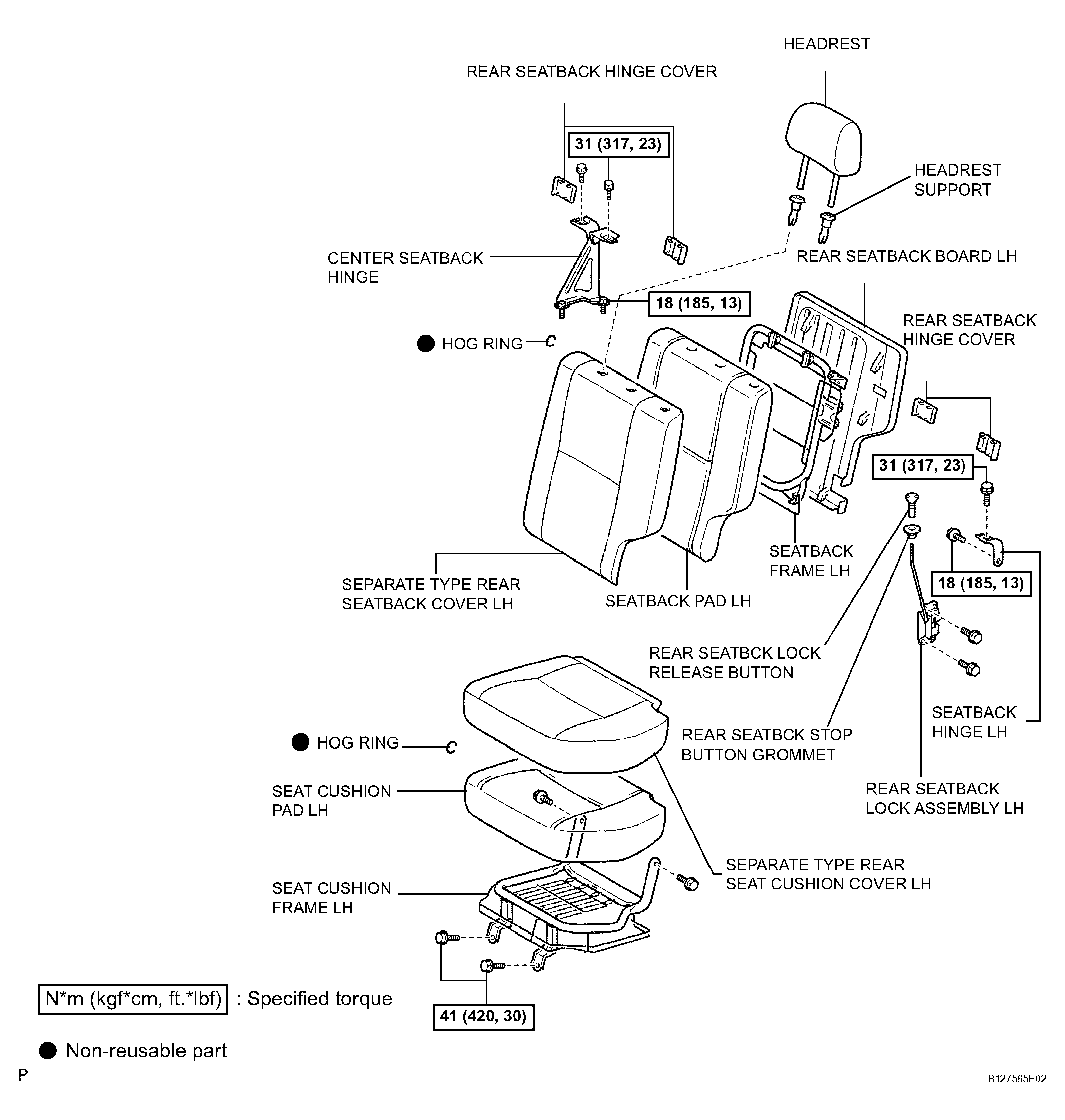

Fig 2: Rear Seat Assembly Replacement Components With Torque Specifications (2 Of 2)
G04466908Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
