Outer Rear View Mirror: Inspection

INSPECT OUTER REAR VIEW MIRROR ASSEMBLY LH

Apply battery voltage and inspect the mirror motor face operation.

Standard (LH)

MEASUREMENT CONDITION AND MIRROR OPERATION REFERENCE STANDARD (LH)

Measurement Condition	Mirror Operation
Battery positive (+) --> MV (3) Battery positive (-) --> Com (2)	Turns upward (A)
Battery positive (+) --> Com (2) Battery positive (-) --> MV (3)	Turns downward (B)
Battery positive (+) --> Com (2) Battery positive (-) --> MH (1)	Turns left (C)
Battery positive (+) --> MH (1) Battery positive (-) --> Com (2)	Turns right (D)

If the result is not as specified, replace the mirror assembly.

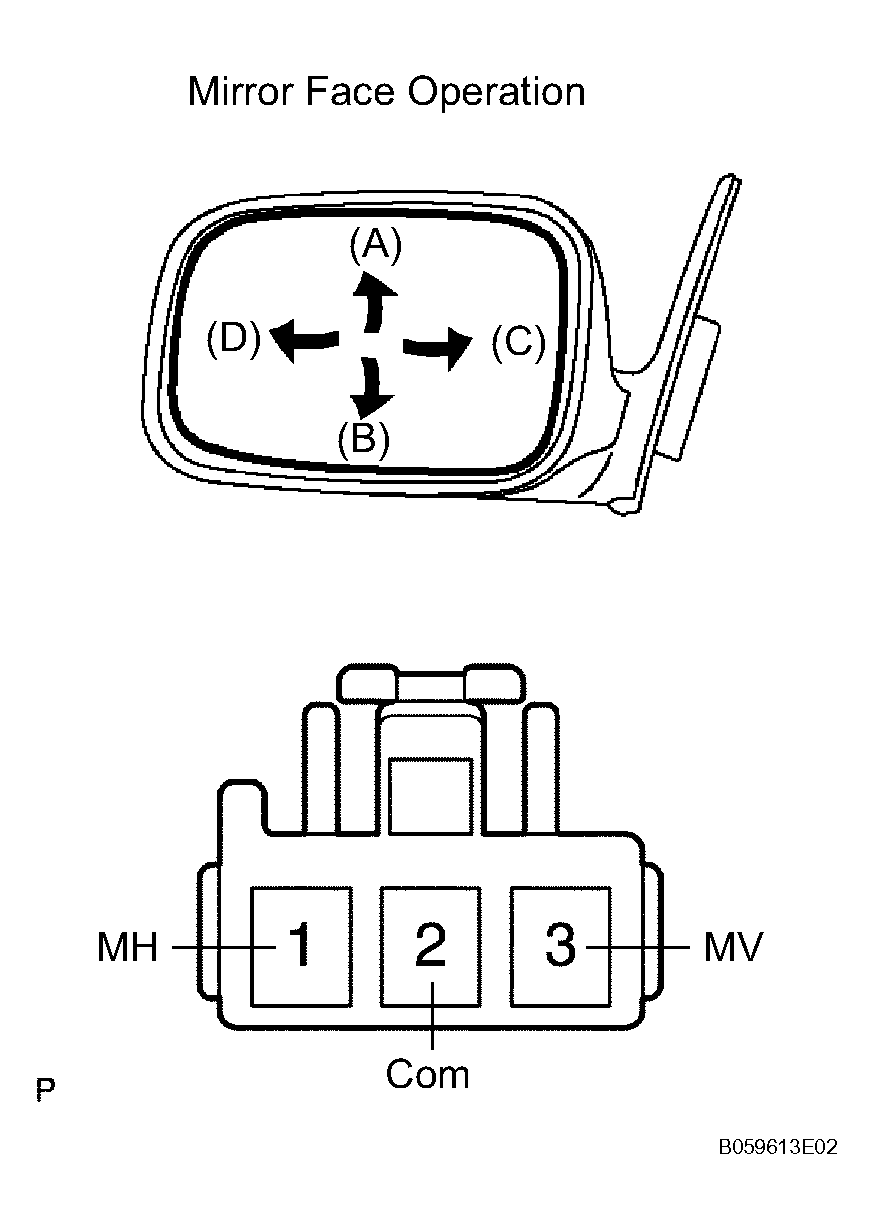

Fig 1: Inspecting Outer Rear View Mirror Assembly LH

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSPECT OUTER REAR VIEW MIRROR ASSEMBLY RH

Apply battery voltage and inspect the mirror motor face operation.

Standard(RH)

MEASUREMENT CONDITION AND MIRROR OPERATION REFERENCE STANDARD (RH)

Measurement Condition	Mirror Operation
Battery positive (+) --> MV (3) Battery positive (-) --> Com (2)	Turns upward (A)
Battery positive (+) --> Com (2) Battery positive (-) --> MV (3)	Turns downward (B)
Battery positive (+) --> Com (2) Battery positive (-) --> MH (1)	Turns left (C)
Battery positive (+) --> MH (1) Battery positive (-) --> Com (2)	Turns right (D)

If the result is not as specified, replace the mirror assembly.

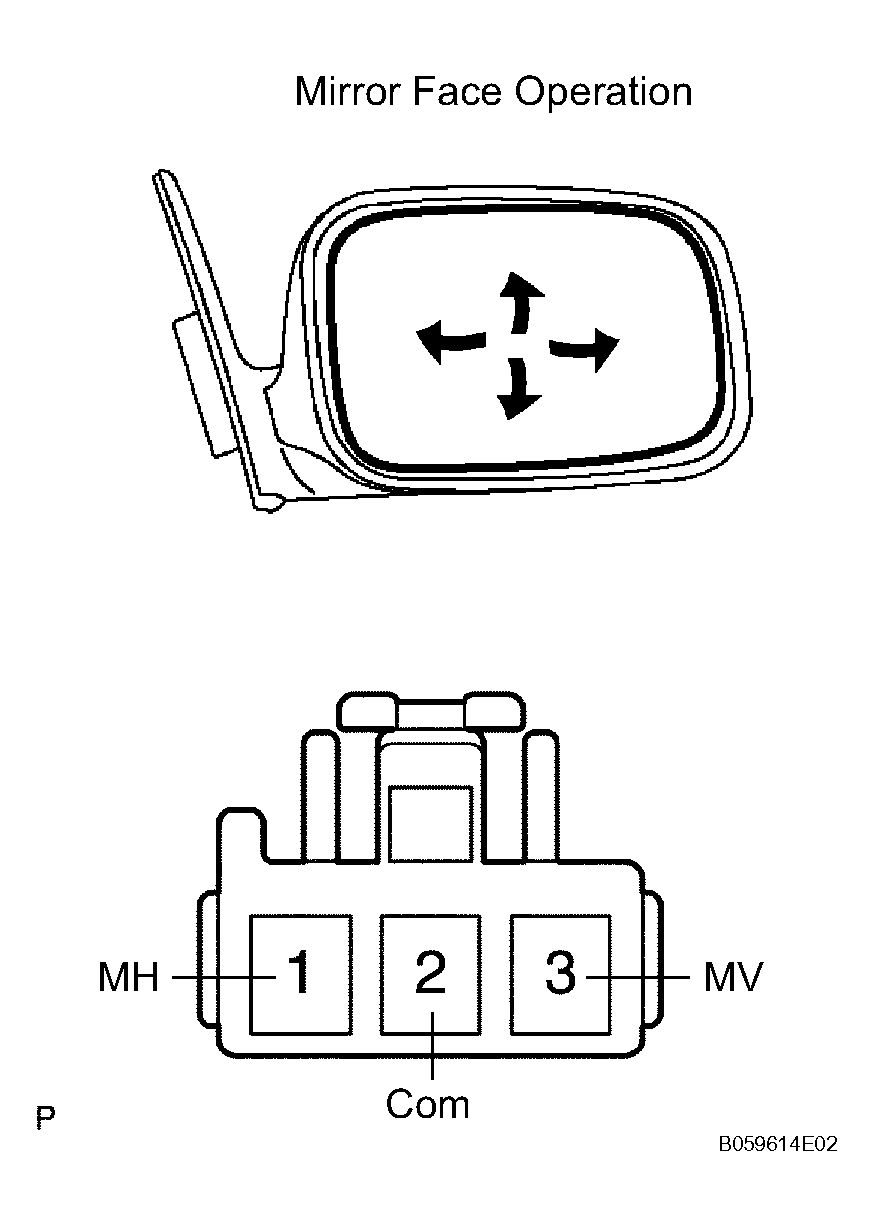

Fig 2: Inspecting Outer Rear View Mirror Assembly RH
