Name Plate: Components

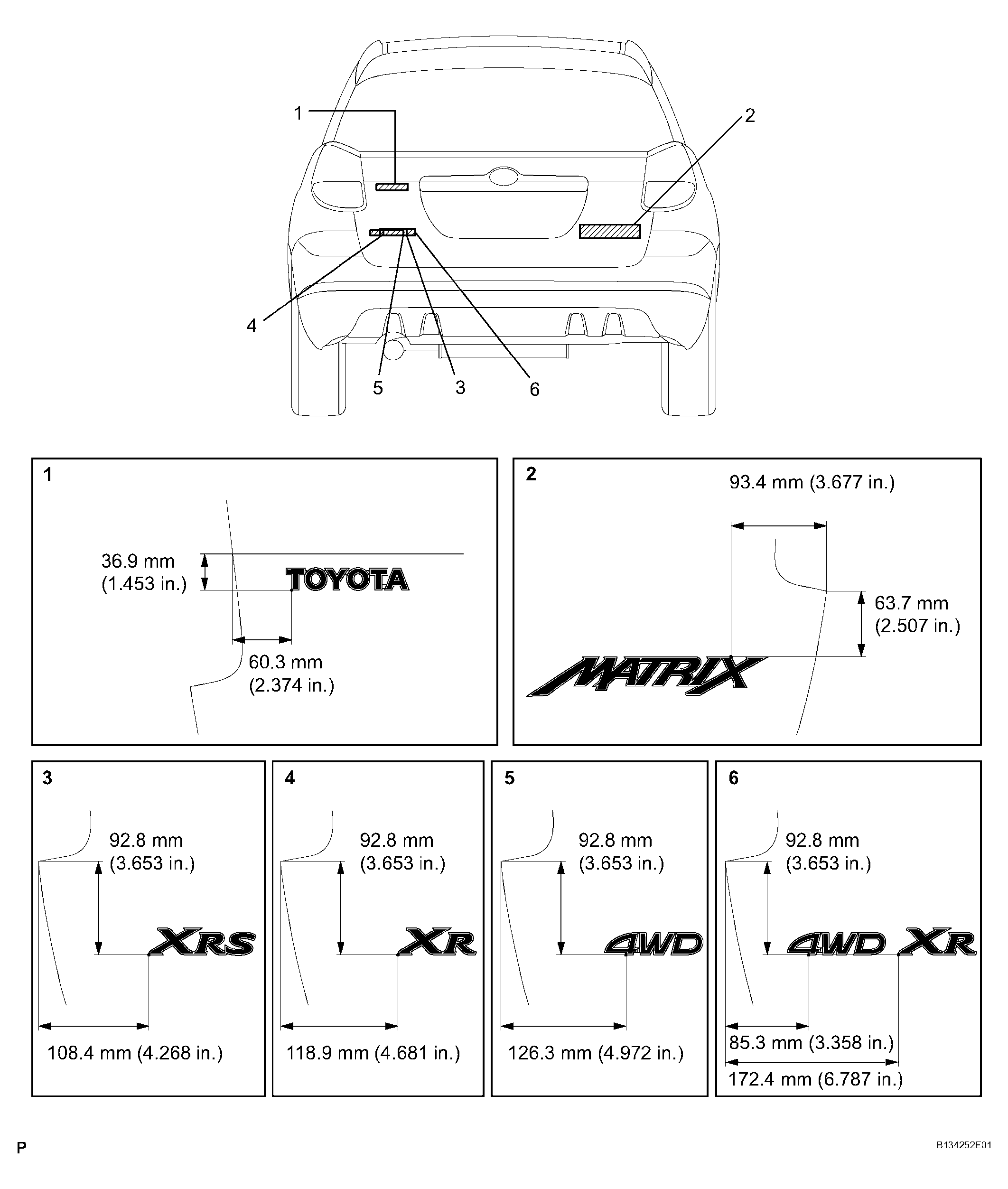

Fig 1: Identifying Name Plate Components

G04467027

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
