Light Control Switch Circuit: Wiring Diagram

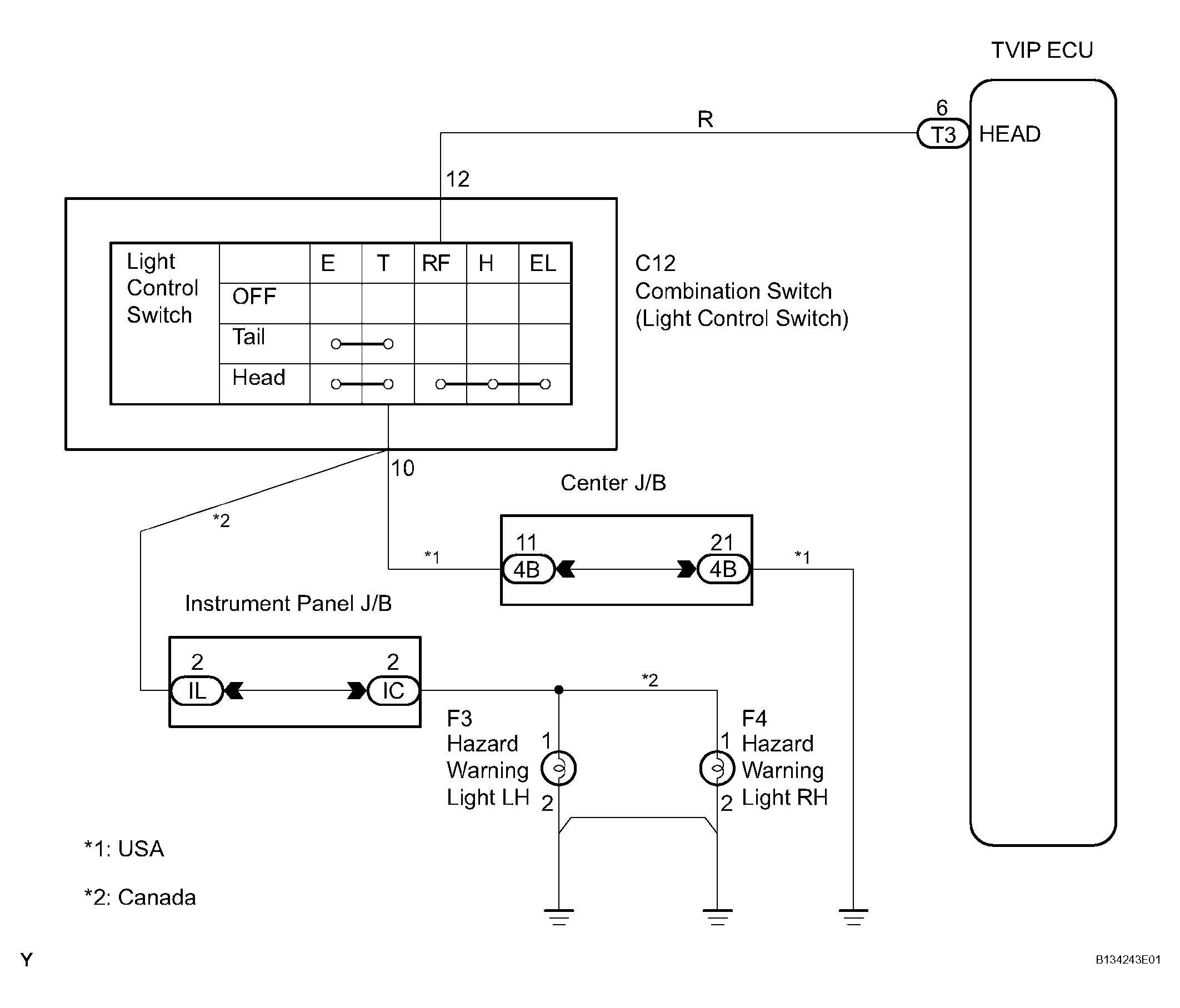

Fig 1: Light Control Switch Circuit Wiring Diagram

G04466255

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
