System Diagram

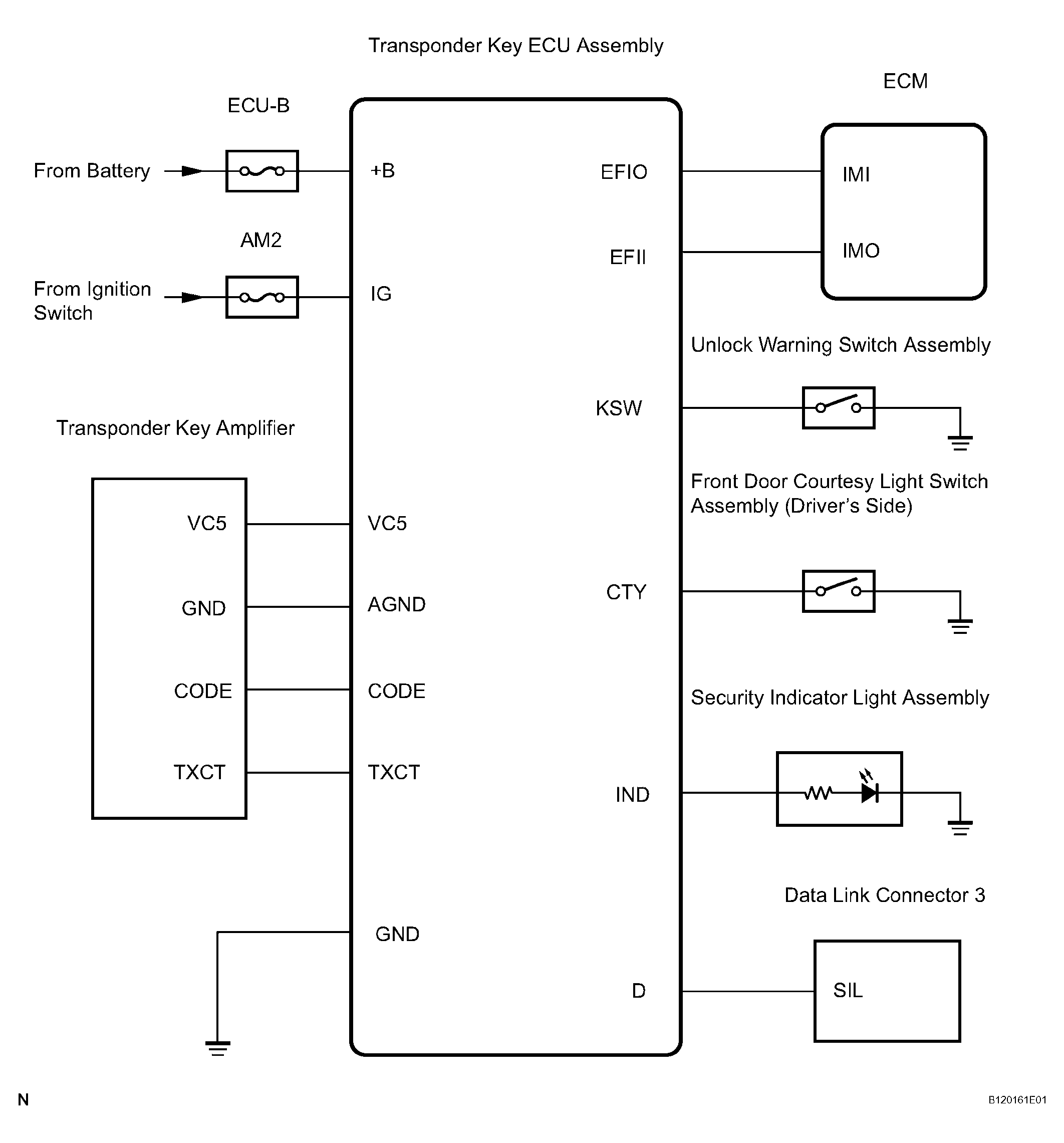

Fig 1: Engine Immobilizer System Diagram

G04466282

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
