Front Door Lock: Inspection

  1. INSPECT FRONT DOOR LOCK ASSEMBLY LH
    1. Apply battery voltage and inspect the door lock motor operation, as shown in the illustration and table.

      Standard

      MEASURING AND SPECIFIED CONDITIONS

      Measuring condition Specified Condition
      Battery positive (+) --> Terminal 4
      Battery negative (-) --> Terminal      		 1 Lock
      Battery positive (+) --> Terminal 1
      Battery negative (-) --> Terminal      		 4 Unlock

      If the result is not as specified, replace the door lock assembly.

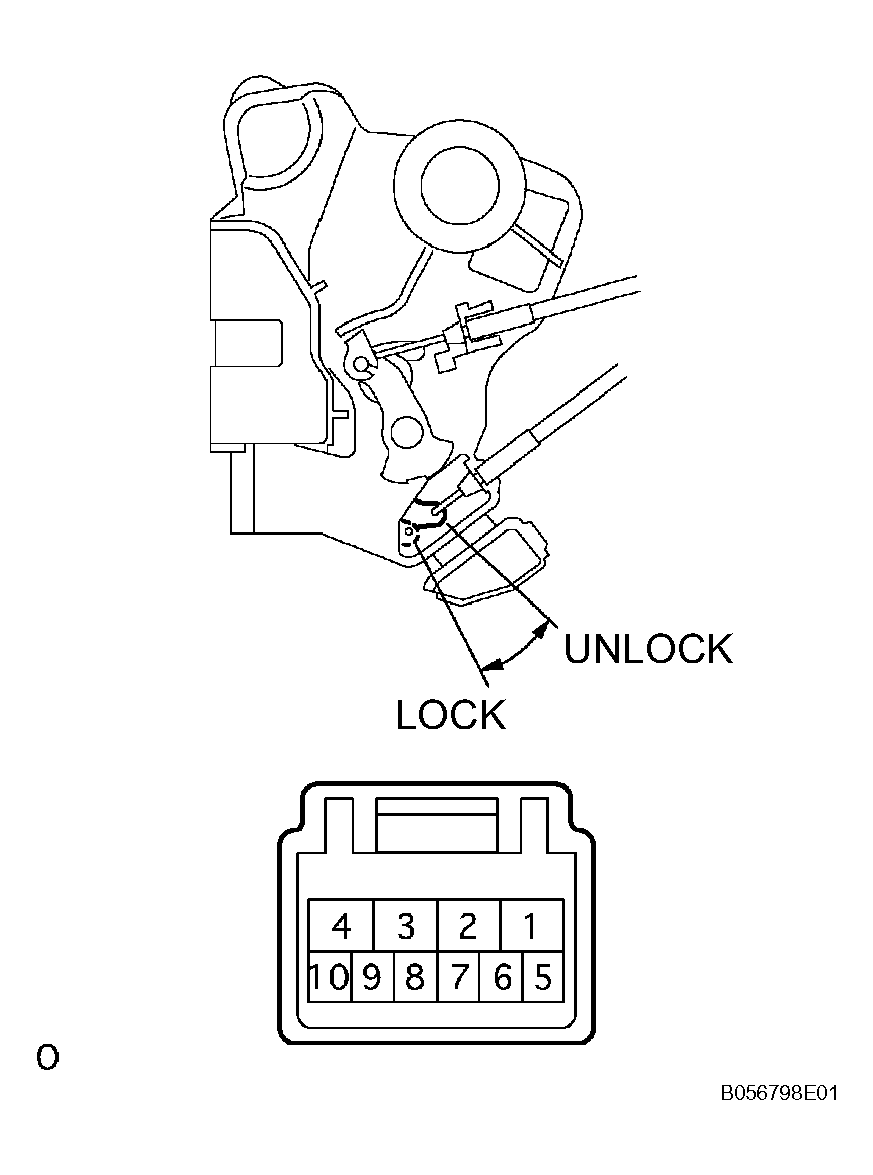

      Fig 1: Inspecting Door Lock Motor Operation
      G04466577Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      STANDARD RESISTANCE (1 OF 2)

      Terminal No. Door Lock Position Specified Condition
      7 - 9 Lock Below 1 Ω
      - OFF -
      7 - 10 Unlock Below 1 Ω

      If the result is not as specified, replace the door lock assembly.

    3. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      STANDARD RESISTANCE (2 OF 2)

      Terminal No. Door Lock Position Specified Condition
      7 - 8 Lock Below 1 Ω
      - OFF -
      7 - 9 Unlock Below 1 Ω

      If the result is not as specified, replace the door lock assembly.

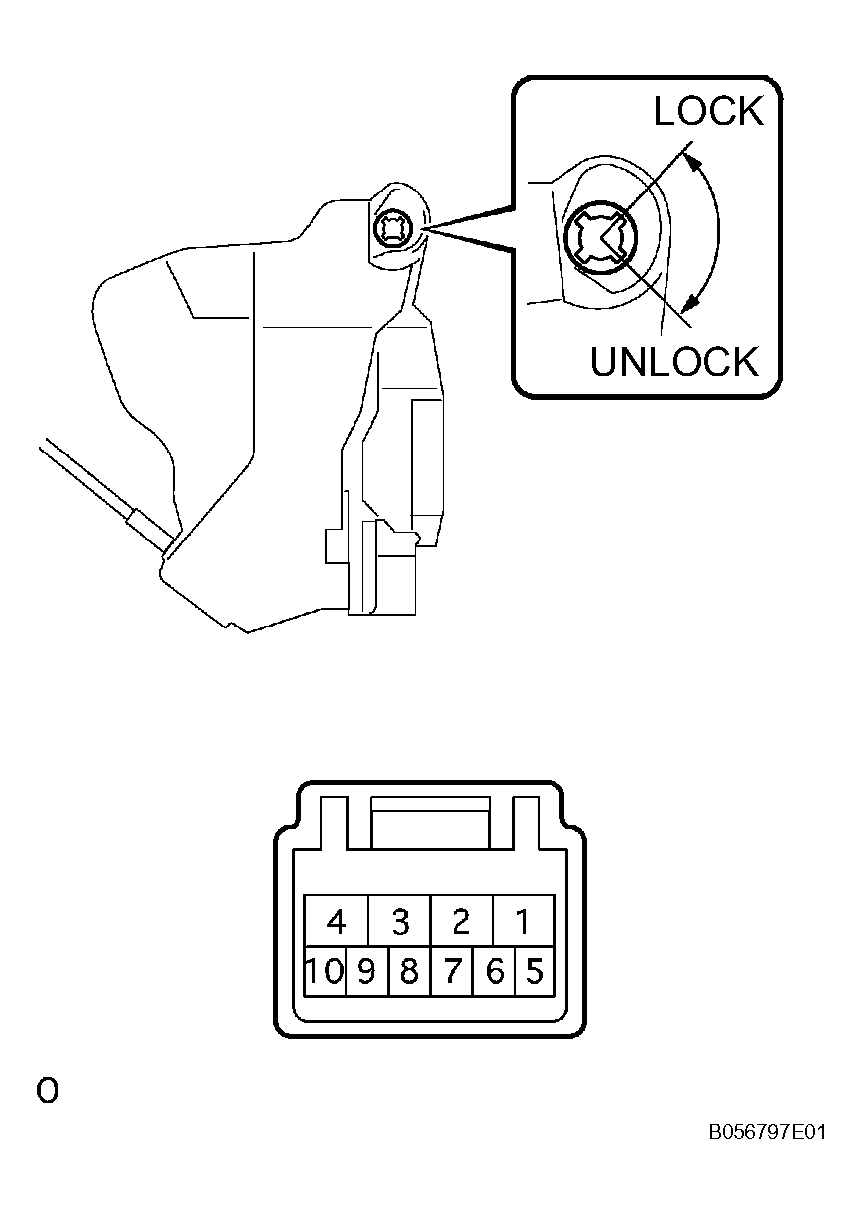

      Fig 2: Identifying Front Door Lock Assembly LH Lock And Unlock Conditions
      G04466578Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSPECT FRONT DOOR LOCK ASSEMBLY RH
    1. Apply battery voltage and inspect the door lock motor operation, as shown in the illustration and table.

      Standard

      MEASURING AND SPECIFIED CONDITIONS

      Measuring condition Specified Condition
      Battery positive (+) --> Terminal 4
      Battery negative (-) --> Terminal 1      		 Lock
      Battery positive (+) --> Terminal 1
      Battery negative (-) --> Terminal 4      		 Unlock

      If the result is not as specified, replace the door lock assembly.

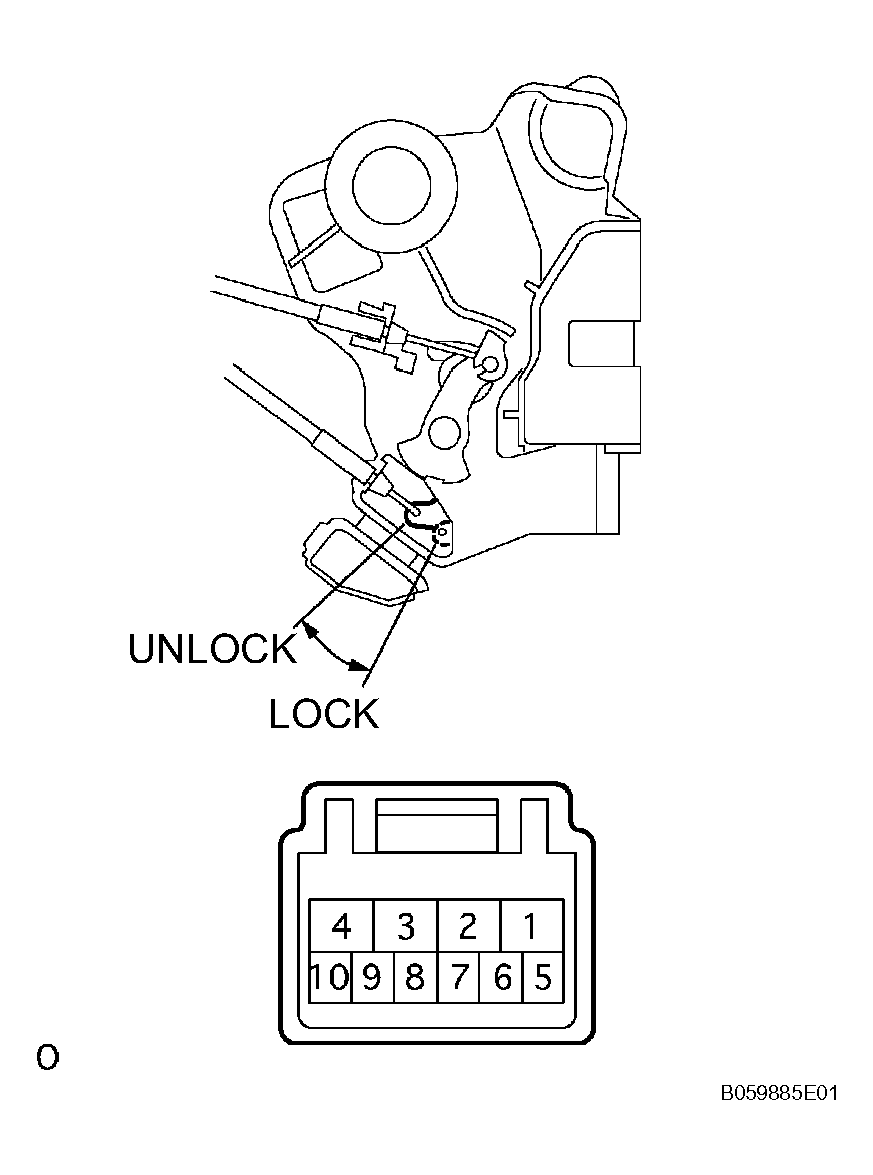

      Fig 3: Inspecting Door Lock Motor Operation
      G04466579Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      STANDARD RESISTANCE (1 OF 2)

      Terminal No. Door Lock Position Specified Condition
      6 - 8 Lock Below 1 Ω
      - OFF -
      5 - 8 Unlock Below 1 Ω

      If the result is not as specified, replace the door lock assembly.

    3. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      STANDARD RESISTANCE (2 OF 2)

      Terminal No. Door Lock Position Specified Condition
      7 - 8 Lock 10 kΩ or higher
      - OFF -
      7 - 8 Unlock Below 1 Ω

      If the result is not as specified, replace the door lock assembly.

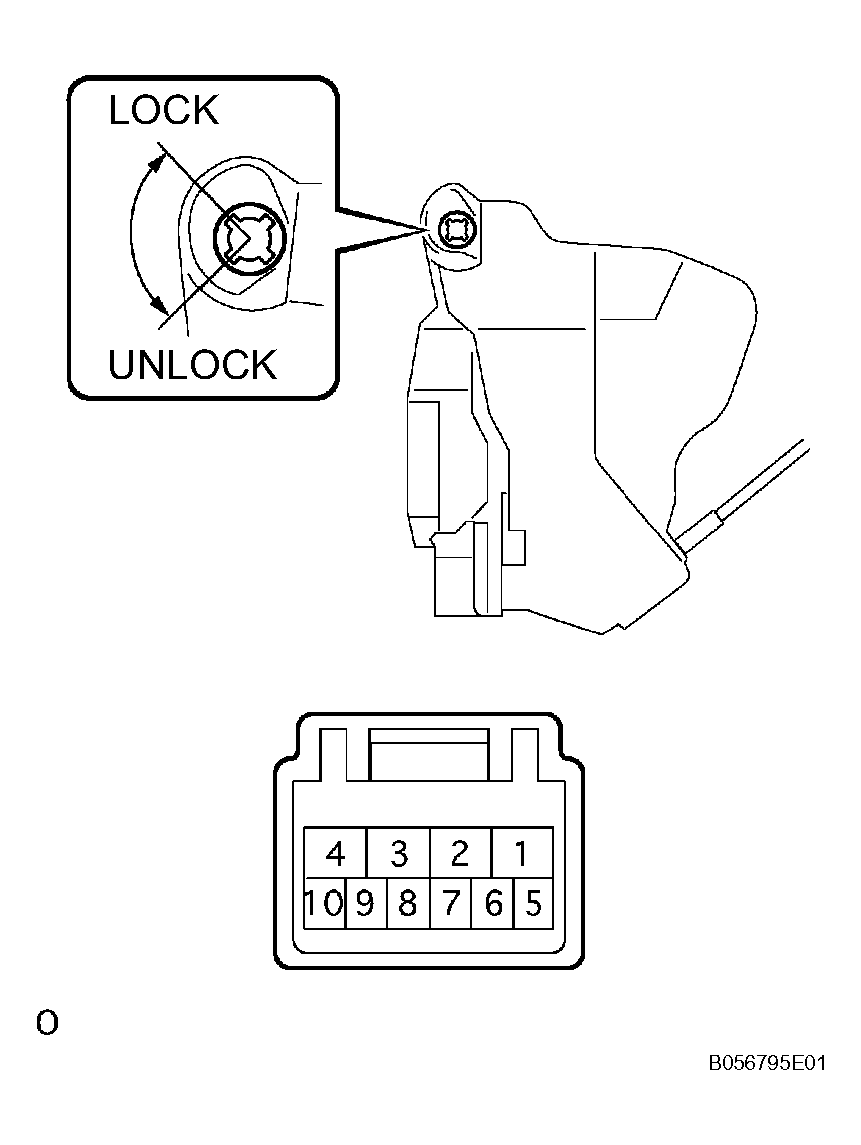

      Fig 4: Inspecting Front Door Lock Assembly RH
      G04466580Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
