Cruise Control Ecu: Removal

  1. REMOVE METER HOOD ASSEMBLY
  2. REMOVE COMBINATION METER ASSEMBLY (See  REMOVAL  )
  3. REMOVE CRUISE CONTROL ECU
    1. Disconnect the connector.
    2. Remove the screw and cruise control ECU assembly.

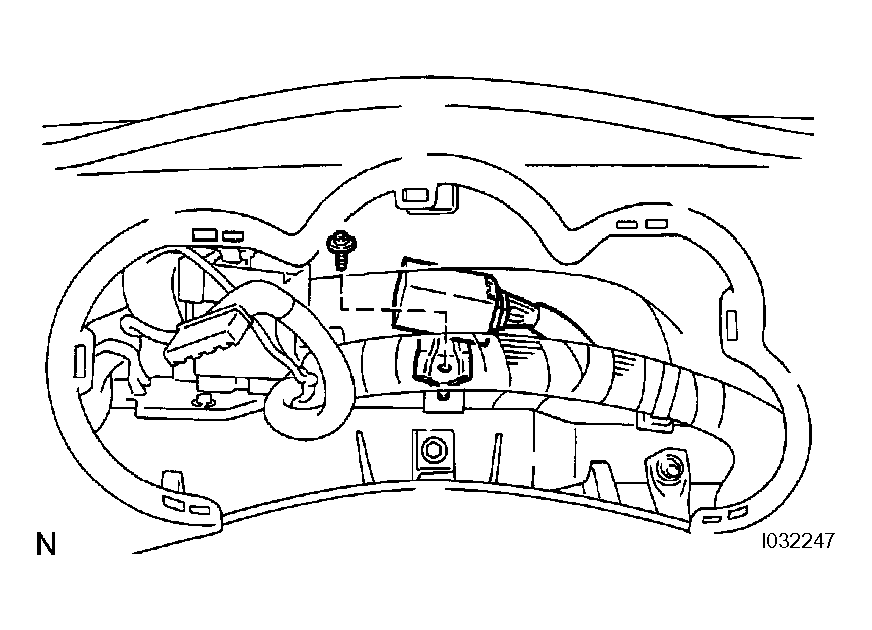

      Fig 1: Removing Cruise Control ECU
      G04466425Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
