Cruise Control Actuator: Removal

REMOVE CRUISE CONTROL ACTUATOR COVER
1. Disengage the 2 claws, then remove the cruise control actuator cover.

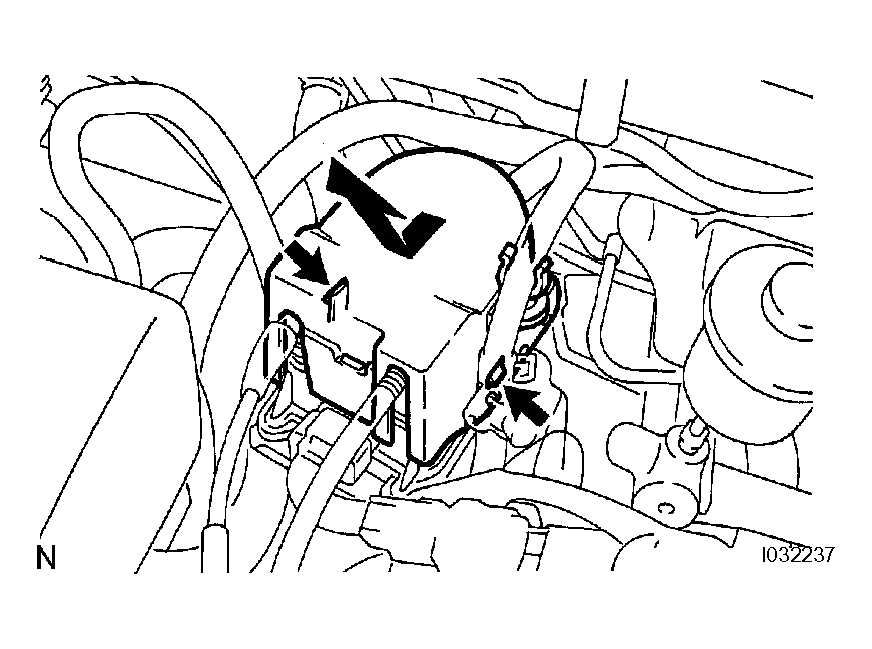

  Fig 1: Removing Cruise Control Actuator Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
SEPARATE ACCELERATOR CONTROL CABLE ASSEMBLY
1. Loosen the double nut and separate the accelerator control cable assembly.

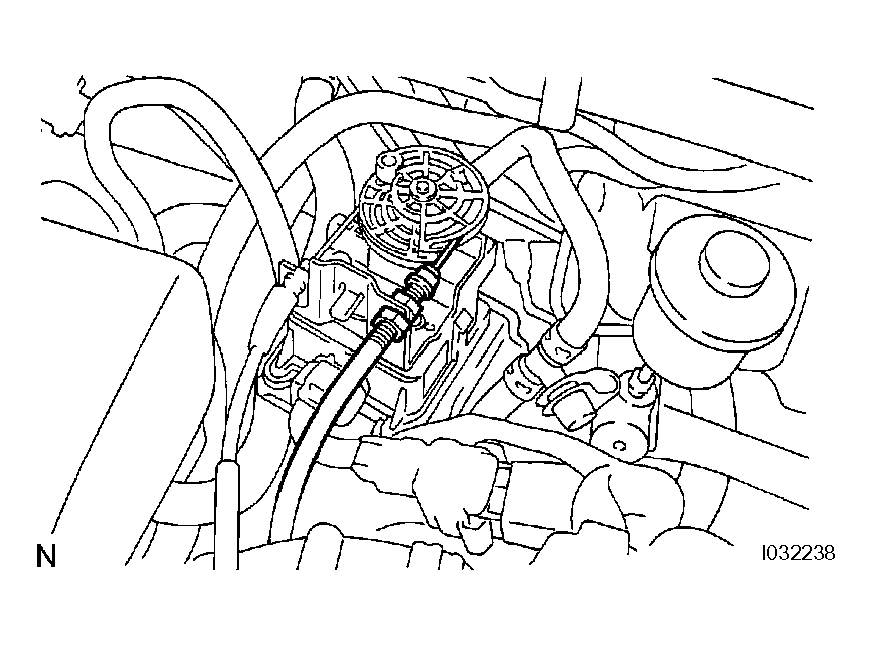

  Fig 2: Separating Accelerator Control Cable Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
SEPARATE ACCELERATOR AUTO DRIVE CABLE ASSEMBLY
1. Remove the screw and separate the accelerator auto drive cable assembly.

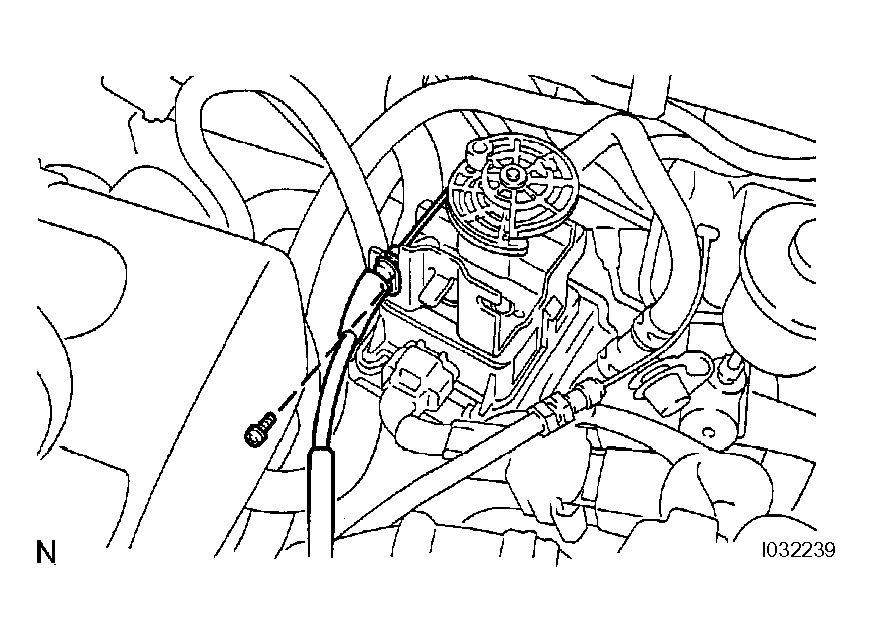

  Fig 3: Separating Accelerator Auto Drive Cable Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE CRUISE CONTROL ACTUATOR ASSEMBLY
1. Disconnect the connector.
2. Remove the 2 bolts and cruise control actuator assembly.

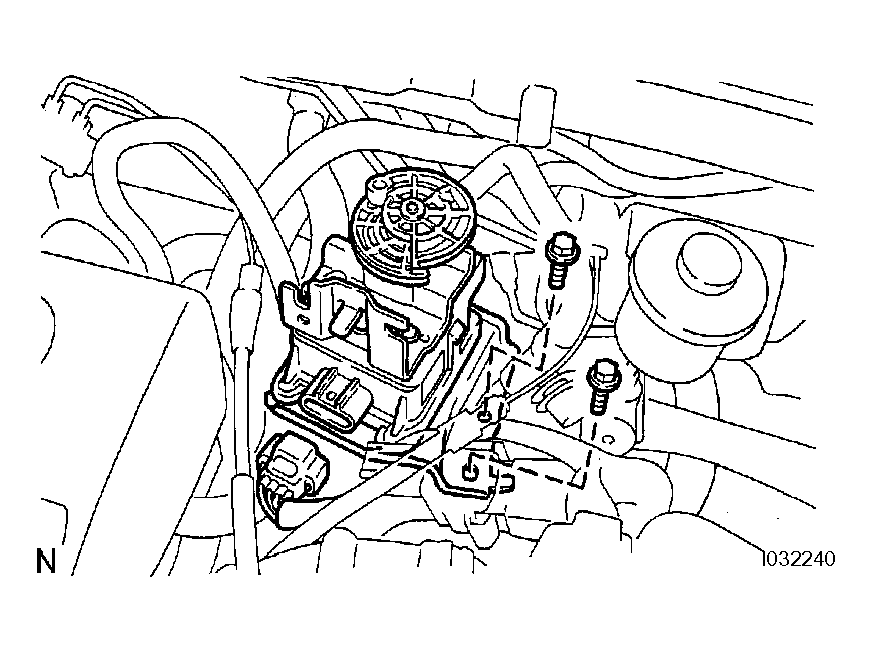

  Fig 4: Removing Cruise Control Actuator Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
