System Diagram

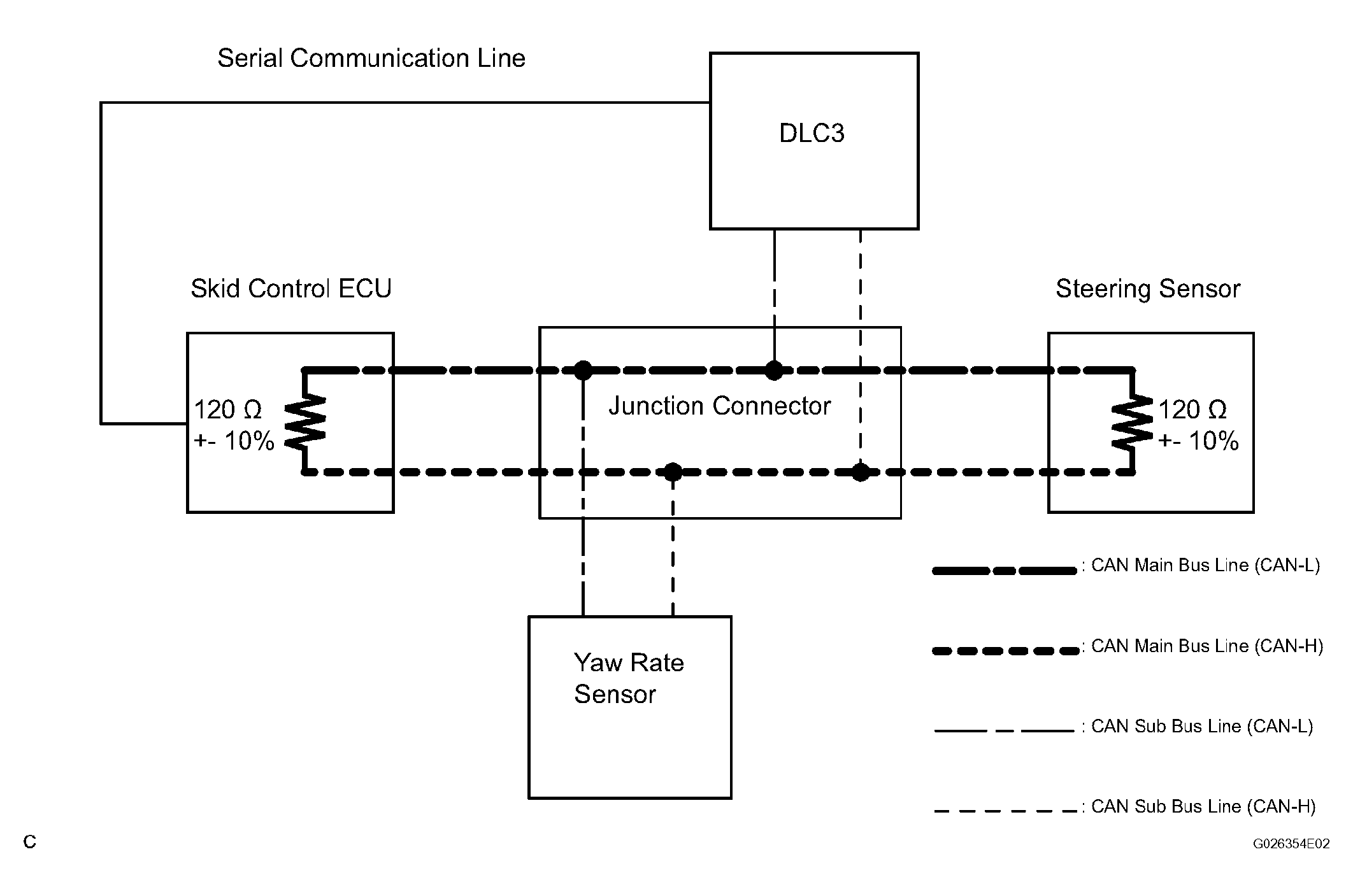

Fig 1: Identifying CAN Communication System Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

The skid control ECU stores DTCs and performs DTC communication by receiving information from the steering sensor and yaw rate sensor. These sensors cannot store DTCs or perform DTC communication.
