Stereo Component Amplifier Power Source Circuit: Wiring Diagram

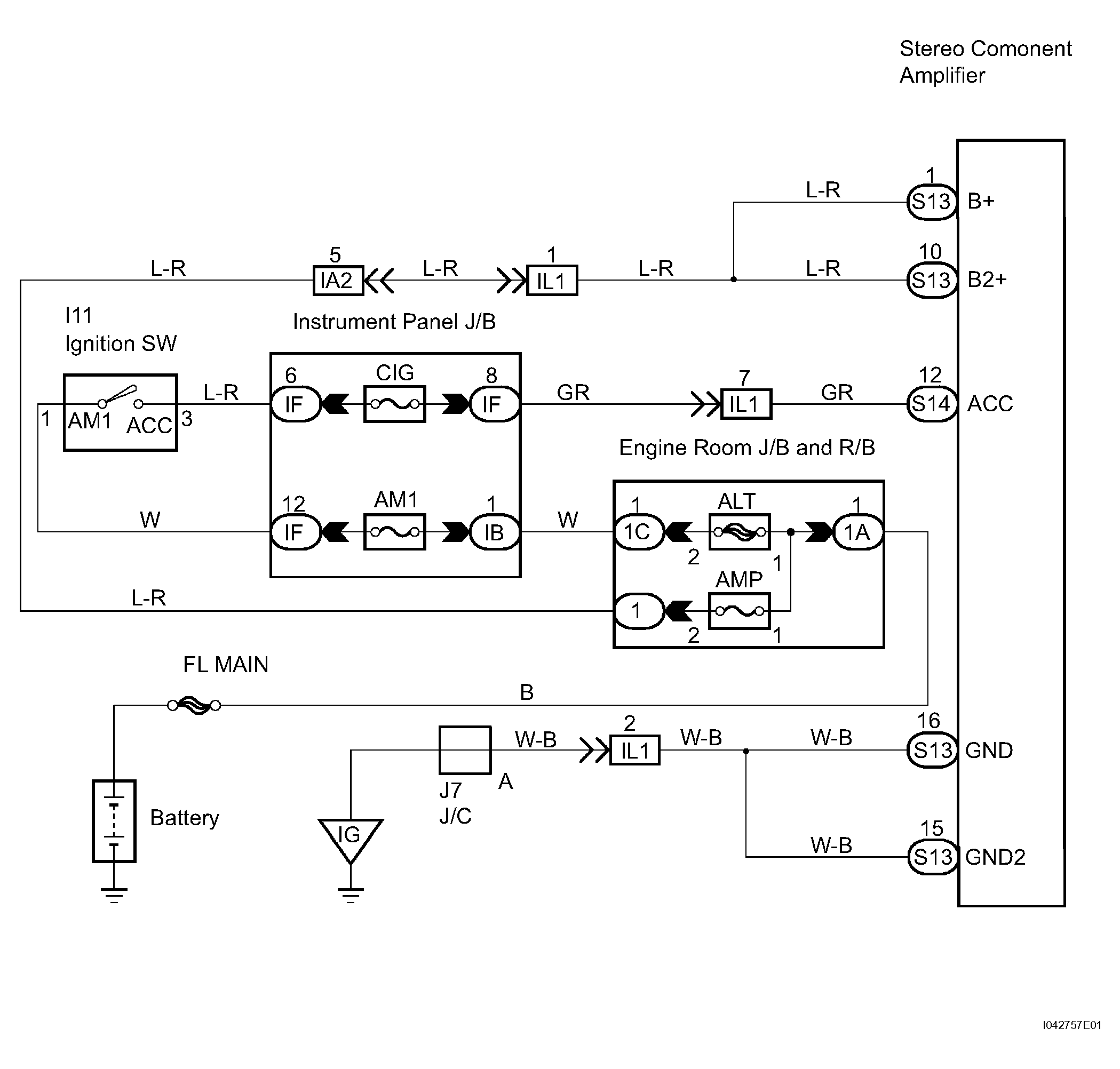

Fig 1: Stereo Component Amplifier Power Source Circuit Wiring Diagram

G04466723

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
