Home >> Toyota >> 2006 >> Land Cruiser >> Repair and Diagnosis >> Transmission >> Transfer Case >> Transfer Case (Hf2A) >> Transfer System >> Parts Location

Parts Location

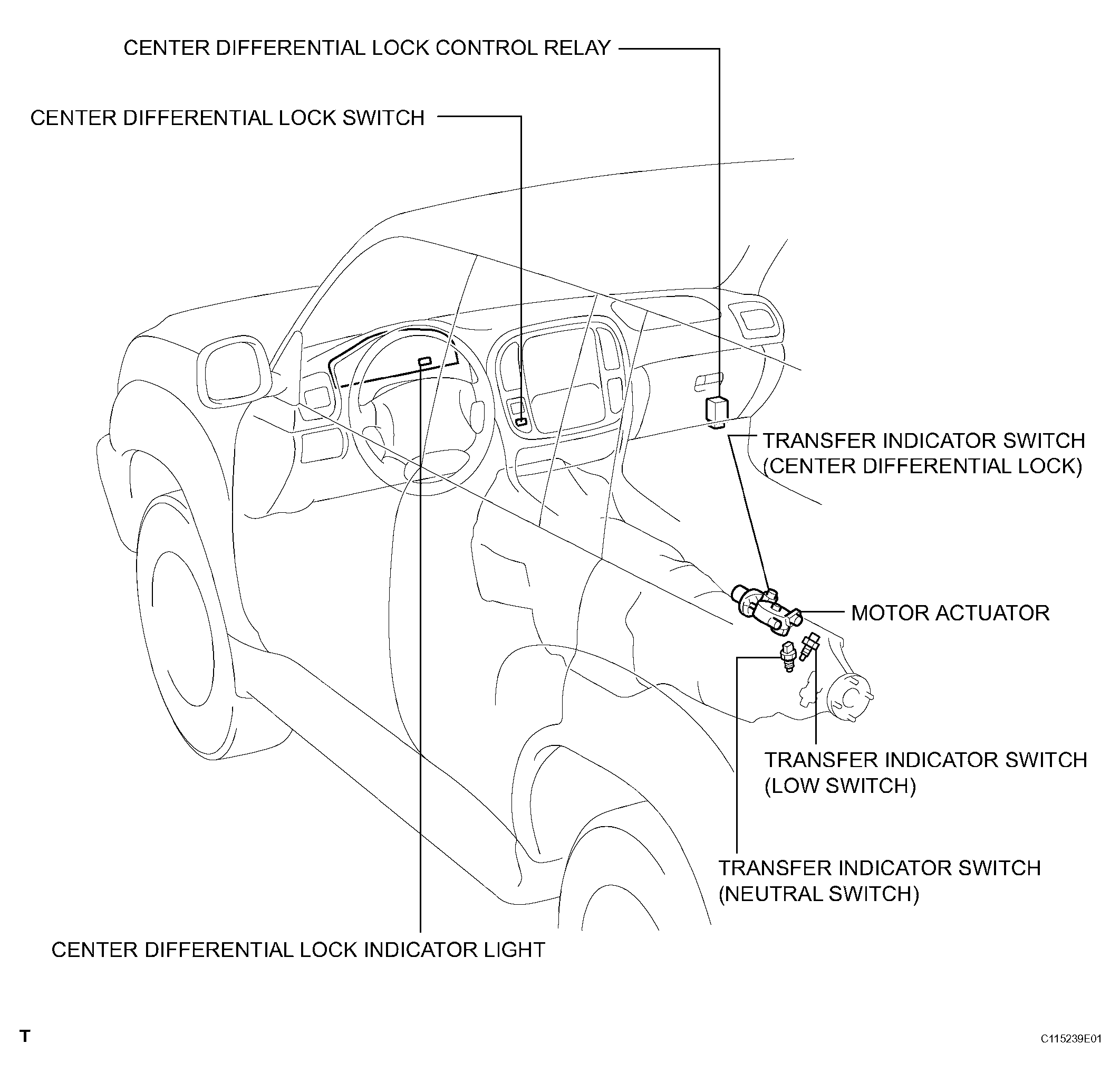

Fig 1: Identifying Transfer System Parts Location

G04436955

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
