Center Differential Lock Switch: Inspection

  1. INSPECT DIFFERENTIAL LOCK INDICATOR SWITCH
    1. Check the continuity between each terminal.

      OK

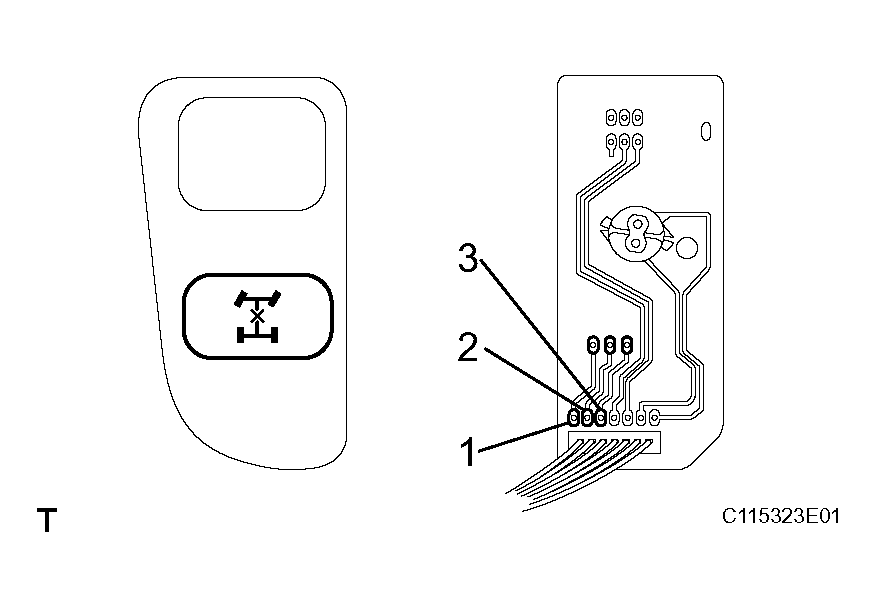

      Fig 1: Checking Continuity Between Each Terminal
      G04437119Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TESTER CONNECTION AND SPECIFIED CONDITION TABLE

      Center Differential Lock Switch Condition Tester Connection Specified Condition
      ON 1 - 2 No continuity
      ON 1 - 3 No continuity
      ON 2 - 3 Continuity
      OFF 1 - 2 Continuity
      OFF 1 - 3 No continuity
      OFF 2 - 3 No continuity
