Valve Body: Components

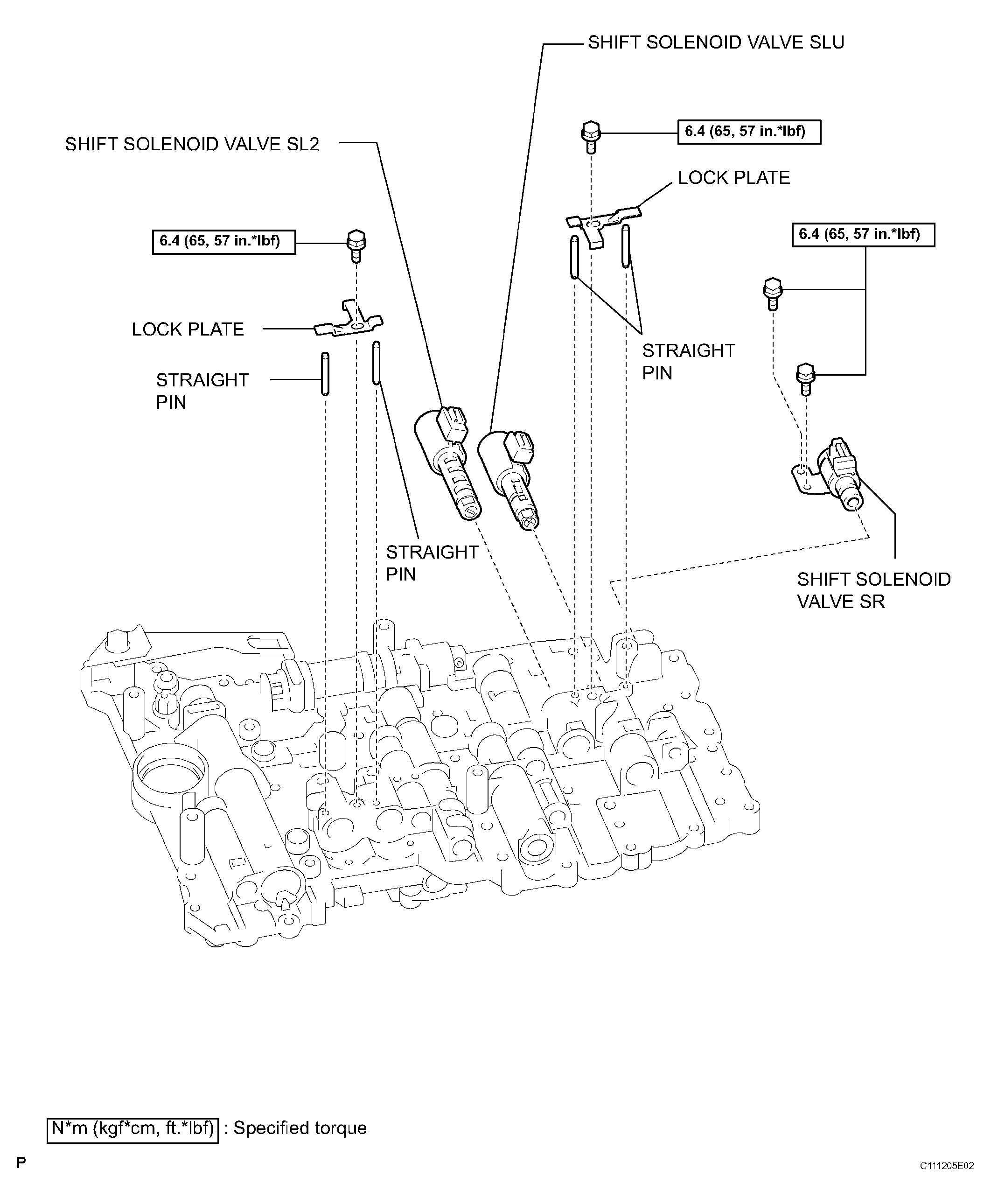

Fig 1: Identifying Valve Body Components (1 Of 2)
G04436936Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

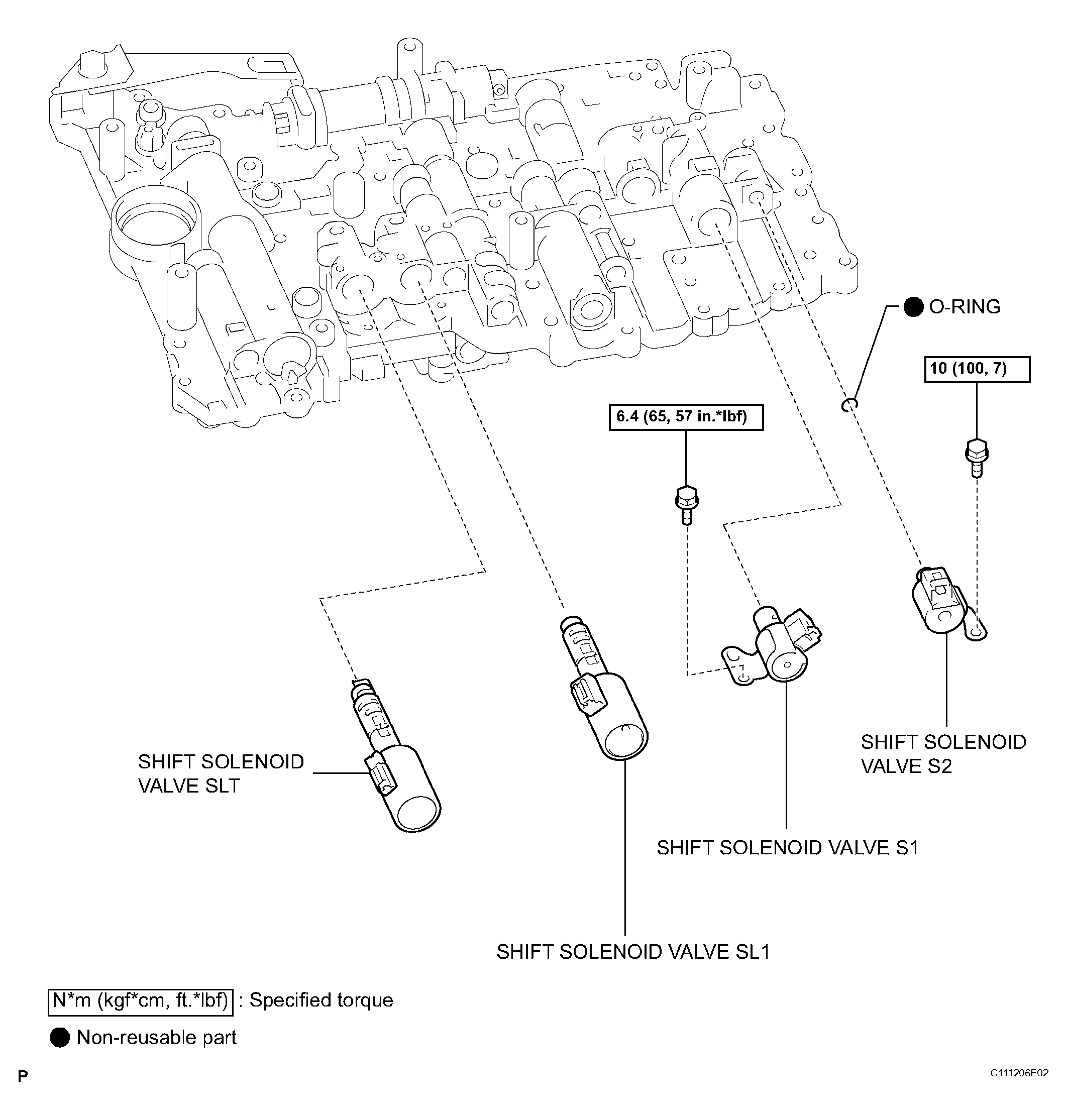

Fig 2: Identifying Valve Body Components (2 Of 2)
G04436937Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
