Valve Body Assembly: Components

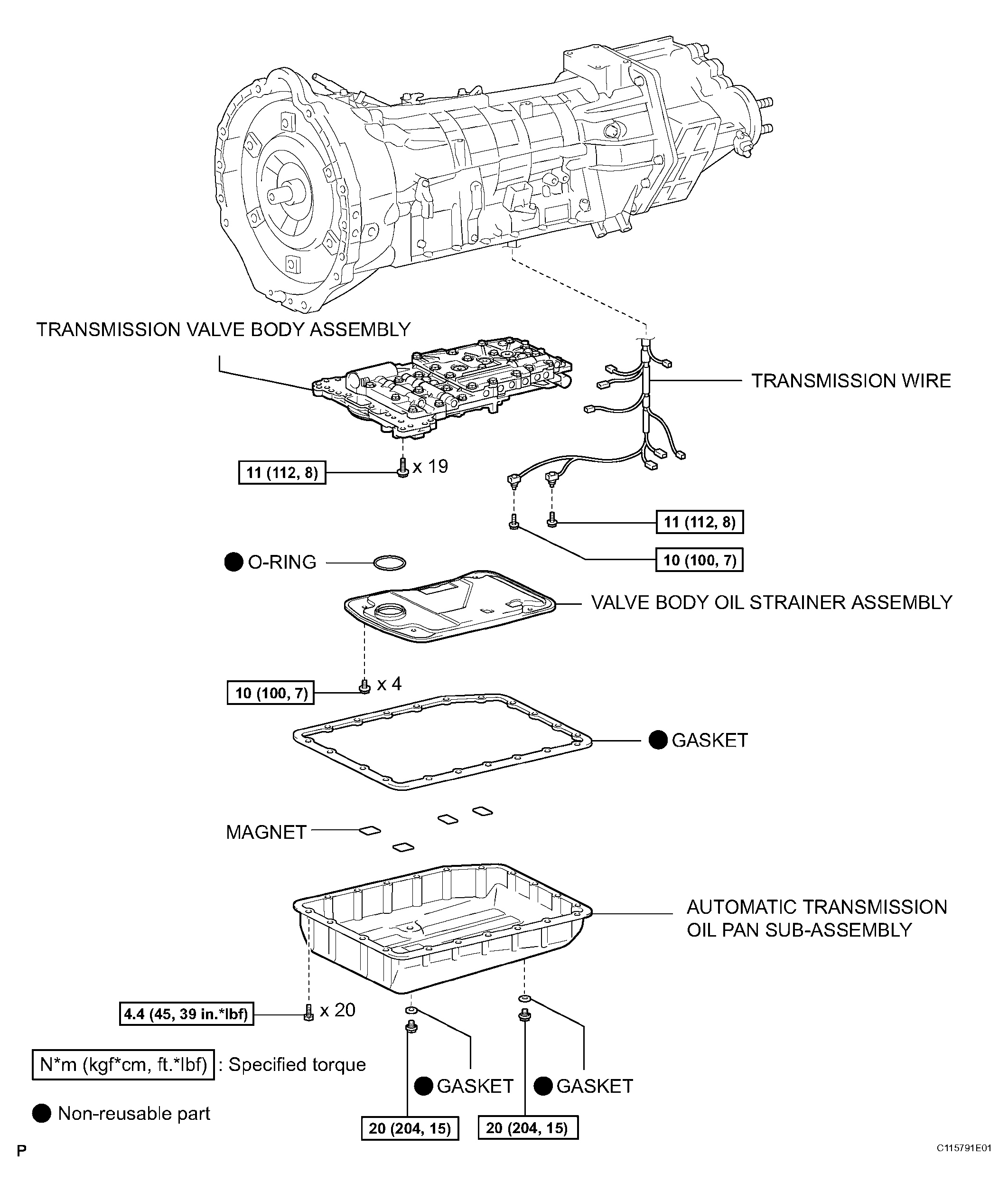

Fig 1: Identifying Valve Body Assembly Components (1 Of 2)
G04436560Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

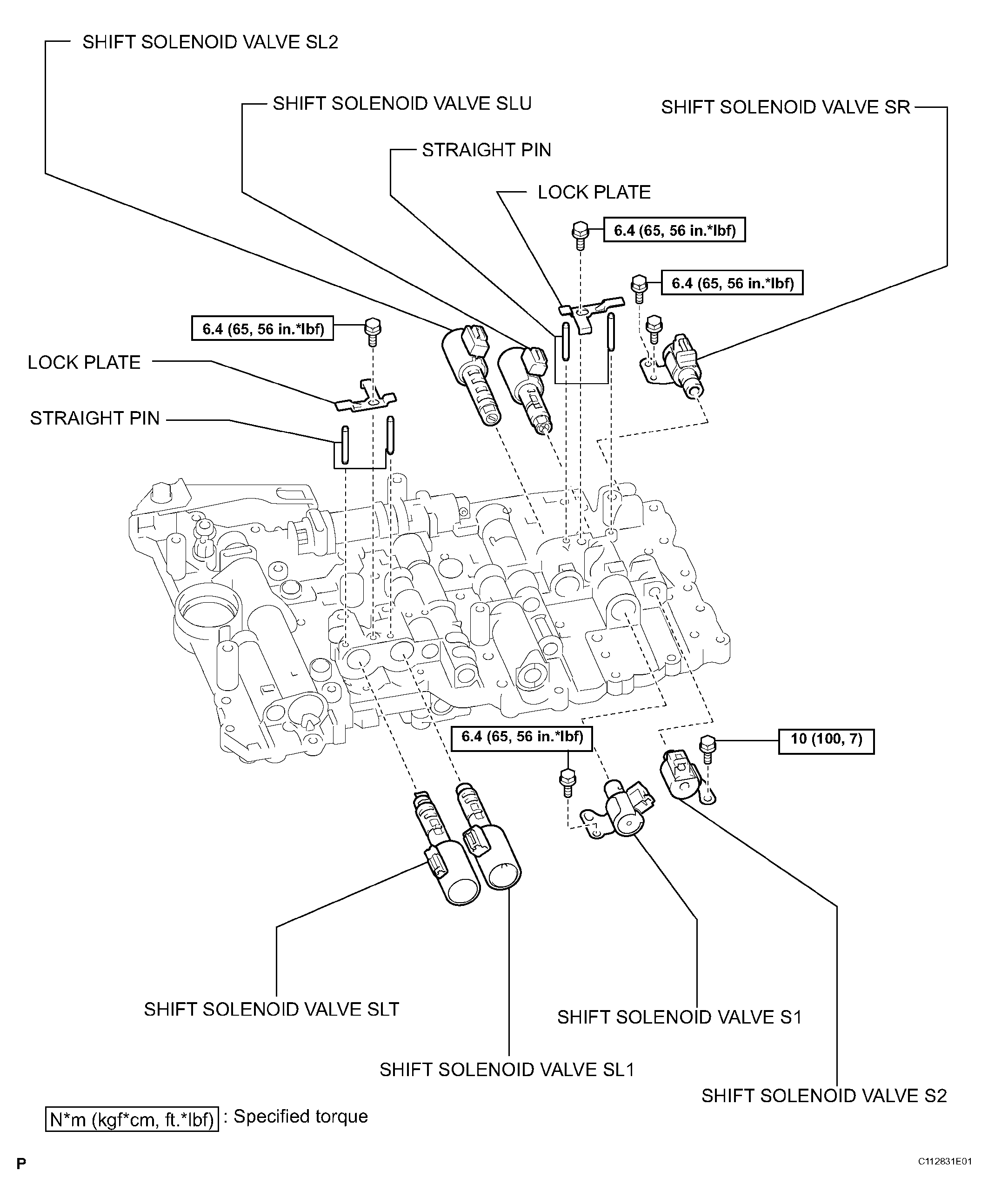

Fig 2: Identifying Valve Body Assembly Components (2 Of 2)
G04436561Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
