Transmission Wire: Components

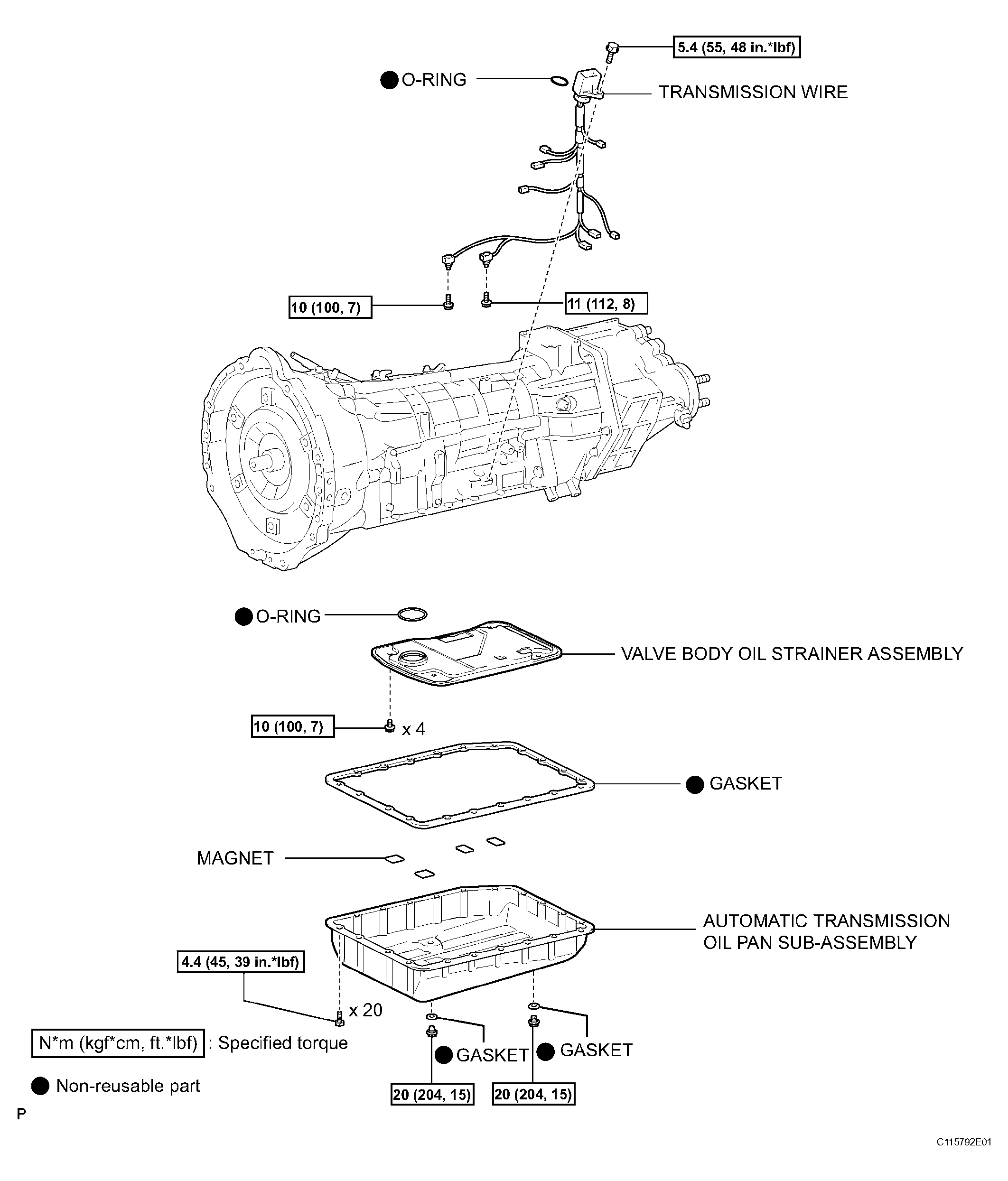

Fig 1: Identifying Transmission Wire Components

G04436542

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
