Speed Sensor: Components

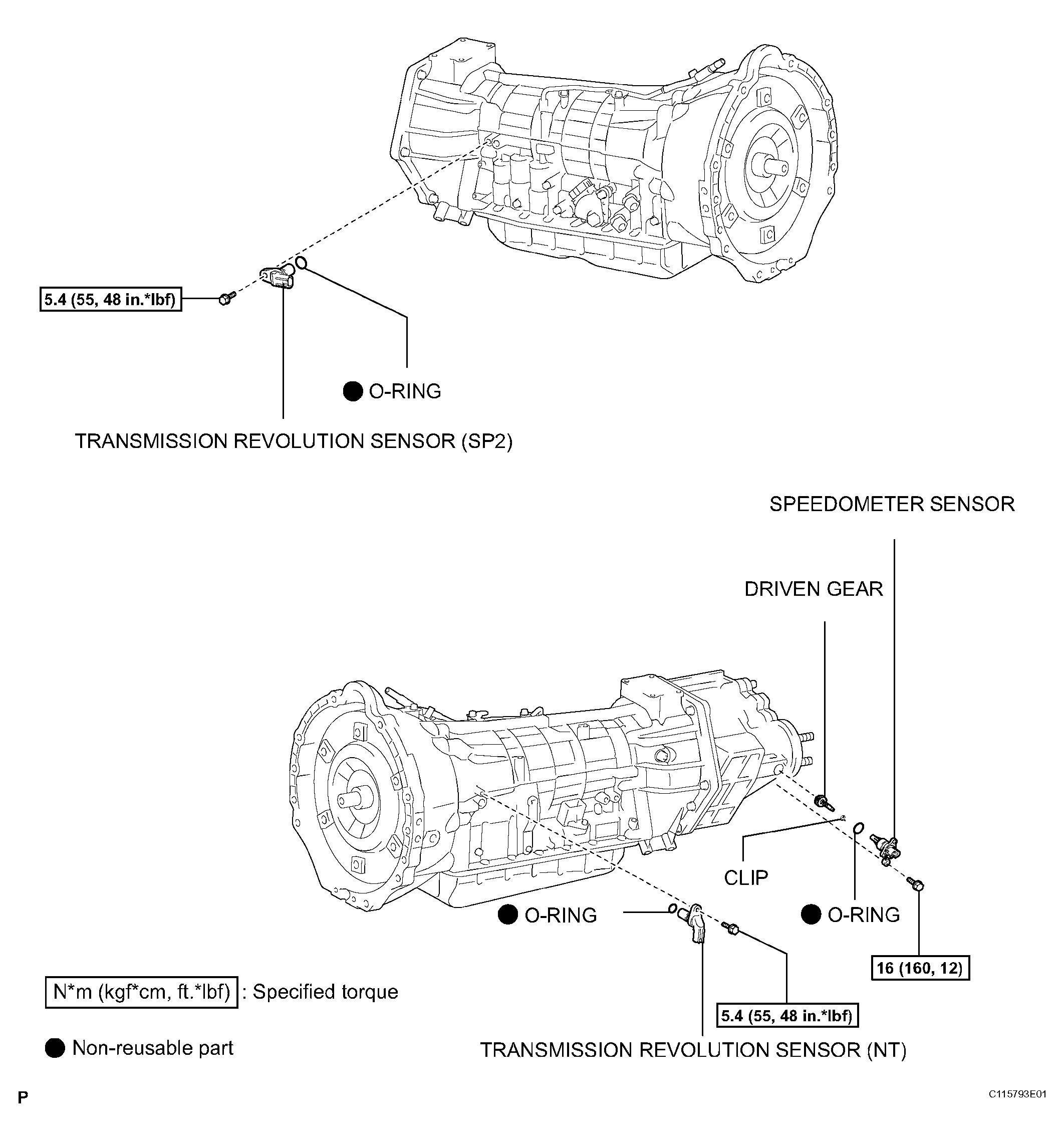

Fig 1: Identifying Speed Sensor Components

G04436531

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
