Home >> Toyota >> 2006 >> Land Cruiser >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission - A750F >> Park/Neutral Position Switch >> Components

Park/Neutral Position Switch: Components

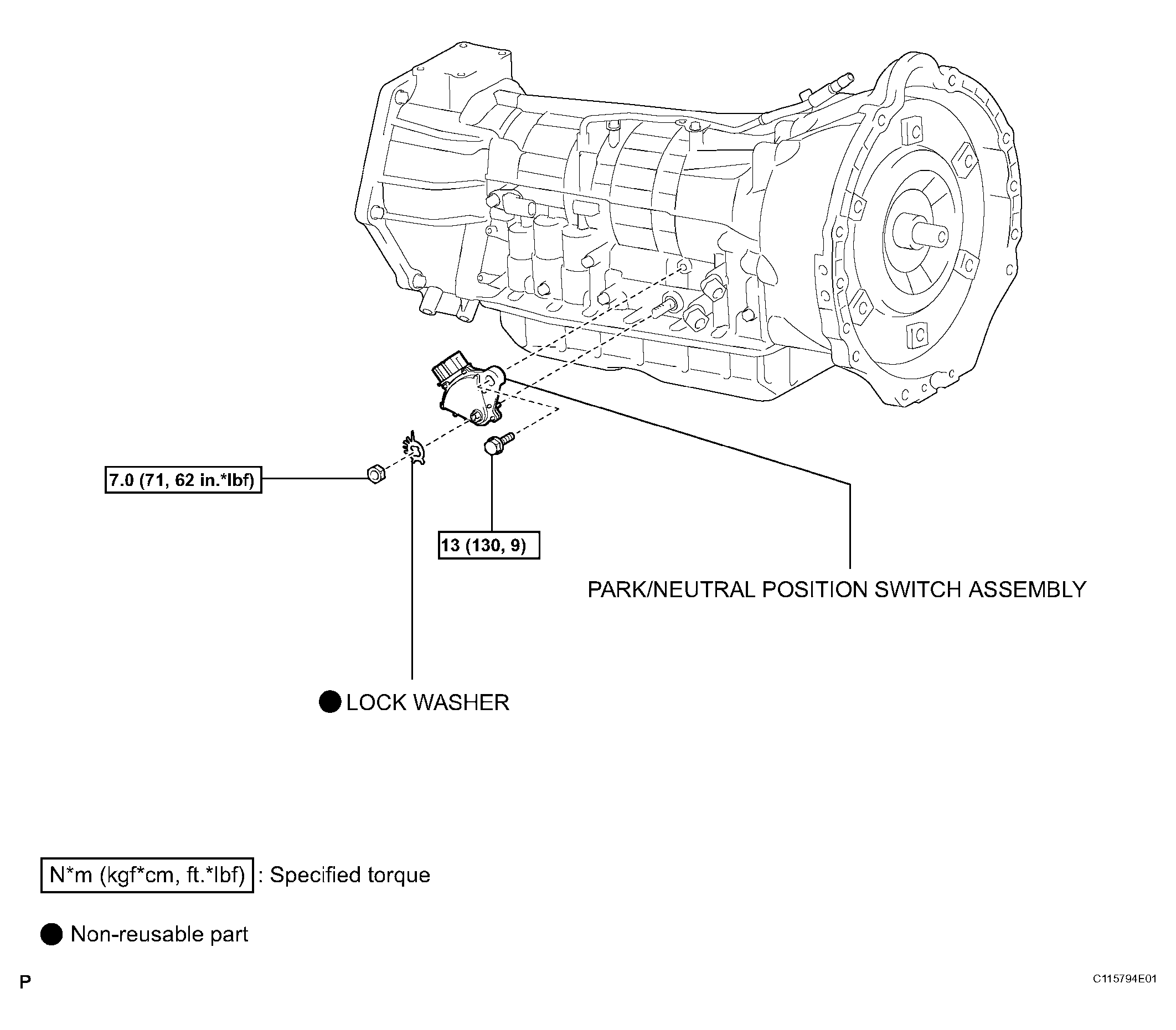

Fig 1: Identifying Park/Neutral Position Switch

G04436553

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
