Vacuum Switching Valve, Intake Manifold: Components

Fig 1: Identifying Vacuum Switching Valve Components & Replacements (1 Of 3)
G04436175Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

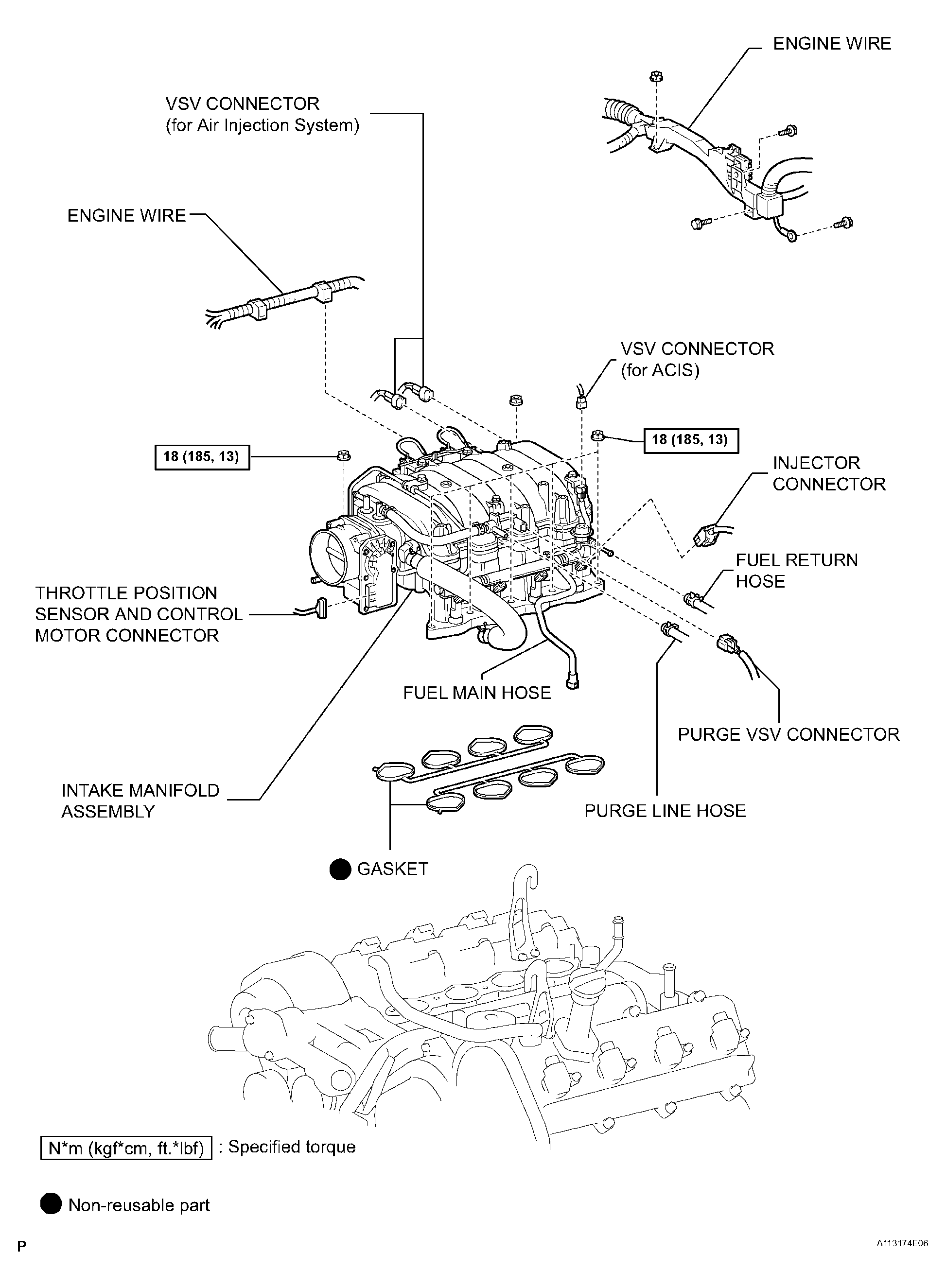

Fig 2: Identifying Vacuum Switching Valve Components & Replacements (2 Of 3)
G04436176Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

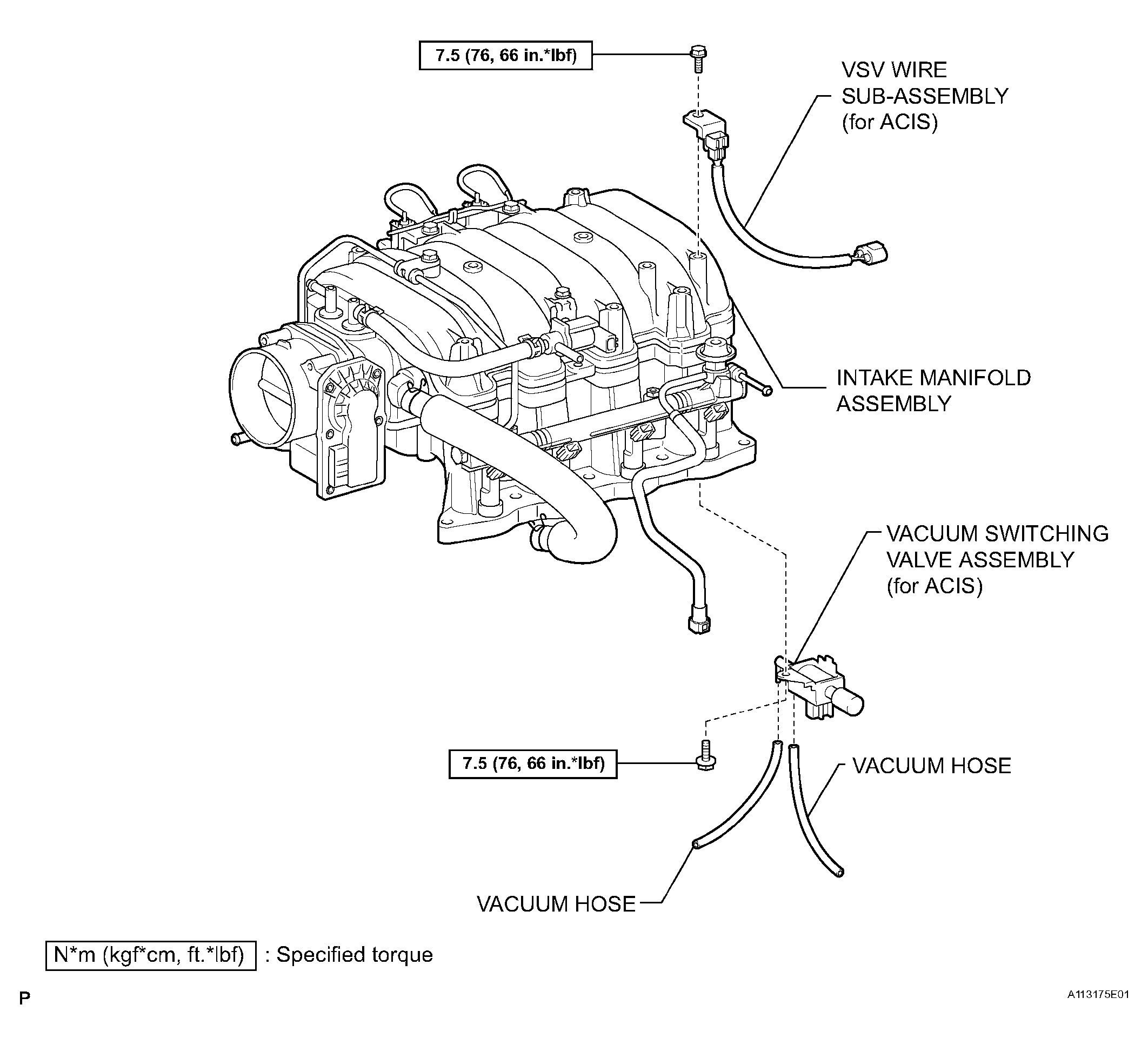

Fig 3: Identifying Vacuum Switching Valve Components & Replacements (3 Of 3)
G04436177Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
