Starting System: Starter: Removal

DISCHARGE FUEL SYSTEM PRESSURE (See REMOVAL )
DRAIN ENGINE COOLANT
DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
REMOVE V-BANK COVER SUB-ASSEMBLY (See REMOVAL )
REMOVE INTAKE AIR CONNECTOR (See REMOVAL )
DISCONNECT FUEL HOSE (See REMOVAL )
DISCONNECT NO. 2 FUEL HOSE (See REMOVAL )
REMOVE VENTILATION HOSE (See REMOVAL )
REMOVE PURGE VSV (See REMOVAL )
REMOVE VACUUM CONTROL VALVE SET (See REMOVAL )
DISCONNECT ENGINE WIRE
1. Disconnect the 8 fuel injector connectors.
2. Disconnect the throttle position sensor and control motor connector.
3. Disconnect the engine coolant temperature sensor connector.
4. Remove the 3 bolts and disconnect the engine wire.
DISCONNECT NO. 7 WATER BY-PASS HOSE

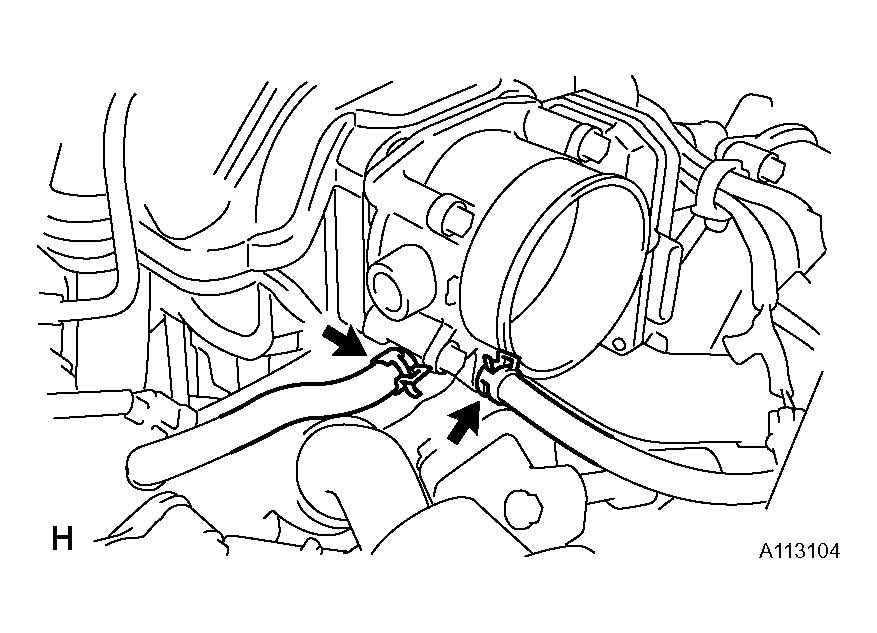

Fig 1: Disconnecting No. 7 Water By-Pass Hose
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DISCONNECT WATER BY-PASS HOSE
REMOVE INTAKE MANIFOLD ASSEMBLY
1. Remove the 6 bolts and 4 nuts.
2. Remove the intake manifold and 2 gaskets.
REMOVE WATER BY-PASS PIPE SUB-ASSEMBLY
1. Disconnect the No. 2 engine wire.
2. Remove the nut and water by-pass pipe.
REMOVE REAR WATER BY-PASS JOINT
1. Remove the 4 nuts, water by-pass joint and 2 gaskets.
REMOVE AIR PUMP ASSEMBLY WITH BRACKET (See REMOVAL )
REMOVE AIR SWITCHING VALVE ASSEMBLY (See REMOVAL )
REMOVE STARTER ASSEMBLY
1. Disconnect the starter connector.
2. Remove the nut and disconnect the starter cable.
3. Remove the bolt and disconnect the engine wire protector.
4. Remove the 2 bolts and starter.

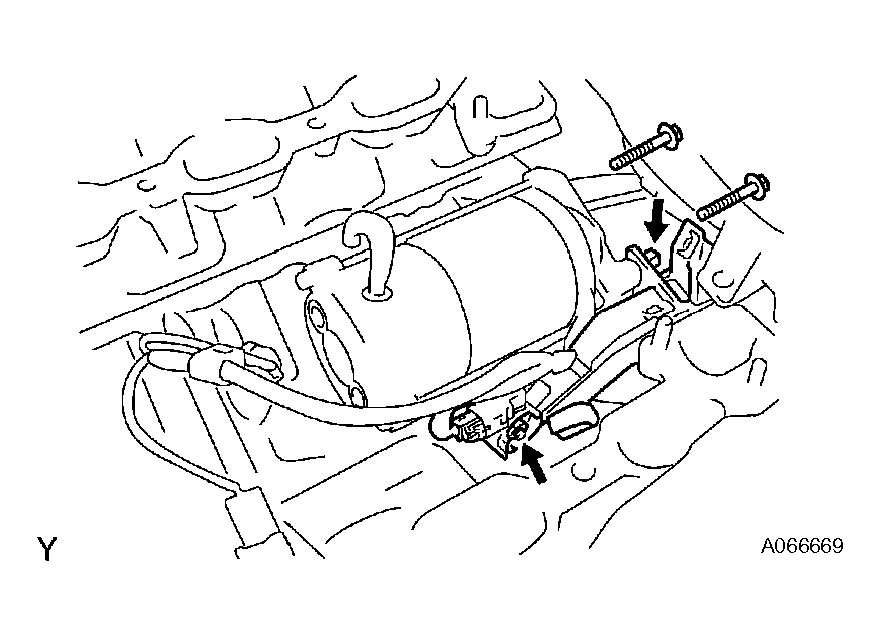

  Fig 2: Removing Starter Assembly
